CHAPTER 73
PAGE 13
MAINTENANCE MANUAL EXTRA 300SC
PAGE DATE: 1. August 2014
Side View
2
3

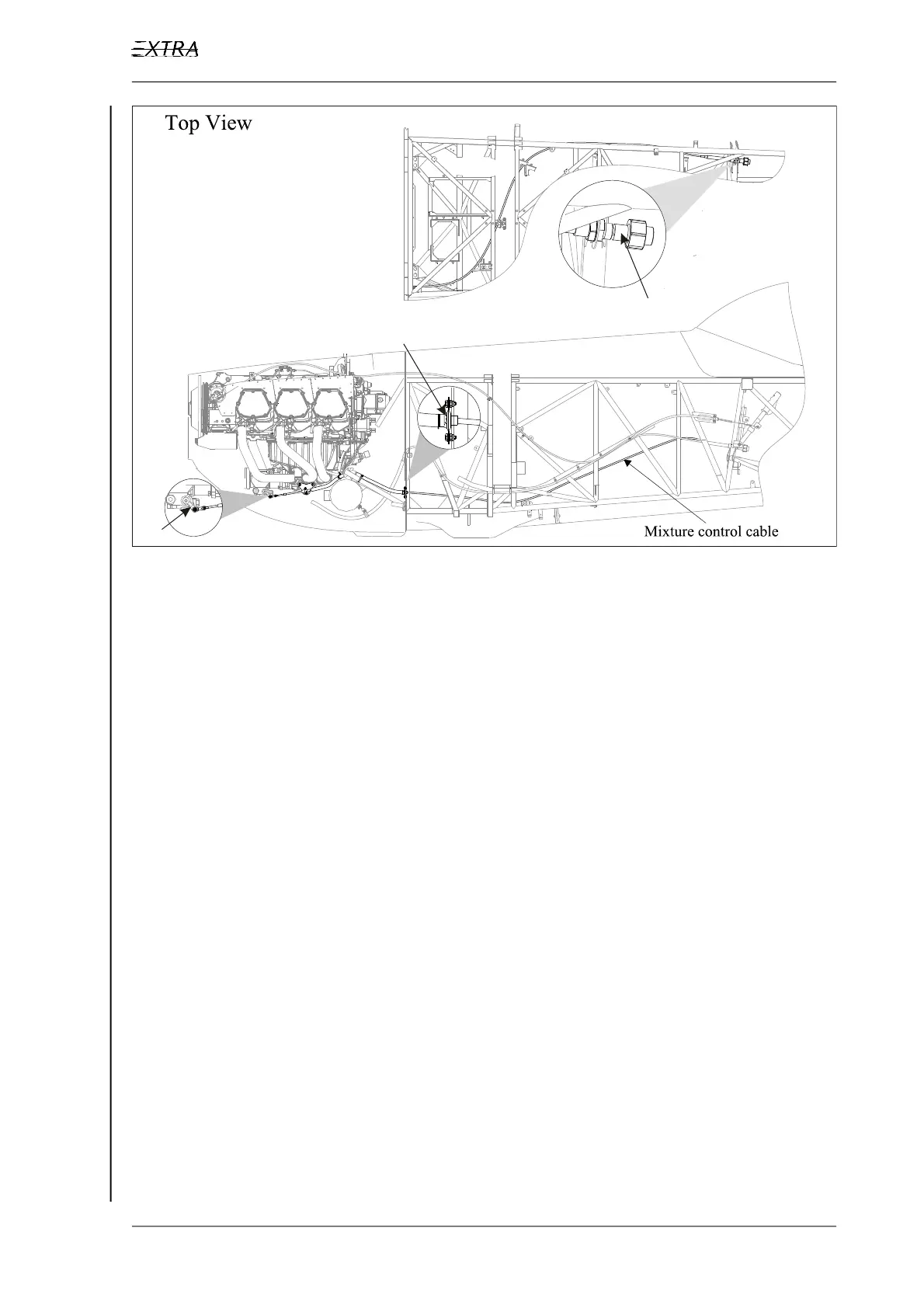

Figure 5 Mixture Control
73-20-21 Mixture Control Cable
The mixture control cable is a Vernier type cable connecting
the mixture control unit (1, Figure 5) with the mixture
actuator (3).
Refer to chapter 20 for general information about handling
control cables.
Removal
1 Ensure master switch is off.
2 Remove engine cowling per chapter 71.
3 Remove main and bottom fuselage cover per chapter 53.
4 Remove cotter pin, castle nut, washers and bolt from the
rod end (2, Figure 7) to mixer actuator attachment (3).
5 Loosen counter nut and remove the rod end (2) from the
mixture control cable.
