CHAPTER 73
PAGE 15
MAINTENANCE MANUAL EXTRA 300SC
PAGE DATE: 1. August 2014
Rigging
1 Move mixture control knob to the foremost position.
2 Check that the travel stop at the mixture actuator is reached,
and the over-travel of 5 mm [3/16"] (tolerance +/-1 mm
[1/32"]) is ensured at the mixture control knob (see distance
"e" on Figure 6).
fwd

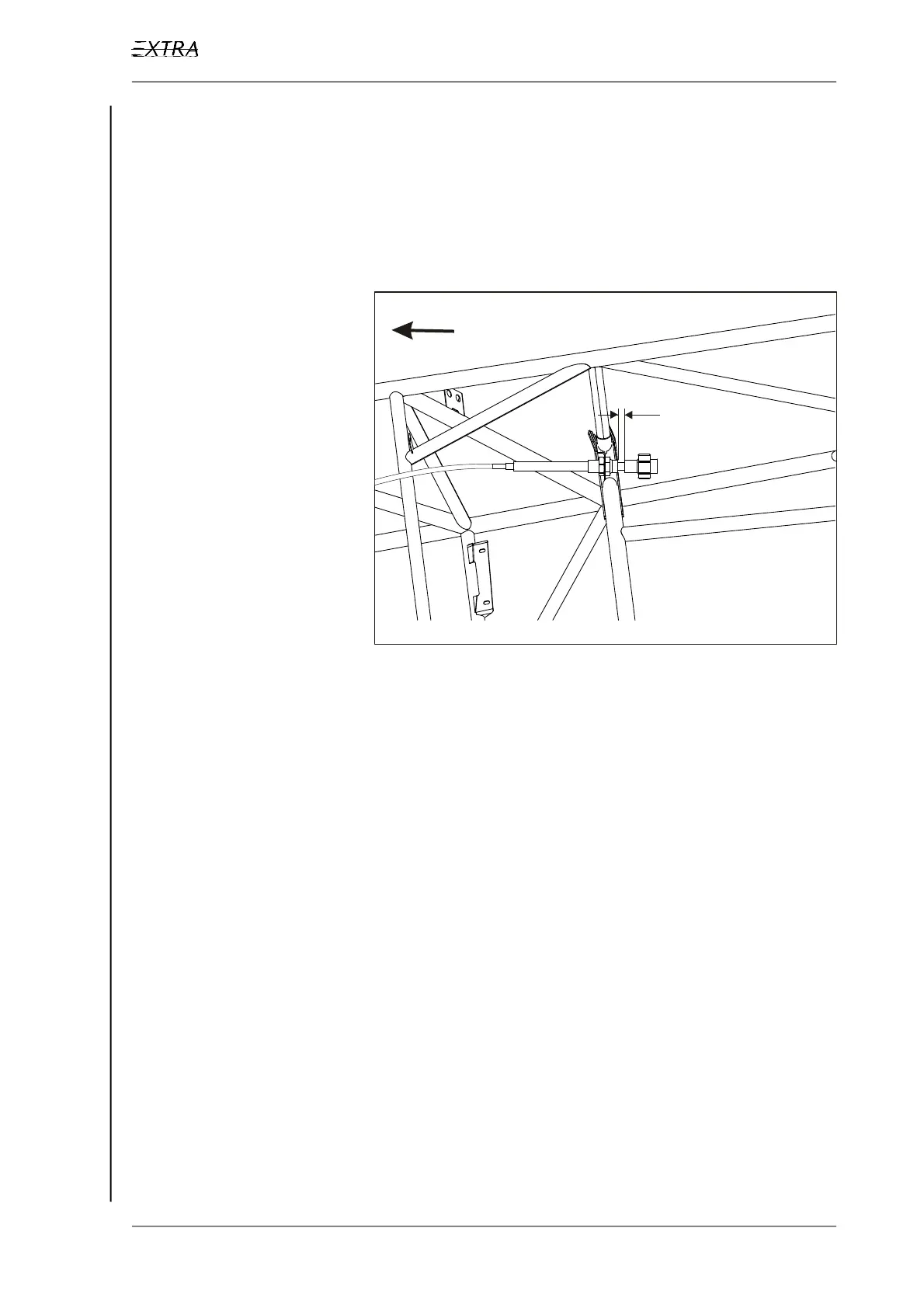

Figure 6 Over-travel at Mixture Control Unit
3 Check full travel.
4 If necessary adjust rod end (2, Figure 7) by the following
steps:
a Remove cotter pin, castle nut, washers and bolt from the
rod end (2) to mixture actuator (3) attachment.
b Loosen the counter nut and adjust rod end (2) by turning.
Ensure thread is visible in the inspection hole when fasten-
ing. Apply inspection lacquer on the counter nut.
c Reconnect the rod end (2) to the mixture actuator (3).
