CHAPTER 77
PAGE 3
MAINTENANCE MANUAL EXTRA 300SC
PAGE DATE: 1. August 2014
77-00-00 GENERAL
The following engine instruments are installed in the EXTRA
300SC:
1 tachometer
2 manifold pressure gauge
3 cylinder head temperature gauge
4 exhaust gas temperature gauge
Generally engine data is routed electrically from the engine
sensors (refer to figure 1) to the instruments. However, the
manifold pressure line is routed through the firewall and
directly fitted to the instrument. The engine data are indi-
cated to the pilot in command.

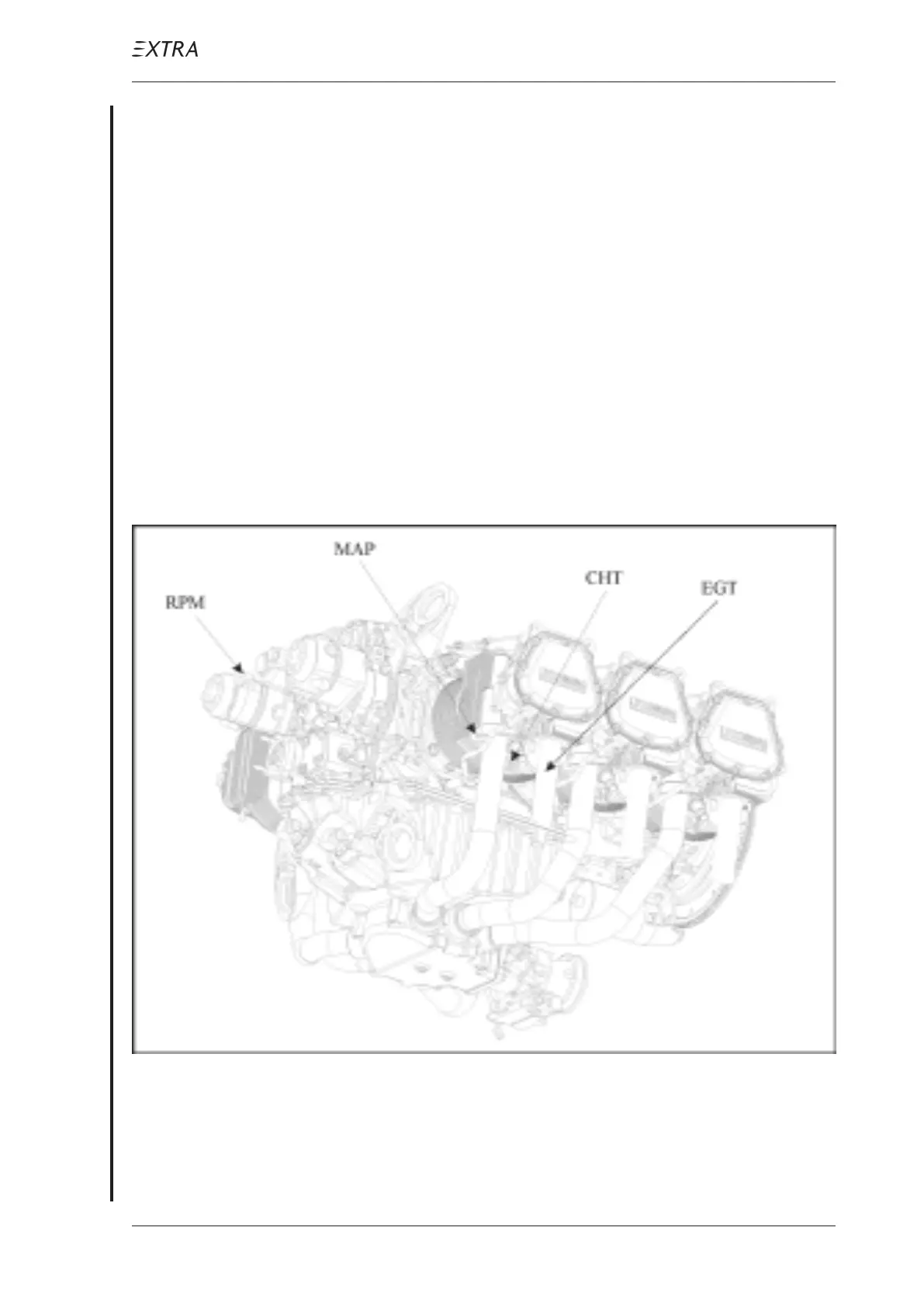

Figure 1 Engine Sensor Locations
