CHAPTER 79
PAGE 8
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 1. August 2014

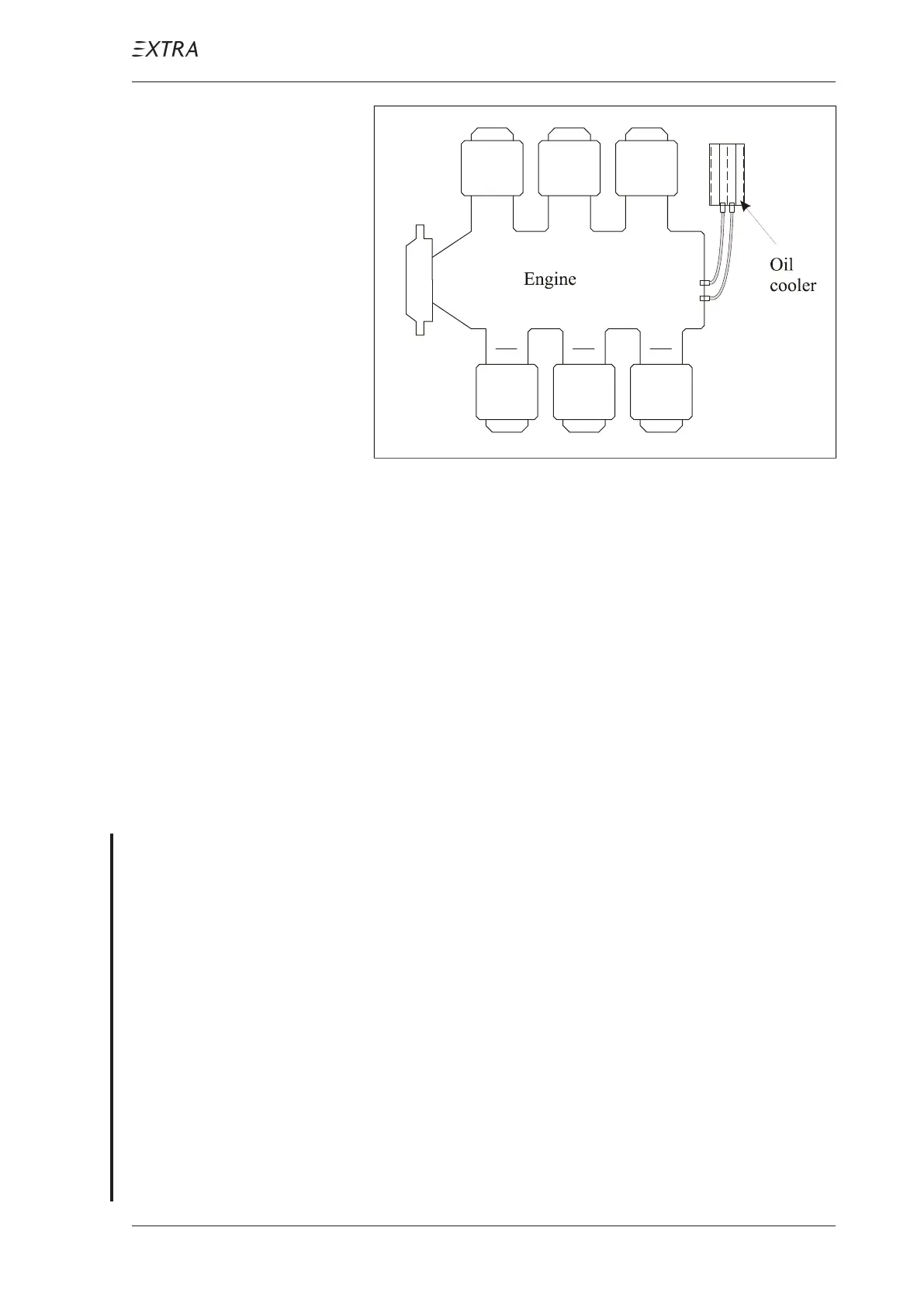

Figure 3 Oil Cooling System
79-20-02 Fittings
General information concerning fittings used in the EXTRA
300/SC you find in Chapter 20-10-08.
79-20-03 Flexible Hoses
General information concerning flexible hoses you find in
Chapter 20-10-07.
79-20-04 VAC2-6
On the vacuum pump drive of the Lycoming engine acces-
sory housing assembly a VAC2-6 adapter (B & C Specialty
Products Inc) is installed.
