CHAPTER 79
PAGE 11
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 1. August 2014
Top View
fwd
Firewall
2
1
4
3
4 VAC2-6
2 Fitting
3 Sense line
1 Oil pressure
sensor
Legend:
Engine
Oil cooler

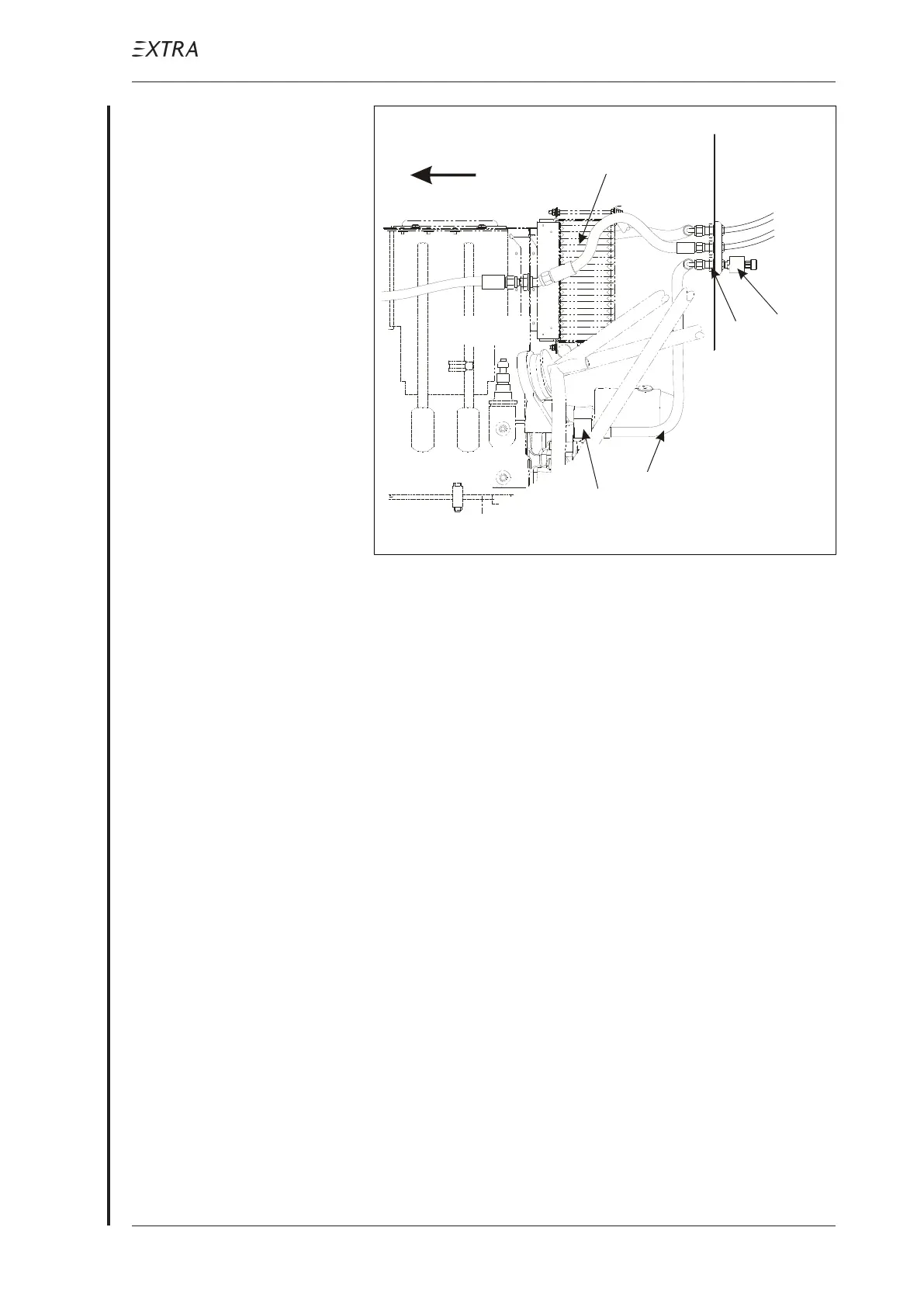

Figure 4 Oil Pressure Sensor & Wet Line
79-30-11 Oil Pressure Gauge
Oil pressure indication is combined with the oil temperature
indication in a single unit.
Removal/Installation
Refer to chapter 31.
79-30-12 Oil Pressure Wet Line
Removal/Installation
1 Remove upper cowling per chapter 71
2 Disconnect the sense wet line at firewall bulkhead fitting
and at engine fitting (refer to figure 4).
3 Install in reverse sequence of removal. Torque sense line
fittings with 15.3 to 16.9Nm (135 to 150 in.lbs.) and apply
inspection lacquer.
