CHAPTER 96
PAGE 5
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 1. August 2014

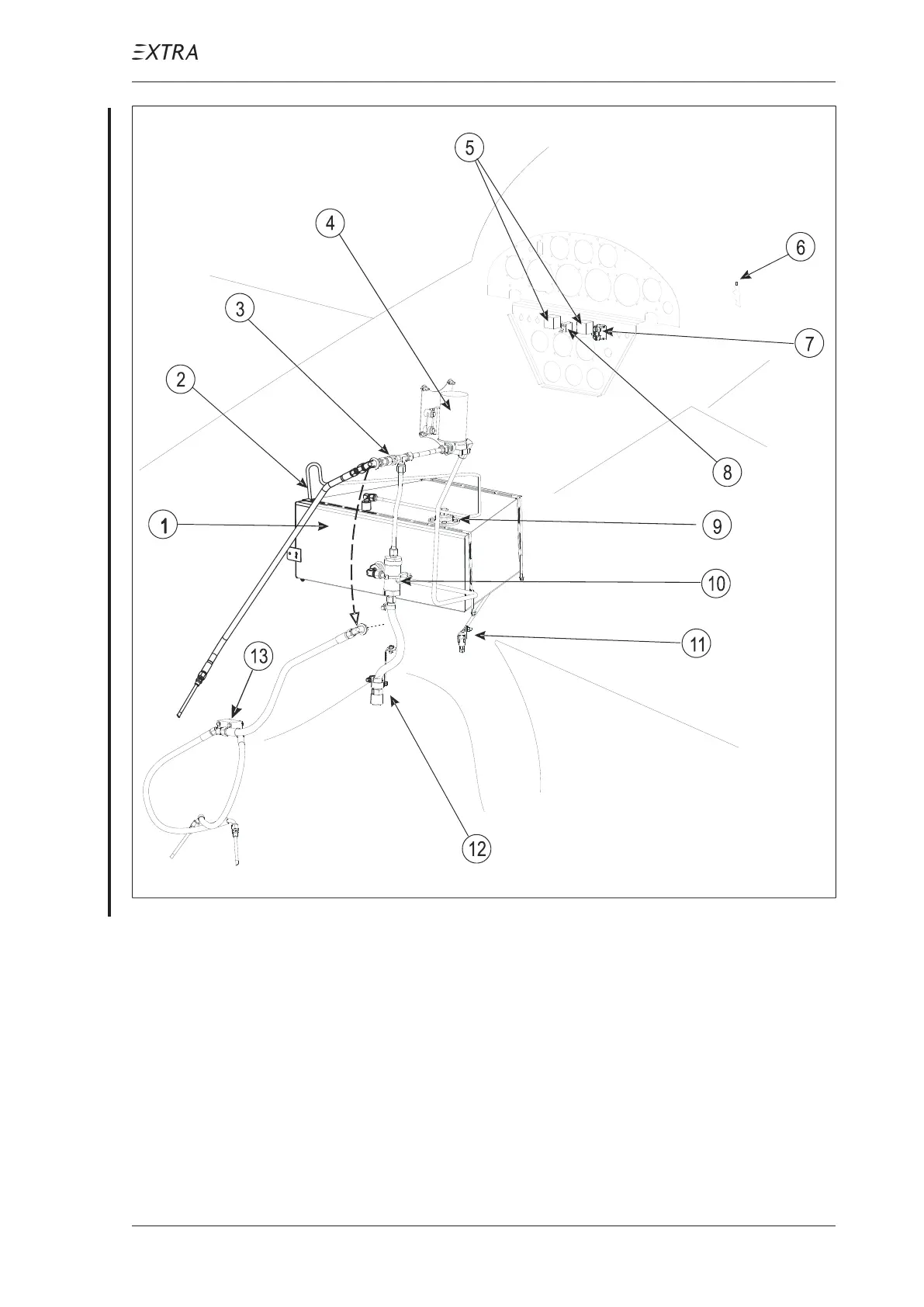

Figure 2 Smoke System (from SC023)
The same pump (normal polarity) injects the smoke oil from
the smoke oil tank through an overpressure/check valve and
the injector nozzle into the hot exhaust gas to generate
smoke.
For refilling the smoke oil tank the "SMOKE SYS" switch
has to be switched to the "REFILL"-position (pull to unlock).
For smoke system activation the "SMOKE SYS" switch has
to be switched to the "ARM" position. Then the smoke „ON-
OFF“ toggle switch can be used to control the smoke pump.
