Replacing AC Power Supplies in Summit Family Switches
Summit Family Switches Hardware Installation Guide
290
6 Carefully slide the power supply all the way into the power supply bay ( Figure 239). Push the
power supply in until the latch snaps into place.

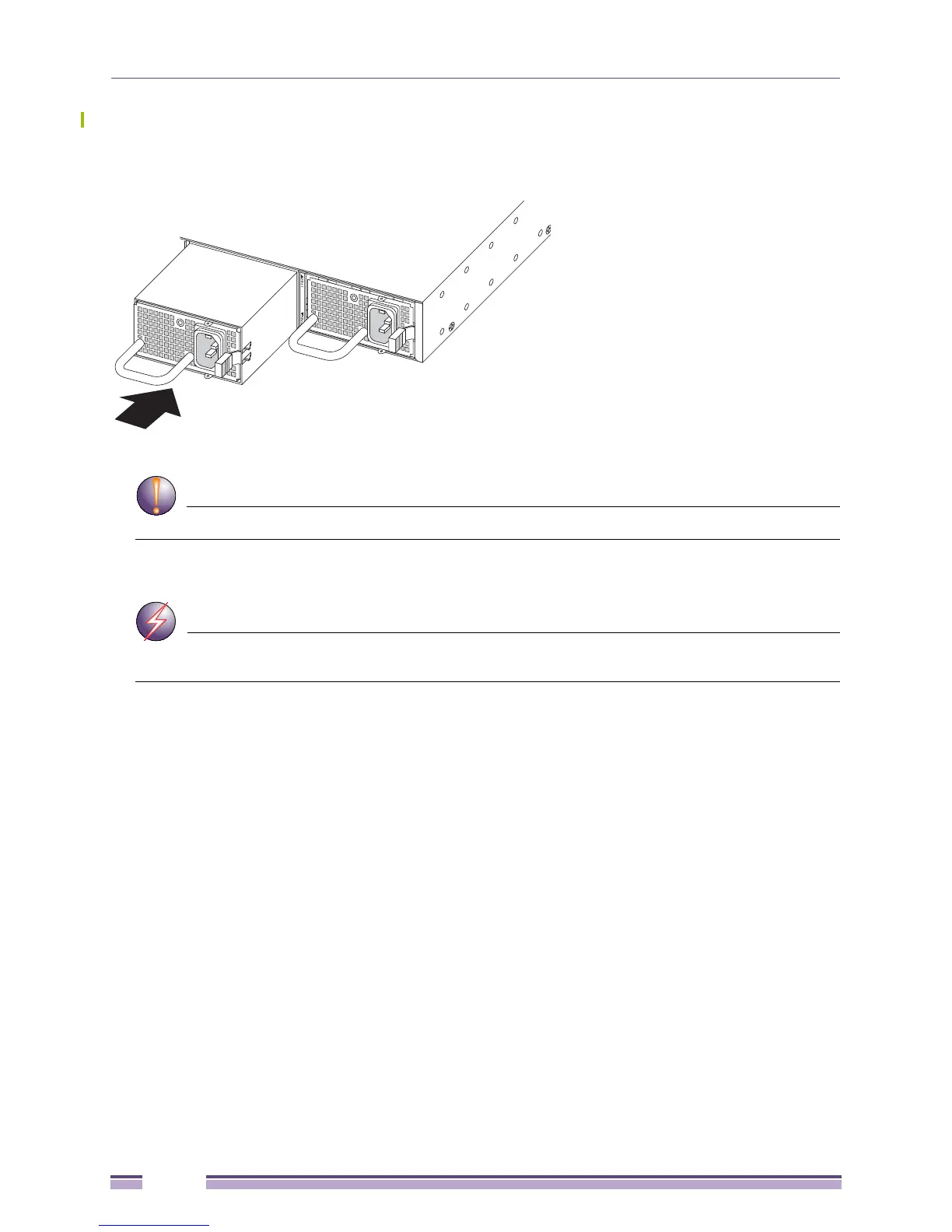

Figure 239: Installing A Summit X650 AC Power Supply
Do not slam the power supply into the switch.
7 Connect the power cord to the power supply and to a grounded AC power outlet.
Always be sure that the source outlet is properly grounded before plugging the AC power cord into
the AC power supply.
8 If the power supply is equipped with a power cord retainer, use the retainer to secure the power
cord to the power supply.
