Building a SummitStack Configuration
Summit Family Switches Hardware Installation Guide
180
To connect a SummitStack 64G/20G cable:
1 Connect the 64-Gbps connector to the VIM2 module as follows:
a Holding the cable connector with the release tab on top, align the connector with the stacking
port on the VIM2 module in the Summit X480 series switch (
Figure 131).

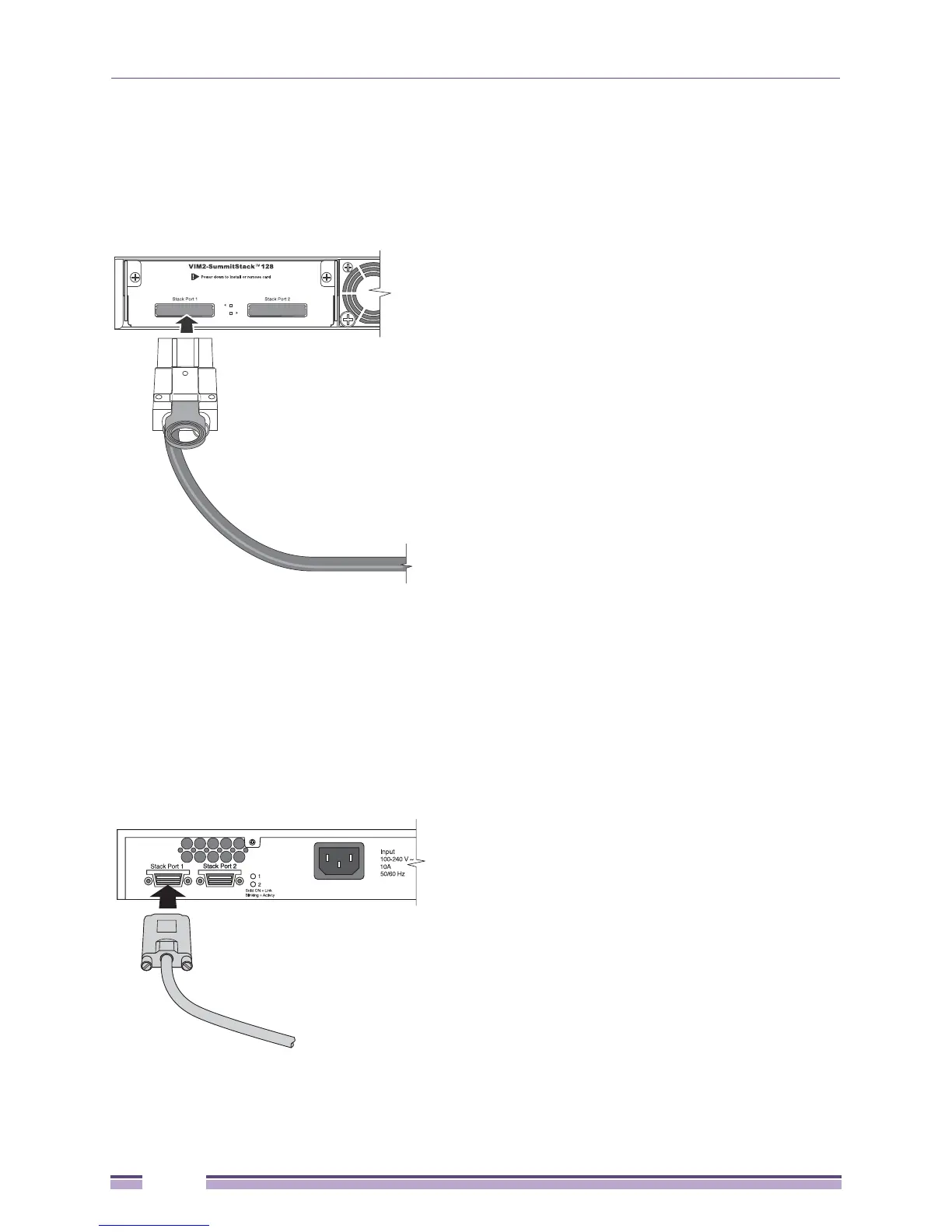

Figure 131: Connecting the 64G Connector
b Firmly press the cable connector into the stacking port until the spring latch on top of the
connector clicks into place.
2 Connect the 20G connector as follows:
a Align the cable connector with the stacking port connector on the back of the switch (Figure 132).
b Firmly press the cable connector into place on the mating stacking port connector.
c Align and tighten the retaining screws on the cable connector.
Figure 132: Connecting the 20G Connector
ES4K037
