Confidential and proprietary information of Extreme Networks. © 2011 Extreme Networks, Inc.
All rights reserved. DRAFT. October 20, 2011
Installing Summit Family Switches
Summit Family Switches Hardware Installation Guide
186
To rack-mount a Summit switch:
1 Place the switch upright on a stable work surface.
2 Place a mounting bracket over the mounting holes on one side of the unit.
3 Insert the screws and fully tighten with a suitable screwdriver, as shown in
Figure 134.

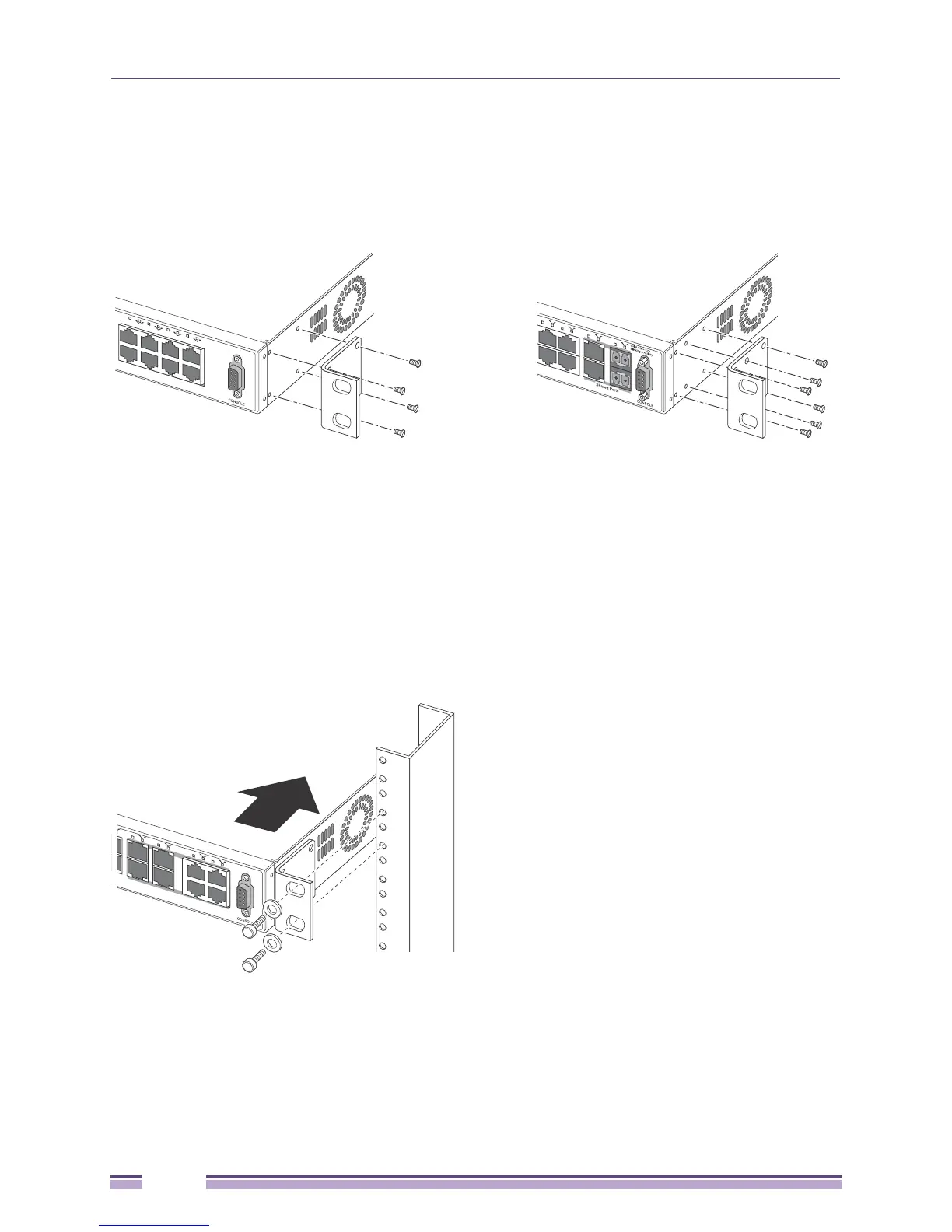

Figure 134: Attaching the Mounting Bracket
4 Repeat steps
2 and 3 for the other side of the switch.
5 Slide the switch into the rack (
Figure 135).
● Take care to load the rack so that it is not top-heavy. Start installing equipment at the bottom of
the rack and work up.
● Do not cover vents that would restrict airflow. Leave half a rack space between the units for
adequate ventilation.
Figure 135: Installing a Switch in a Rack
‘
6 Secure the switch with suitable screws (not provided).
7 Connect the switch to the redundant power supply (if applicable). For instructions to install and
connect redundant power supplies, see
Chapter 2, “Summit Power Supplies.”
34 36
35
38
37
40
39
42
41
44
43
46 48
45
47
50
49
50X
49X
SH_245_S150
Summit X350, X450, X450a,
and X450e, series
Summit X150 and X250e series
