• Extension bracket—This bracket connects to the rack rail to lengthen it for a 600mm-900mm
configuration.
• Long rear bracket—This bracket replaces the short rear bracket to modify the slide rail for a
600mm-900mm configuration.

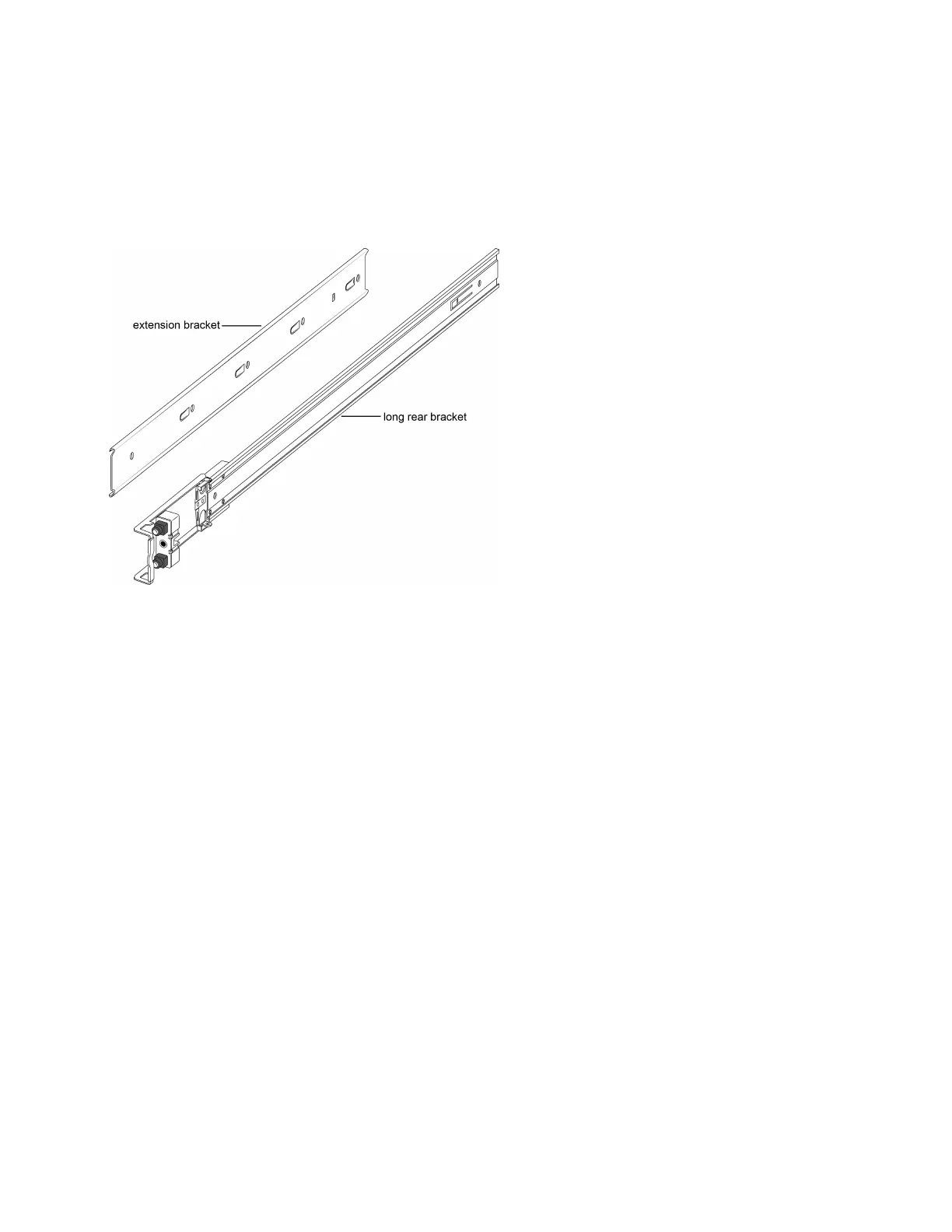

The following figure shows the extension bracket and the long rear bracket. Both are used for a
600mm–900mm configuration.
Figure 9: Extension and long rear brackets
Locks and latches
This section describes the locks and latches on the rails and where they are located.
The thumbscrew lock and the two release latches are on the chassis rail as shown in the following
figure
