Extreme Networks Virtual Services Platform 7200 Series User Manual

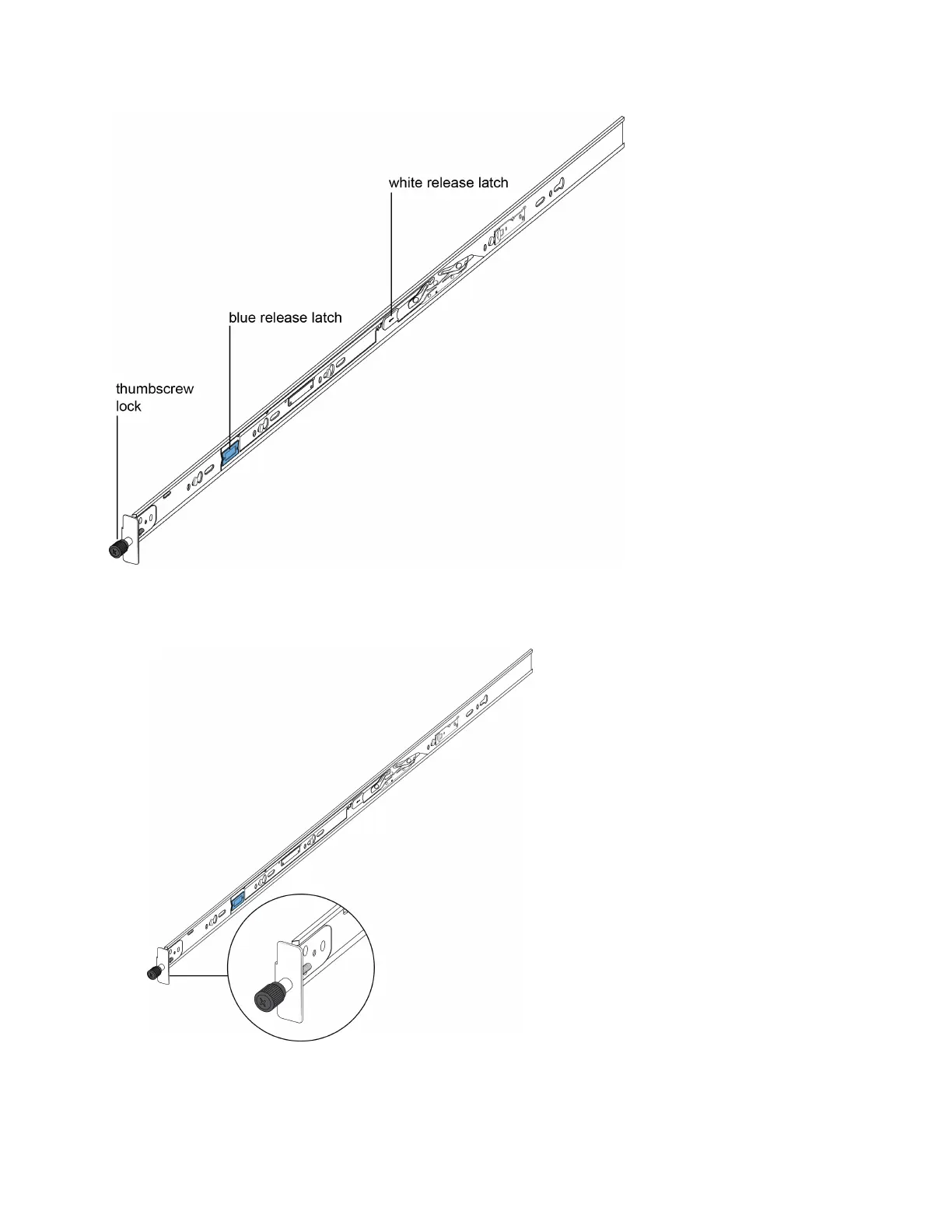

Figure 10: Thumbscrew lock and release latches
• Thumbscrew lock—This feature is on the front end of the chassis rails, and is used to lock the
switch in the home position of the equipment rack.
Figure 11: Thumbscrew lock
Installing the switch in an equipment rack
March 2020 Installing the VSP 7200 Series 45

Extreme Networks Virtual Services Platform 7200 Series Specifications

General

Brand	Extreme Networks
Model	Virtual Services Platform 7200 Series
Category	Switch
Language	English
