Installing slides in a 600mm-900mm equipment rack
Use the following procedure to install your switch in an equipment rack with a depth between
600mm and 900mm.
Before you begin
Note:
The Slide Rack Mount Kit is fairly complex due to its versatile design. To make your installation
easier, read the Inventory of slide components on page 41 section to familiarize yourself with
the slide components and features.
Procedure
1. Disconnect the power cord from the switch.
2. Open the shipping carton.

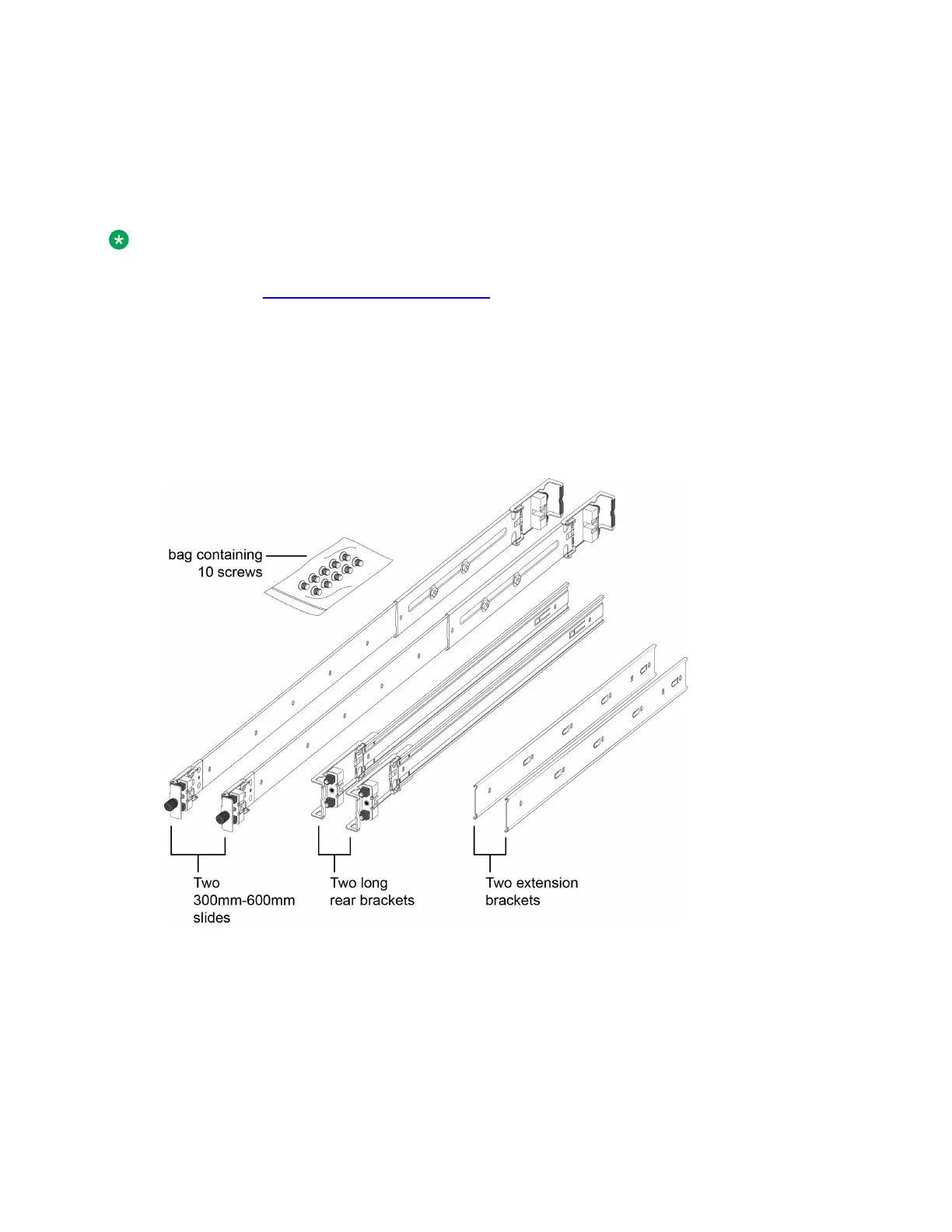

The 300mm-600mm slides are the default configuration. Use the remaining parts in the
carton for converting the 300mm-600mm slides to 600mm-900mm slides.
3. Use the following steps to detach the chassis rail from the slide’s rack rail:
a. Loosen the thumbscrew lock on the front of the rail.
Installing the switch in an equipment rack
March 2020 Installing the VSP 7200 Series 57
