Note:
Using the bag with ten M4 screws, attach the extension bracket to the rack rail by
inserting the screws from the rack rail side and then into the extension bracket.

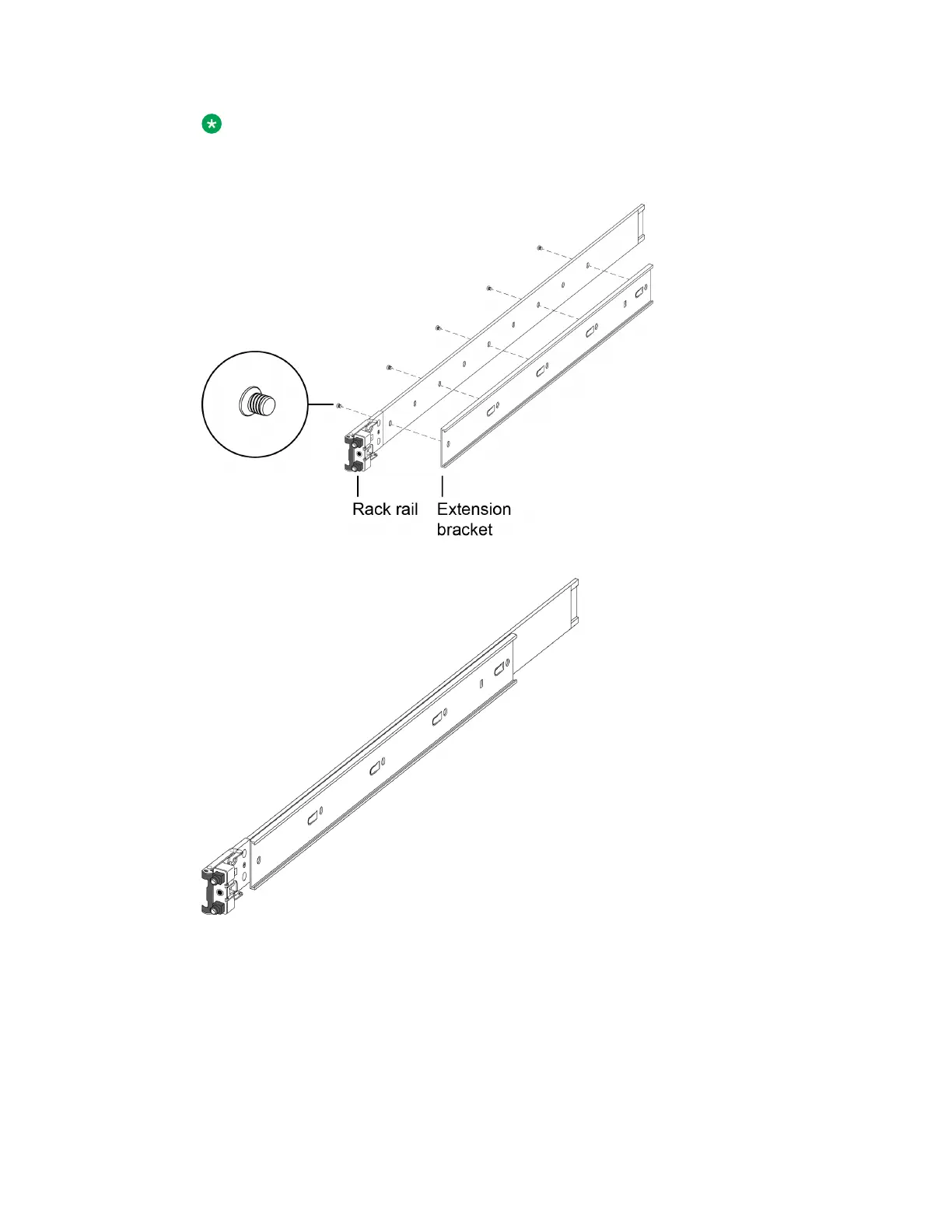

The following figure shows the extension bracket attached to the rack rail.
Installing the Virtual Services Platform 7200 Series
March 2020 Installing the VSP 7200 Series 64
