Extreme Networks VSP 4900 Series Hardware Installation Guide

11 Replacing a Versatile Interface
Module in a VSP 4900 Series Switch
This section describes how to replace versatile interface modules (VIM5) in the front slot of a VSP 4900
switch.
You need the following tools and materials to install a VIM:
•
ESD-preventive wrist strap
•
#1 Phillips screwdriver (for clock module) or flat-bladed screwdriver (for all other VIM modules)
Caution
Extreme Networks VIMs are not hot-swappable. Disconnect power to the switch before
removing an installed VIM or installing a new VIM.
The replacement procedure is the same all VSP 4900 VIM5s.
To replace a versatile interface module:
1 Attach an ESD-preventive wrist strap to your wrist and connect the metal end to an appropriate
ground point on the rack.
2 Disconnect the switch power.
3 Remove the existing VIM:
a Remove the retaining screws holding the existing module in place.
b Save the retaining screws to secure the new module in the switch.
c Pull the old module out of the module slot.
4 Remove the new VIM from its anti-static packaging.
5 Install the VIM in the switch:
a Carefully slide the module into the switch.
b Insert and tighten the retaining screws you removed in step 3.

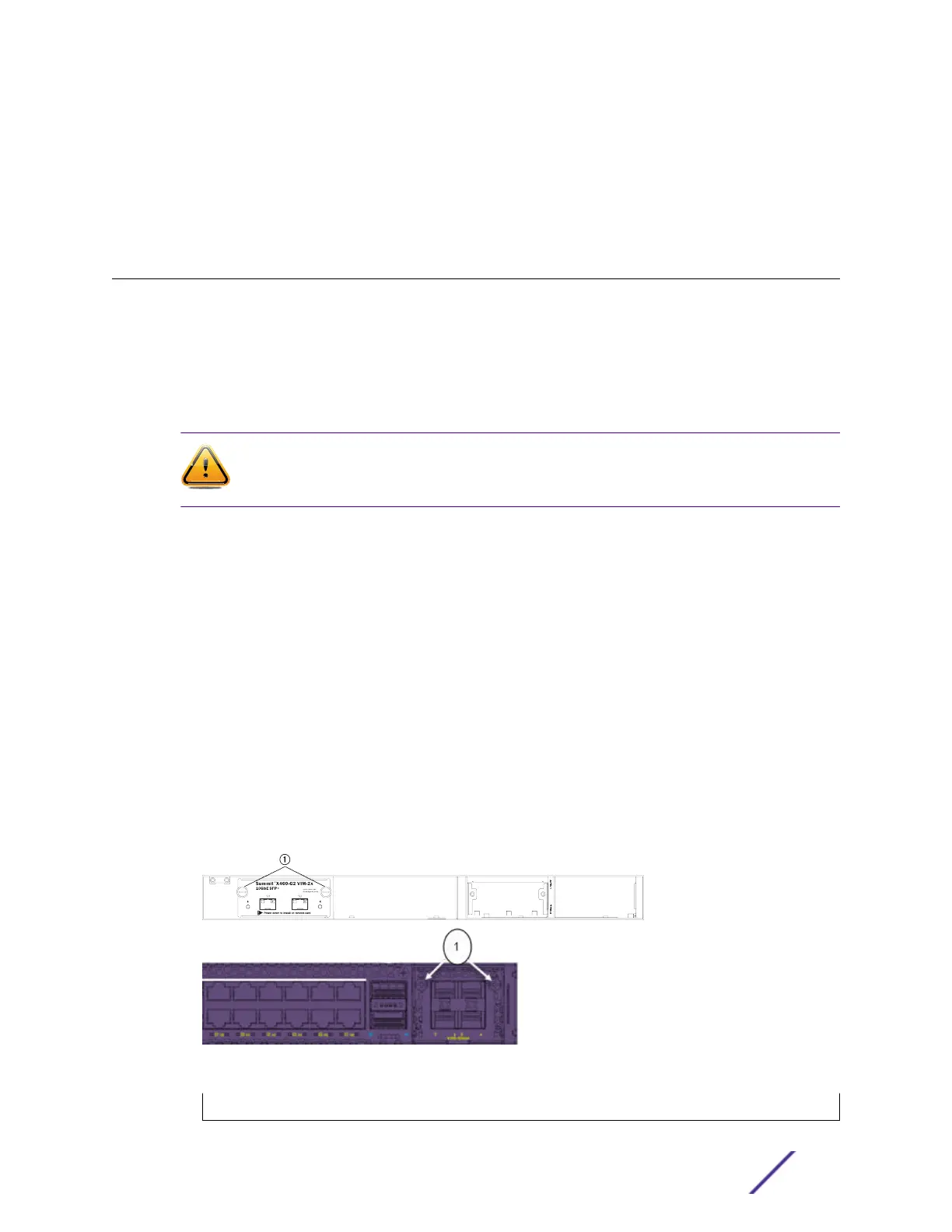

Figure 25: Tighten Screws on the Inserted VIM5 Module
1 = VIM/VIM5 module retaining screw locations
VSP 4900 Series Switches: Hardware Installation Guide 56
