IPCP Pro Series • Hardware Features and Installation 18
G
Relay ports — Relay ports provide control for power, for screen or projector lifts,
window coverings, and similar items, when trigger events occur.
RELAYS
2143CC
RELAYS
1 2
5 6
3 4
7 8
RELAYS
5678
2134
Rear Panels
Front Panel
To Room
Control
Equipment
To Room
Control
Normally
Open (2)
Common
Normally
Open (1)
Common
Relays
• Connect devices for contact control.
• Do not exceed a total of 24V at 1A for each port.
Relay LEDs
Light when the corresponding
relays are closed (tied to GND).
or
Common
Relay 2
All relays
are
normally
open.

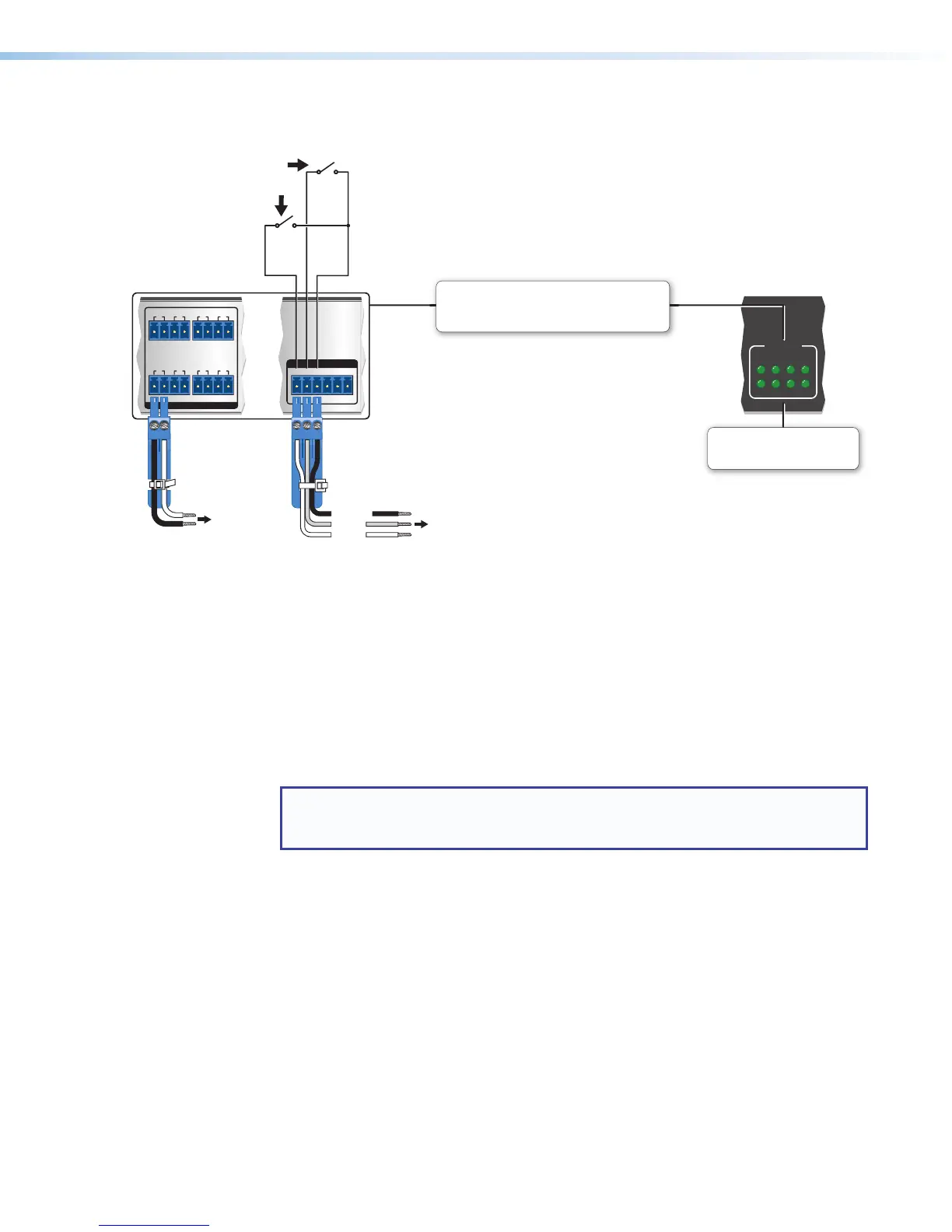

Figure 14. Cabling Relay Ports
These relay contacts may be used to control any equipment as long as the contact
specifications of a total of 24volts at 1ampere are not exceeded for each port. These
relays are normally open by default.
When activated, the open contacts close. They can be set up to operate in one of two
ways:
• Latching (brief or indefinite period contact) (press to close, press to open), or
• Pulsed (timed cycle) (press to close, timeout to open, with automatic repeat).
In pulse mode the default timeout period (hold time) is ½ second (500 ms). Use Global
Configurator to change the length of the timeout period.
NOTE: The pulse function is absolute: it always sets the relay state to closed, times
out (briefly), then opens the contact. It overrides the previously selected setting
(on state, off state, or toggle).
