IPCP Pro Series • Introduction 2
About the IPCPProSeries
The IPCPProSeries Control Processors integrate Ethernet connection into AV systems to
allow users to remotely control, monitor, and troubleshoot AV equipment, including display
devices and switchers, source devices, and various other items such as lights, a projector
lift, or a screen motor. They can be used in a distributed control system environment or as
stand-alone control processors. Some models also have the ability to power devices that
accept 12VDC.

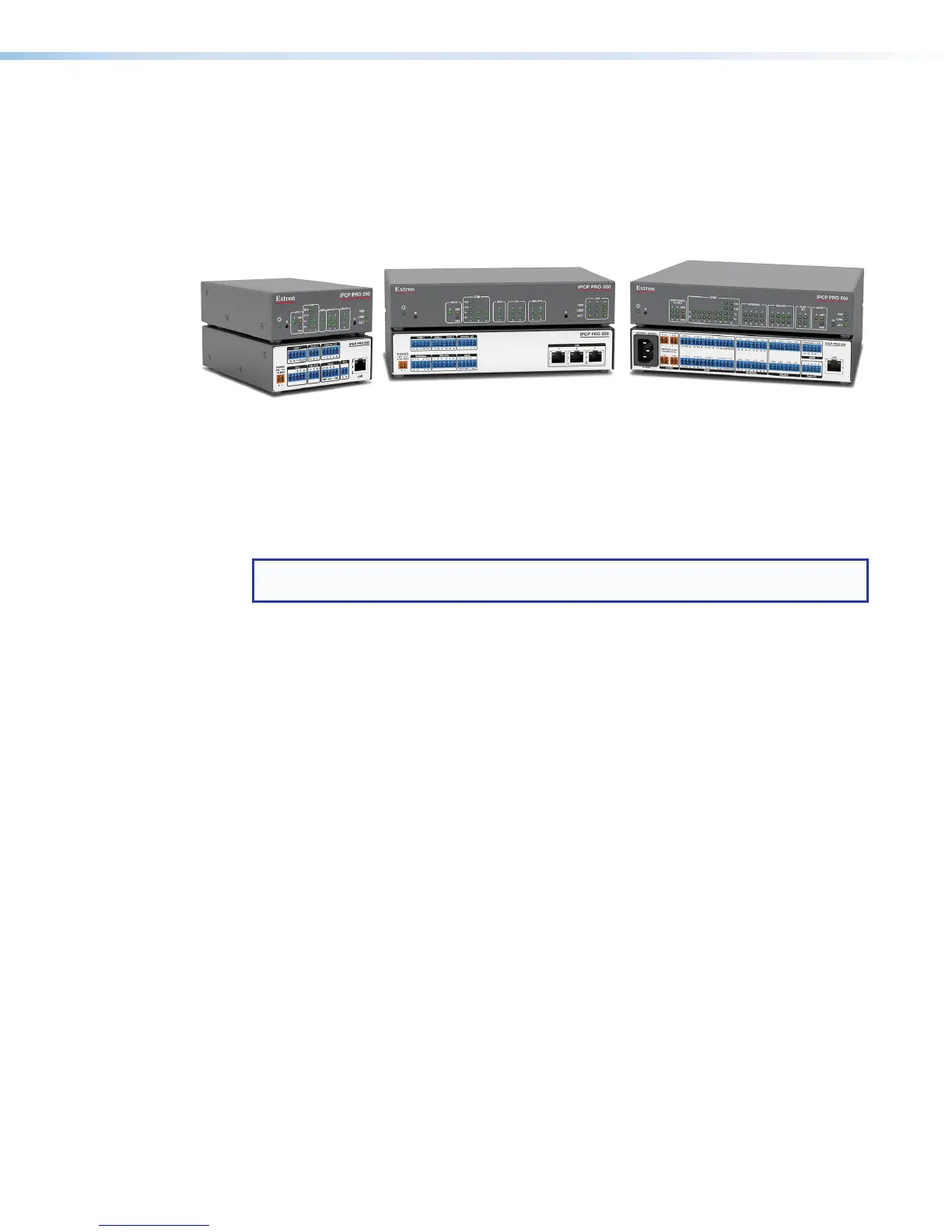

Figure 1. IPCPPro250 (left), IPCPPro350 (center), IPCPPro550 (right)
An IPCPProSeries control processor is the centerpiece of a control system that features
Extron TouchLinkPro Touchpanels. The IPCP supports multiple TouchLink Pro touchpanels
over a standard Ethernet network. The touchpanels provide a convenient interface for
controlling the IPCP, which, in turn, controls the other system components. Another option
is to use a third-party device such as a touchpanel or tablet in conjunction with Extron
LinkLicense.
NOTE: GUI Designer is used to design the user interface layout of any Extron
TouchLinkPro touchpanel or third-party touch interface that is used with the IPCP.
The IPCP is configured completely via Global Configurator software. Once you have
set up how you want it to work (set up IP addresses and functions, assigned drivers to
ports, configured relays and digital input or output), that information is saved to a project
configuration file that is built and uploaded into the IPCP and to any optional TouchLink
touchpanels.
The IPCPProSeries integrates seamlessly with Extron GlobalViewer Enterprise (GVE)
software and the GlobalViewer Web-based AV resource management tool for remote control
applications.
Features
General features
Flexible options for device control — The IPCP offers RS-232 and infrared (IR) control,
TCP/Ethernet control and monitoring, relays, and either digital I/O (digital input or digital
output) or flex I/O (analog input or digital input or digital output) controls. Some models also
offer independently switched 12VDC power output or a port for volume control of an Extron
audio amplifier.
Rack mountability — All models except the IPCPPro350M are housed in a standard 1U
high enclosure which is easily rack mounted or can be installed in or under furniture with an
optional mounting kit.
Universal power system compatibility
The IPCP Pro 550 includes an internal power supply that accepts 100-240 VAC,
50-60 Hz input.
Other models include a 12VDC external power supply that accepts 100-240 VAC,
50-60 Hz input.
Some models also offer additional LAN connections for controlling AV products on a
subnetwork that can be separate from the main corporate network.
Figure 2. IPCPPro555 (Left), IPCPPro350DN (Right)
Save this text for when the eBUS ports are supported.
or Extron eBUS button panels
connected to the eBUS port on
the control processor.
A control processor can learn IR signals from remote controls
to communicate with sources such as DVD players. Users can
create their own device drivers (IR) or go to the Extron Website
(www.extron.com) to obtain device drivers.
eBUS material will be reserved for later releases, once the eBUS features are implemented.
All models include Extron eBUS ports, which allow a variety of control accessories (known
as “endpoints”) to be connected to a single control processor. eBUS accessories include
an array of button panels, and contact input and relay devices. Endpoints are automatically
recognized by the control processor and can be added or removed at any time.
