ISM 824 Multiswitcher Software, cont’d
ISM 824 Integration Scaling Multiswitcher • ISM 824 Multiswitcher Software
5-22
2. Scroll to and click on the desired preset number. The preset field shows the
number selected.
3. Click Recall to recall the selected preset.
Starting auto image
To start auto image, do the following:
1. Click Auto Image. This automatically sizes and centers the selected input
image to fill the screen.
Freezing an image
To freeze an image for review or logo use, do the following:
1. Click Freeze. The image is frozen and all Picture Adjustments fields are
grayed out.
Video Scaler
Use this page to congure the Video Scaler output card (for any input) for the
following settings:
• create an input to output tie
• picture adjustments — image color, tint, brightness, contrast, detail, horizontal
and vertical positioning, horizontal and vertical sizing, and zoom
• output congurations — resolution, output type, output rate, and sync polarity
• advanced conguration — top and bottom blanking, blue mode, 2:2 pull down,
edge smoothing filter, enhancement mode, auto memory, and auto image
• user presets (presets #1-3) — save and recall
• input presets (presets # 1 through 128) — save and recall
• Start Auto image
• Freeze (image)

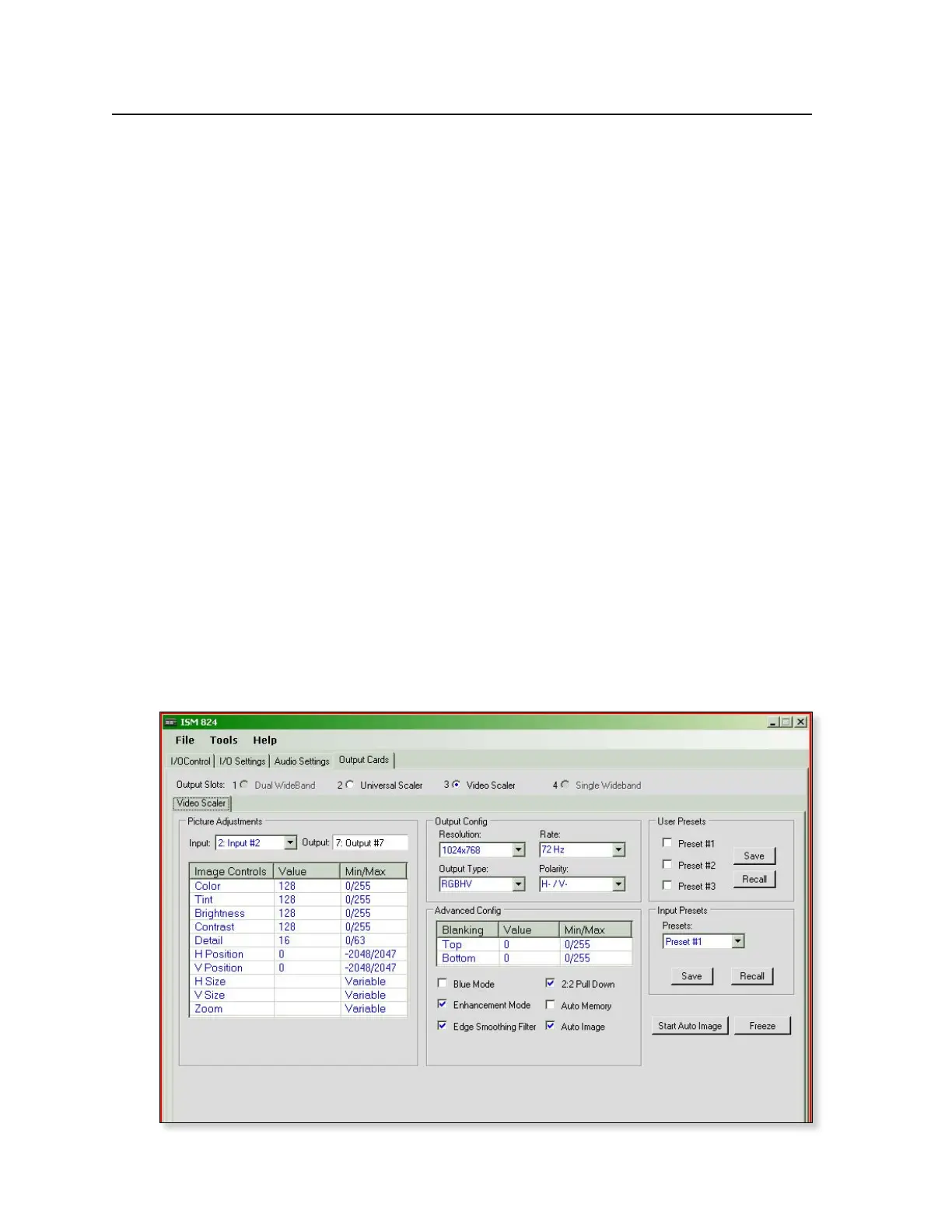

Figure 5-31 — Current Video Scaler output card settings
