ISM 824 Integration Scaling Multiswitcher • HTML Operation
Video Scaler — ISM VS
The page for the Video Scaler is shown below:

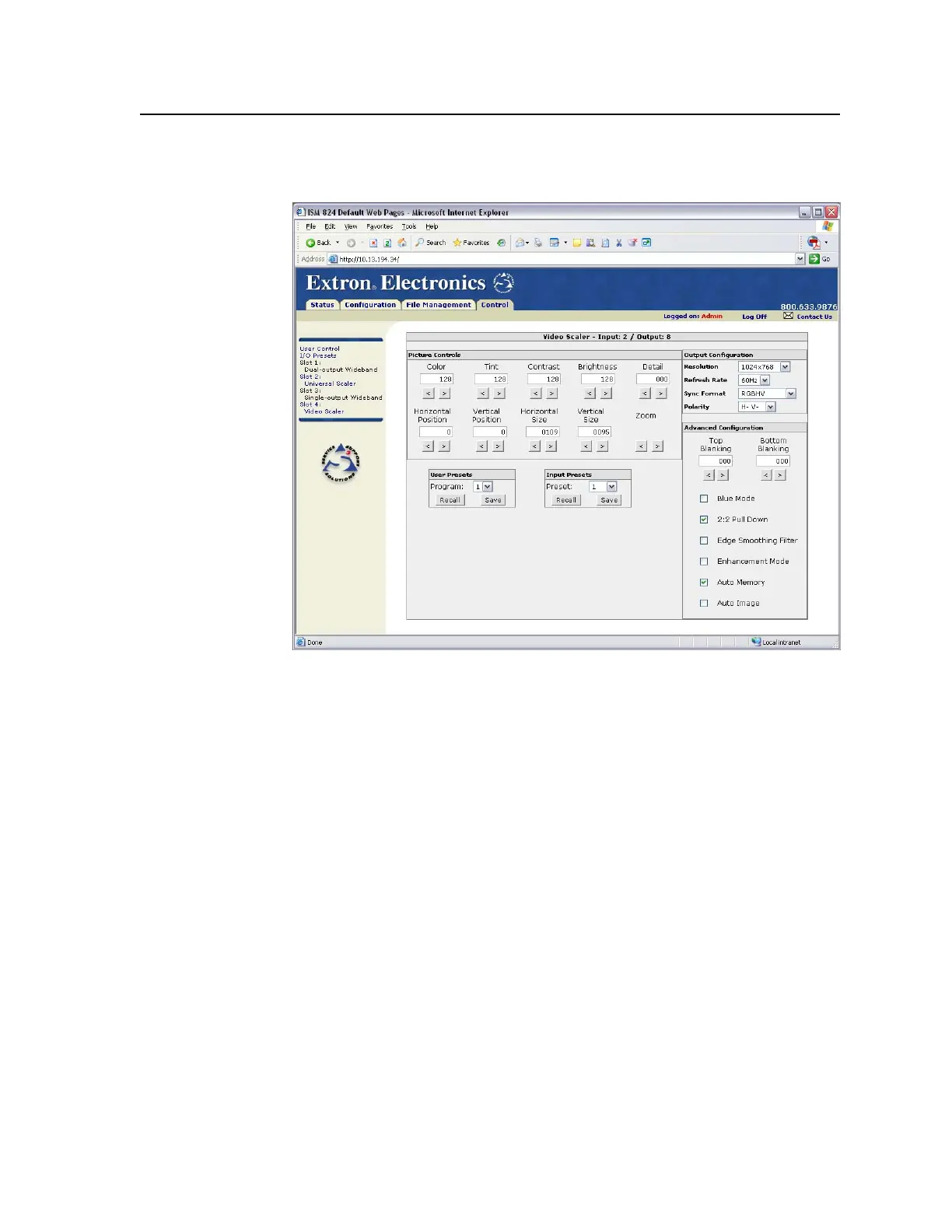

Figure 6-18 — Video Scaler output card configuration screen
On the top of this page, the input number that is currently tied to the card’s output
tie is shown (see figure 6-18).
Also from this page adjustments to the following can be made;
• picture controls (color, tint, contrast, brightness, detail, horizontal and vertical
position and size, and zoom)
• user and input presets can be saved and/or recalled
• output conguration parameters (resolution, refresh rate, sync format, and
polarity) can be changed
• advanced conguration settings (top and bottom blanking settings, blue mode,
2:2 pull down, edge smoothing filter, enhancement mode, auto memory, and
auto image) can be turned on or off.
To make picture adjustments do the following:
1. Within the Picture Controls section, select the setting that is to be changed,
and click on either the left arrow (<) to decrease the value, or on the right
arrow (>) to increase the value, one step at a time. After every click the page
refreshes and shows the new value. The device is updated to the new setting.
N
Alternatively, if the new setting value is known, enter it directly into the field,
and press enter. The page refreshes, shows the new value, and the device is
updated.
