Extron electronics TLP Pro 1022M - Audio Screen; Advanced Screen

Audio
Press the Audio button in the navigation panel at the top of the screen to open the Audio
screen.
Status
Display Audio Advanced Exit
Network
Click
100
50
0
Sound
100
50
0
100
50
0
Master

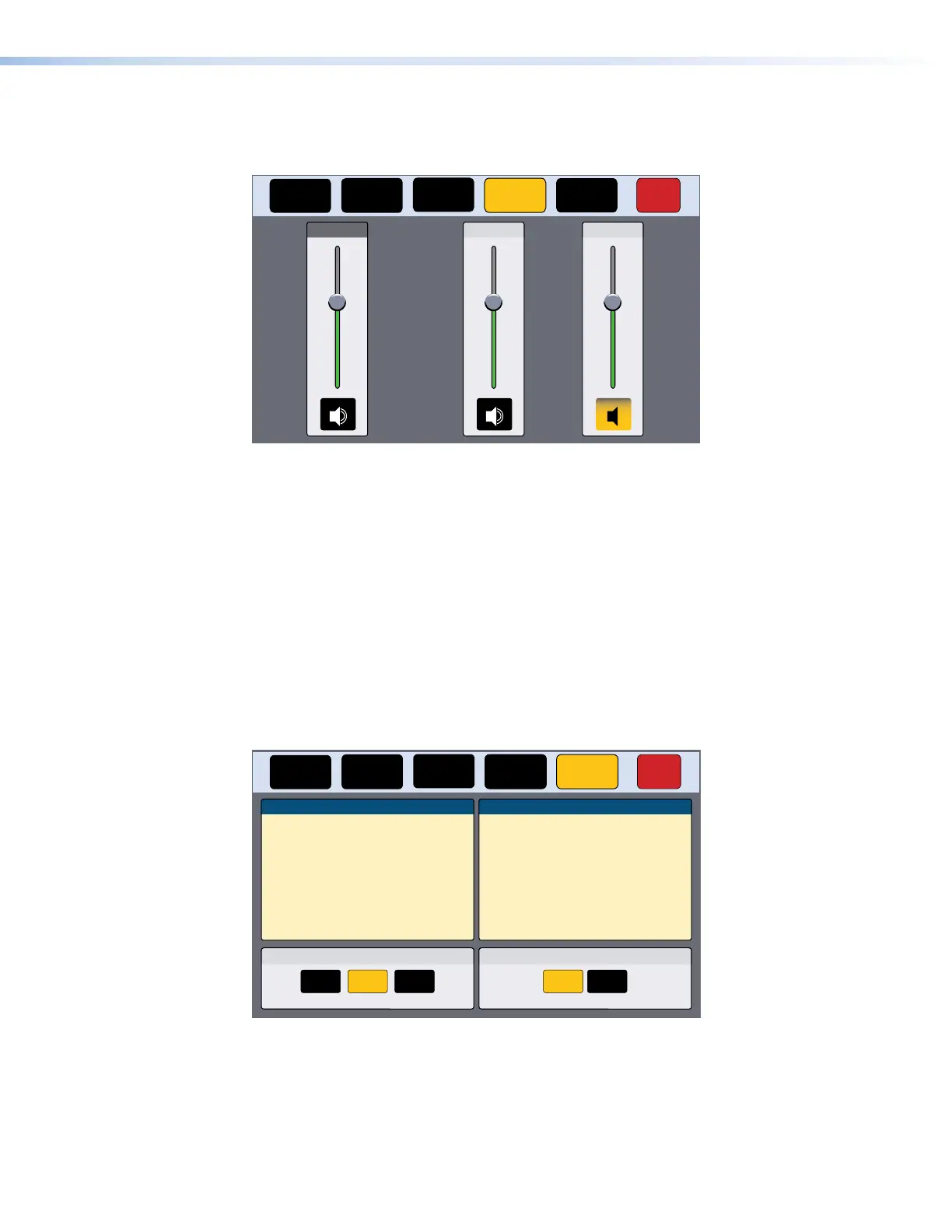

Figure 10. Audio Screen
On the Audio screen, use the slider controls to adjust the Master, Click, and Sound volume
settings.
• Master — sets the maximum volume for all the other sound volume settings. For example,
if the master volume is set to 80 (80 percent of maximum), even when the Sounds volume is
set to 100, it is equivalent to only 80 percent of maximum.
• Click — sets the volume for audible feedback that accompanies events such as a screen
button being pressed.
• Sound — sets the volume of audio from any audio file playback.
Click on the speaker icon at the bottom of each panel to toggle between audio on and audio
mute. The
Sound audio is muted in figure 10.
Advanced
Press the Advanced button in the navigation panel at the top of the screen to open the
Advanced screen.
Status
Display Audio Advanced Exit
Network
System
Touchpanel Name:
Controller Name:
Controller IP:
TLP-AB-CD-EF
IPCP 505 - North Hall
192.168.254.11
Global Configurator Project
Name:NorthHall
Version: 01.00.1383
Creation Date:2/15/2016 2:48:20 PM
Revision Date:2/16/2016 4:15:45 PM
-------------------------------------------------------------
Communication LED
Enable Disable
Menu PIN
Off ChangeOn
GUI Project
Name:
Resolution:
Creation Date:
Revision Date:
Version:
Jet Video Conference System
2/12/2016
02/12/2016
1024x600
01.00.16
Project Size: 12 MB
115 MBStorage Size:
Project Usage: 0%
Figure 11. Advanced Screen
System and GUI Project Panels
These panels are read only, providing information about the system, the Global Configurator
Project, and the GUIDesigner Project.
TLP Pro 1022 Series • On-screen Menus 12
