SINGLE PHASE BRANCH CIRCUIT MONITORING
Branch circuits are commonly used for lighting and receptacles throughout the building. These circuits
can be identified by a single-pole breaker in the electrical panel. Cabling typically consists of black
(line) and white (neutral) conductors with a bare copper (or green) ground conductor.

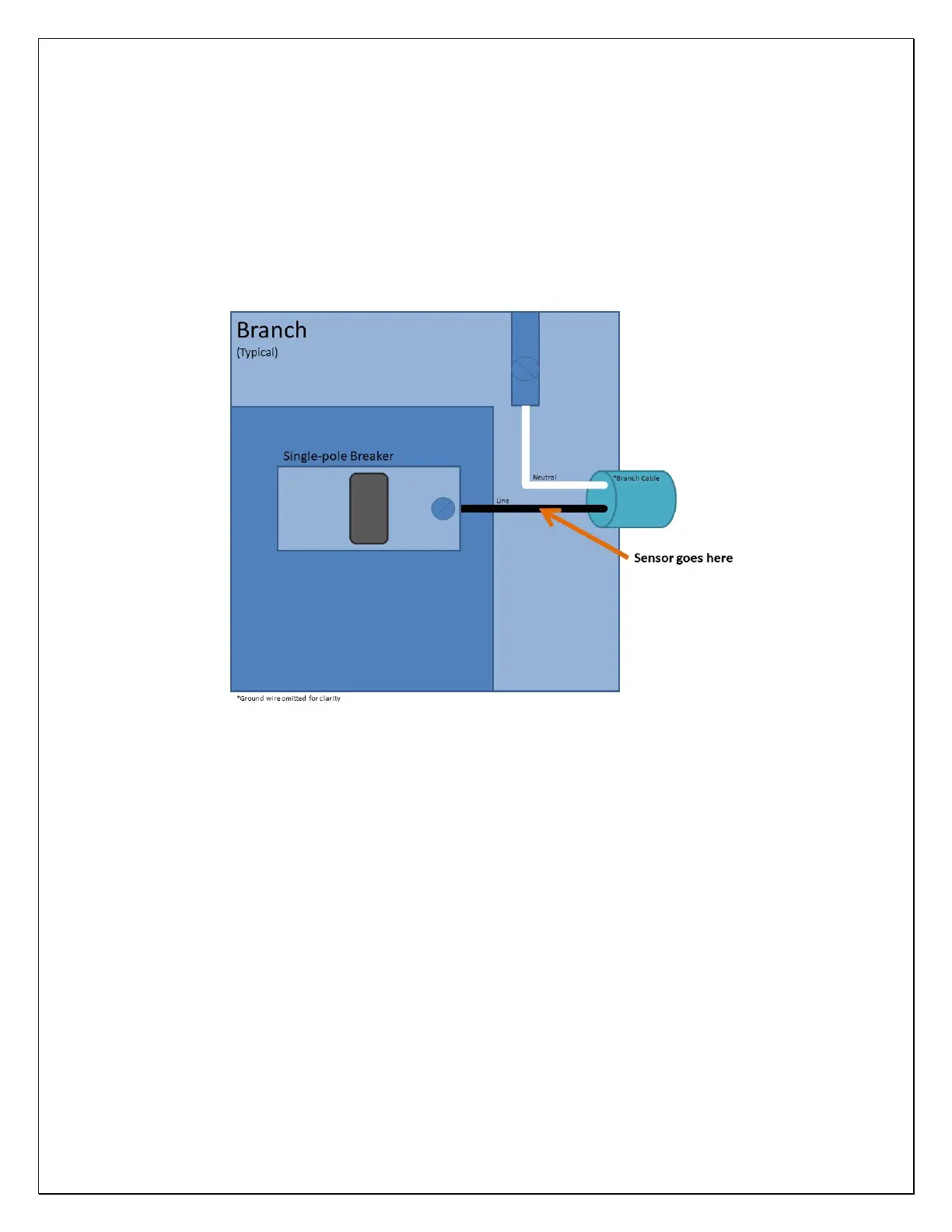

One (1) sensor is required for monitoring single phase branch circuits or loads. The sensor should be
installed on the line conductor of the circuit (often black).
