BALANCED BRANCH CIRCUIT MONITORING
Balanced branch circuits are commonly used for electric heaters/baseboards, electric water heaters,
air conditioners, heat pumps, pool pumps, etc. These circuits can be identified by a double-pole
breaker in the electrical panel. Cabling typically consists of black (line 1) and red (line 2) conductors
with a bare copper (or green) ground conductor. Note: these circuits do not have white (neutral)
conductors.

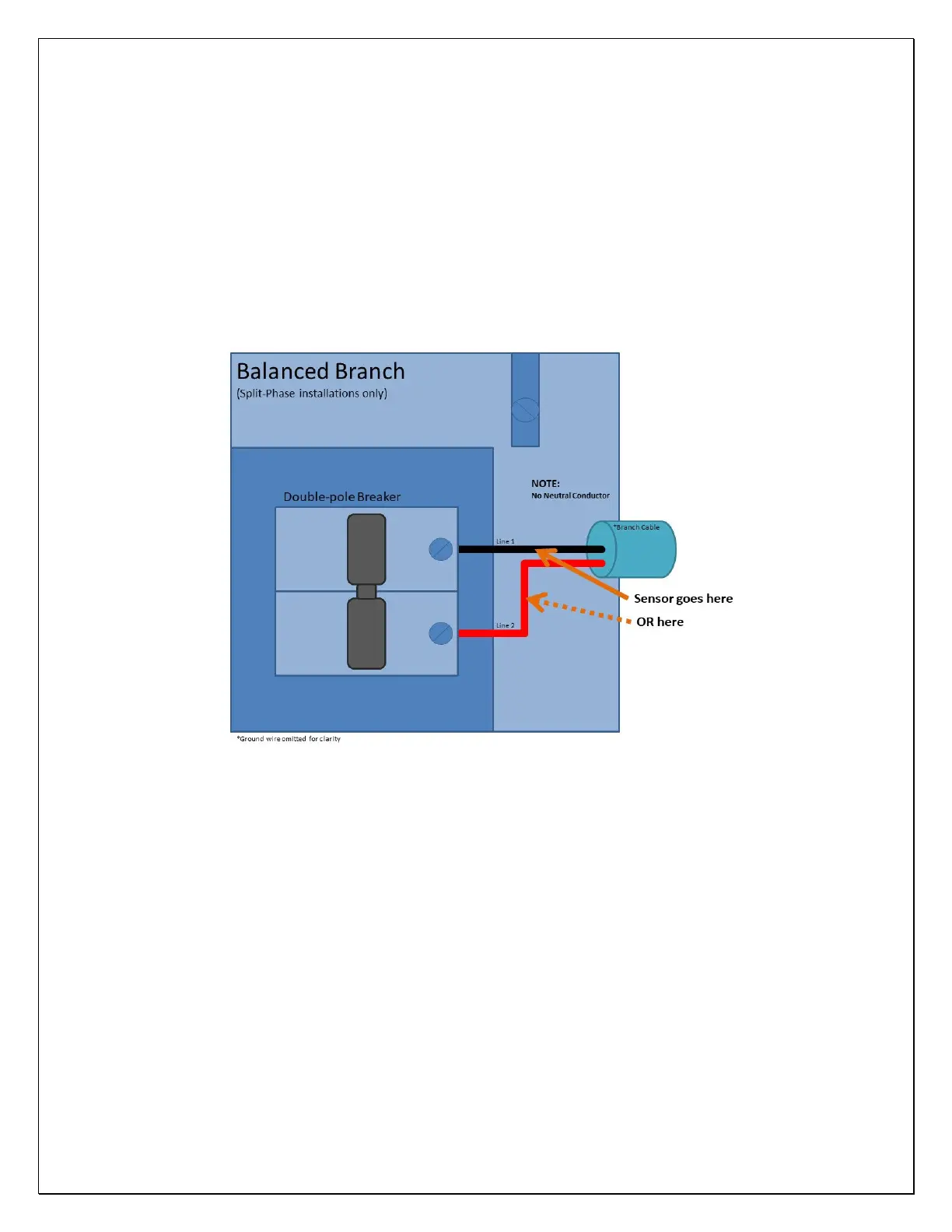

One (1) sensor is required for monitoring balanced branch circuits. The sensor should be installed on
either line conductor of the circuit (typically black or red).
