Page 40 of 72
4.8.16. After installing the ramp handrails, insert the Short Side Vertical Picket on the “short”
side of the 45° Angle Platform. Align the bottom of the posts with the bottom of the
corner pockets and tighten the set screws securely. Install angle caps on top of the posts.
Refer to Section 4.5 for installing platform handrails and attaching angle caps (FIG. 4.20).
4.8.17. Insert adjustable elbows into both the ramp handrails and install the 1-1/2” diameter
handrail tubes in the same manner as described in ‘HANDRAILS’ section and shown (FIG.
4.21).

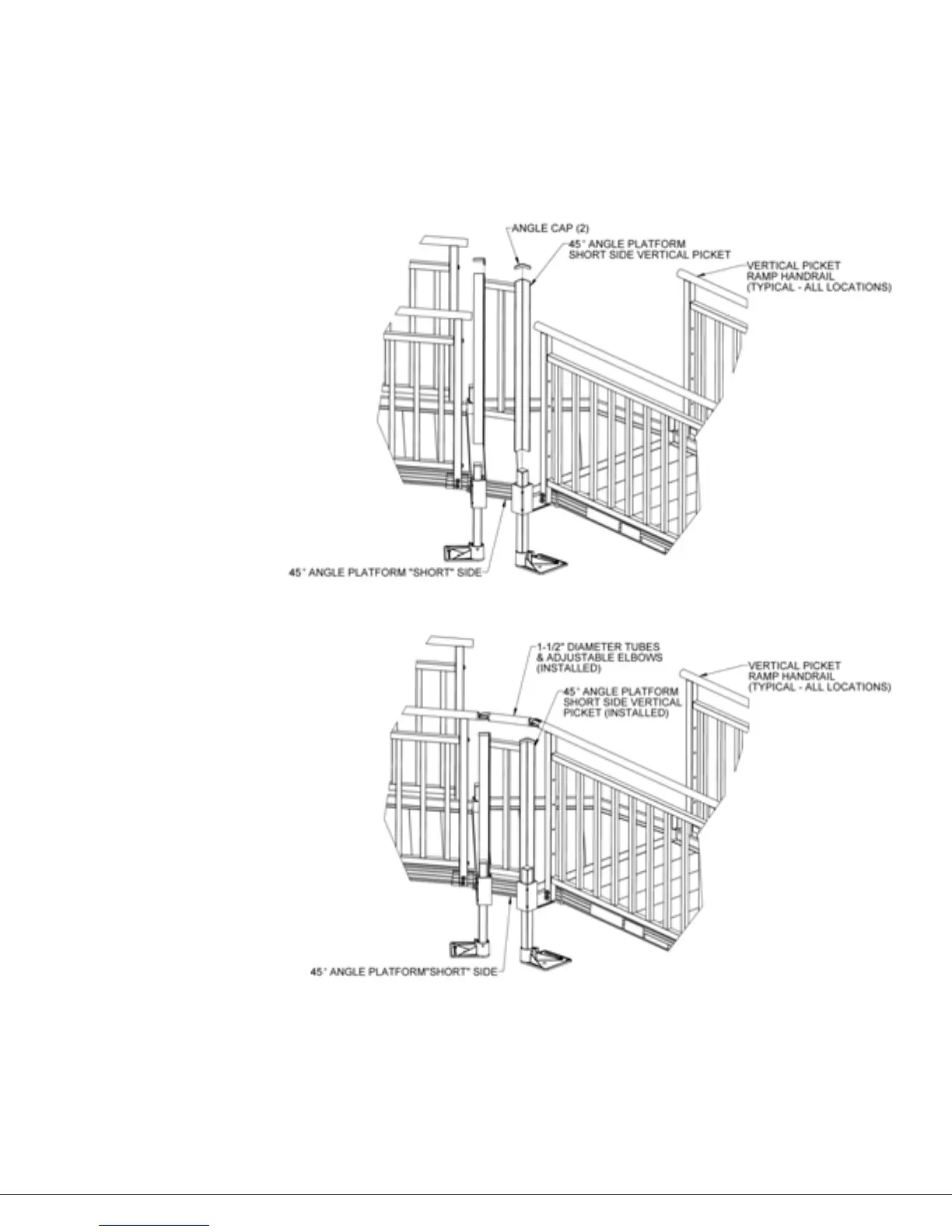

FIG. 4.20
FIG. 4.21
