Page 42 of 72

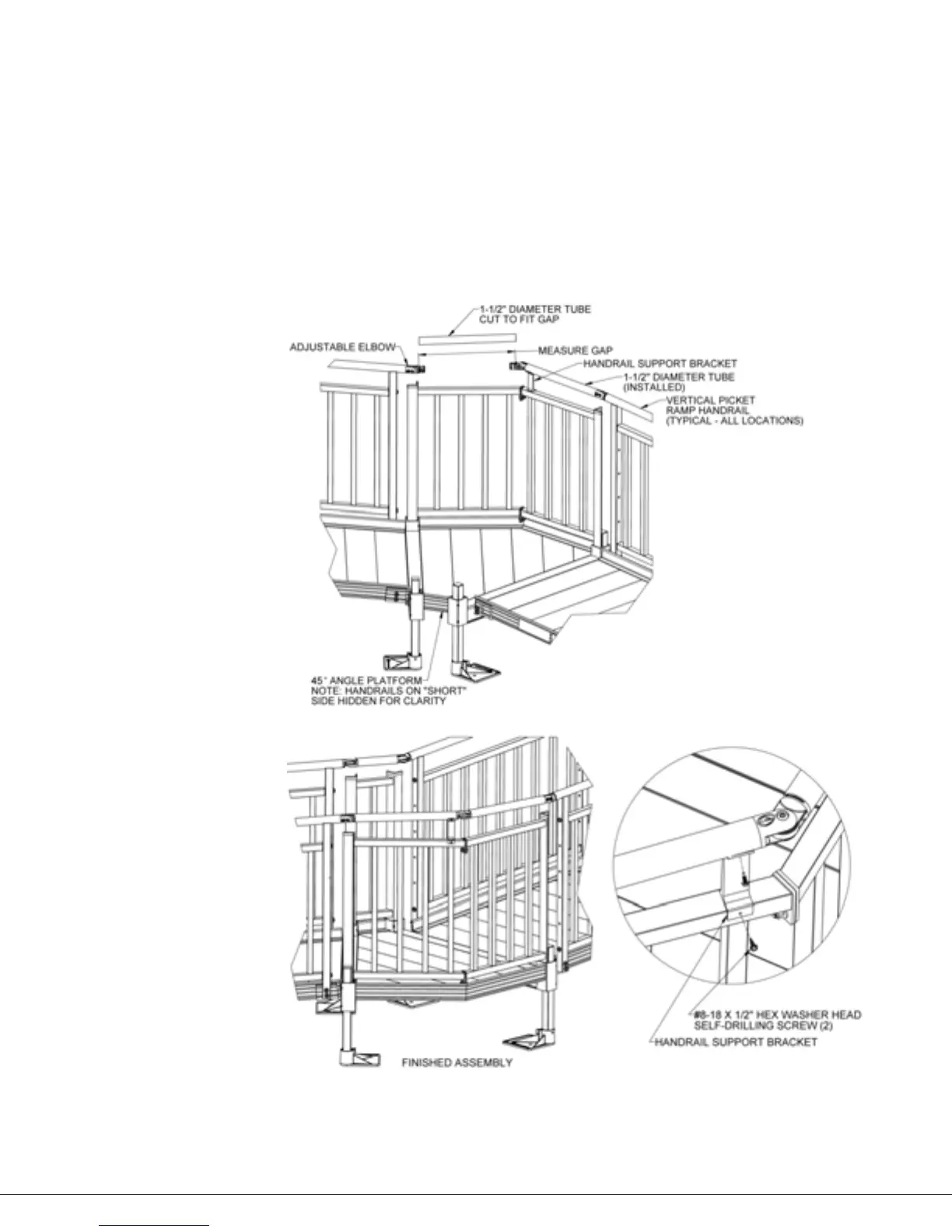

4.8.20. Install an adjustable elbow in the last open ramp handrail and align with the adjustable
elbow at the split between the Vertical Picket panels. Measure the gap between the large
round faces, cut a 1-1/2” diameter handrail tube to fit the gap and install the handrail
tube (FIG. 4.24). The procedure for installing the 1-1/2” diameter handrail tubes and
adjustable elbows is the same as the installing the closure top rail.
4.8.21. Secure the Handrail Support Bracket to both the 1-1/2” diameter handrail tube and the
top rail of the Vertical Picket panel using two #8-18 x 1/2” hex washer head self-drilling
screws. Orient the attachment leg of the Handrail Support Bracket away from the
platform as shown (FIG. 4.25).
4.8.22. Make sure all fasteners on both sides are tightened securely.
FIG. 4.24
FIG. 4.25
