5.2.15. Insert 5/16”-18 square threaded inserts into both ends of the mid rail (FIG. 5.8). Use a
rubber mallet or similar tool to fully seat as needed.
5.2.16. Install 5/16″-18 x 1″ hex bolts through 5/16” flat washers, the long leg of the closure
bracket, and the platform angle post into the 5/16”-18 square threaded inserts
installed in the mid rail. Use the hole approximately in the middle of the platform
angle post as shown (FIG. 5.8).
5.2.17. Tighten all fasteners securely.

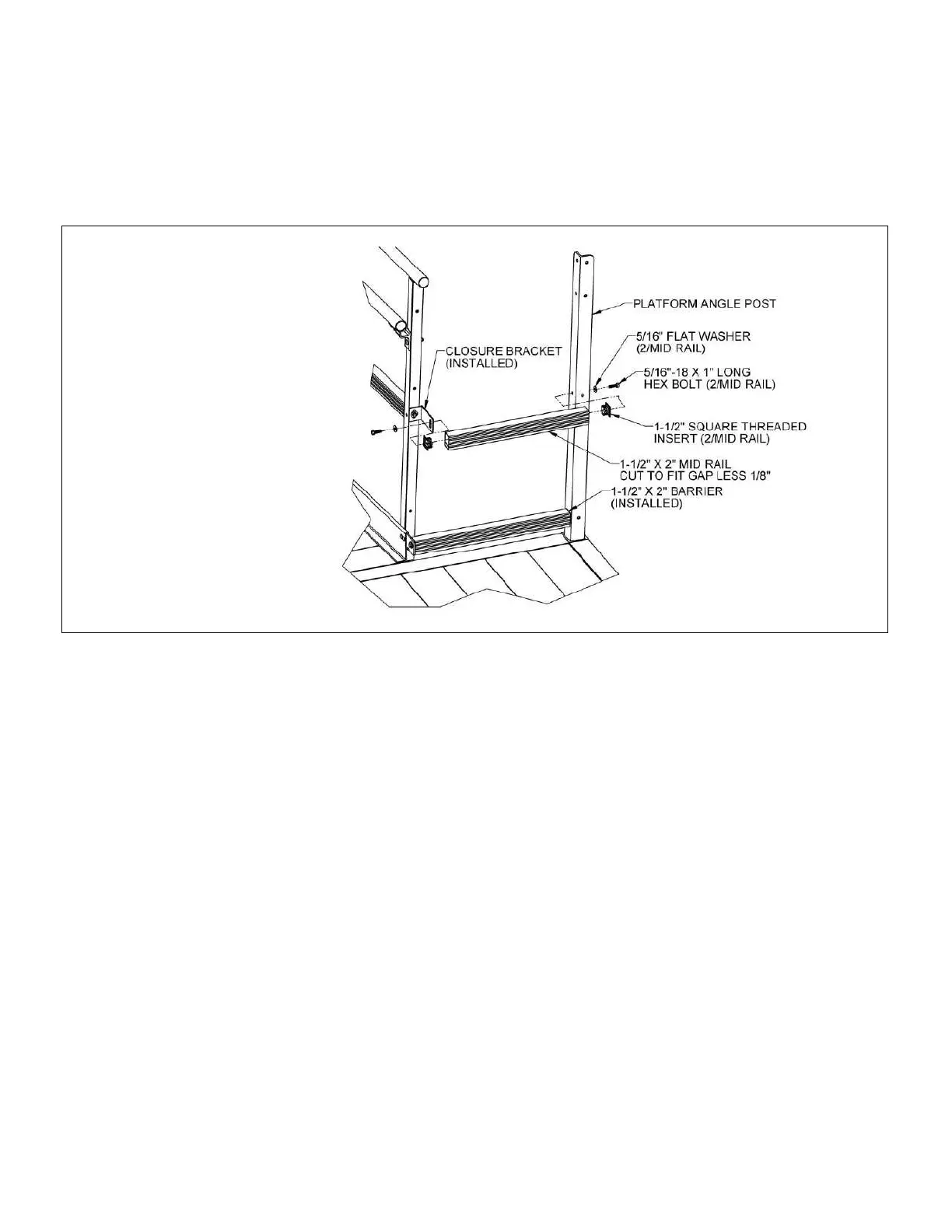

FIG. 5.8
