5.8. TWO-LINE RAIL CORNER TURN
There are five special closures available for filling the space between two ramps in a corner turn
configuration: Two-Line Rail for a 5’ x 5’ platform, picketed guard for a 5’ x 5’ platform, two-line
rail for a 6’ x 6’ platform, picketed guard for a 6’ x 6’ platform, and special closure for 54” wide
ramps used on a 5’ platform side. Corner turn closures for a 5’ x 7’ and 5’ x 6’ platforms are
uncommon so must be ordered as customs for the specific configuration.
5.8.1. Install the platform angle post (not already attached to the platform) in the open
platform corner pocket. Align the bottom of post with the bottom of corner pocket,
and then tighten the set screws securely. Refer to ‘HANDRAILS’ section for additional
details on securing the post to corner pocket.
5.8.2. The barrier and mid rail of a two-line corner turn are installed in the same manner as a
two-line closure. Refer to ‘TWO-LINE RAIL BARRIER AND MID RAIL’ section and
complete the steps described to connect both frames to the platform angle post in
the corner. FIG. 5.36 shows this stage of the assembly.

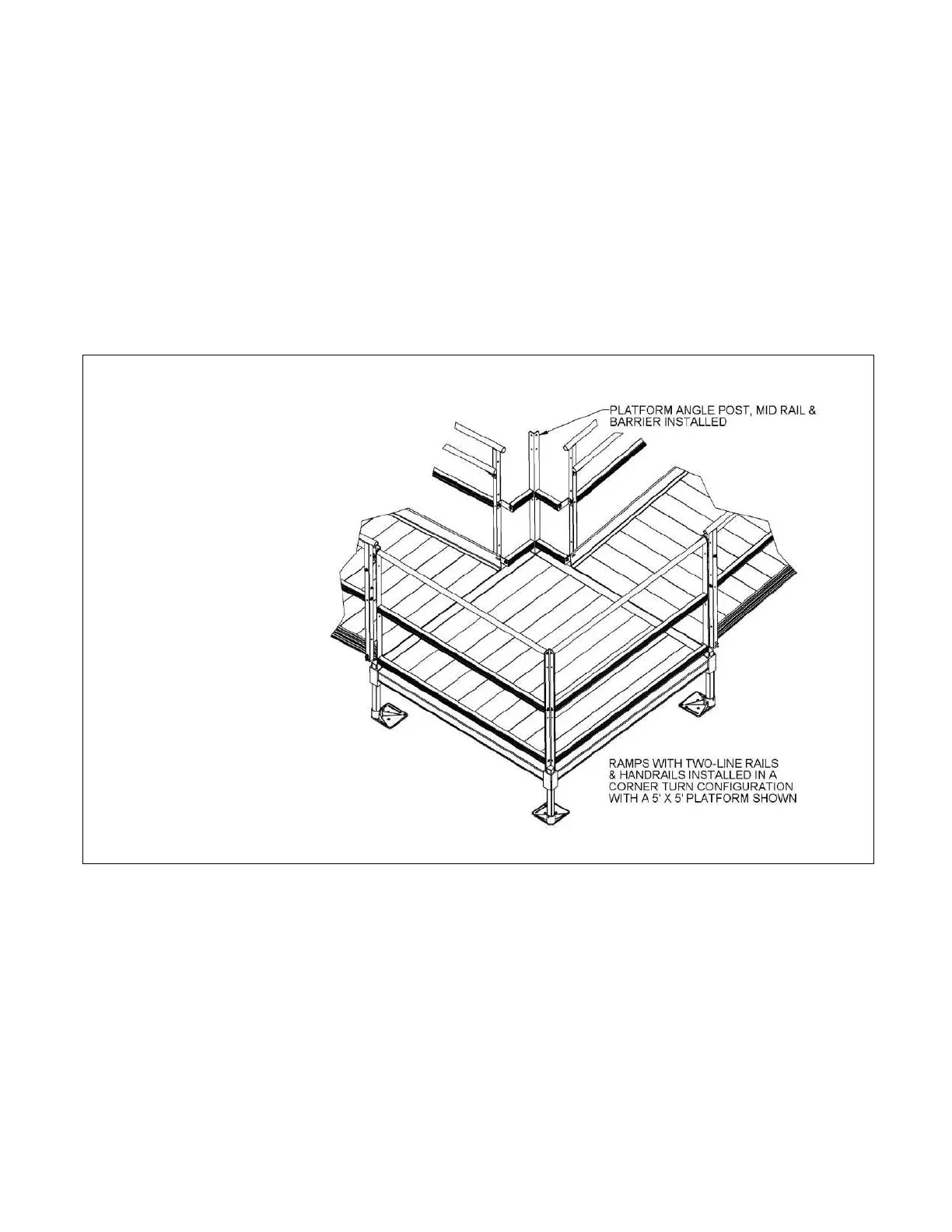

FIG. 5.36
