Page 30 of 92
4.5. CONVERT TWO-LINE RAMP RAILS TO PICKETED GUARDS
4.5.1. Remove the frame from ramp and remove the mid rail from the frame (FIG. 4.8).
4.5.2. Install the picketed guard section into the two uppermost and lowermost holes in
the frame using the provided 5/16”-18 x 2-1/4” hex bolts and 5/16” flat washers.
Regardless of handrail/guard styles, assemble handrail/guard bolts loosely (do
not fully tighten) until all handrails/guards have been installed on the ramp and
or platform.
4.5.3. Install the picketed guard on the ramp and connect the ramp handrails per the
‘RAMP HANDRAILS’ section.

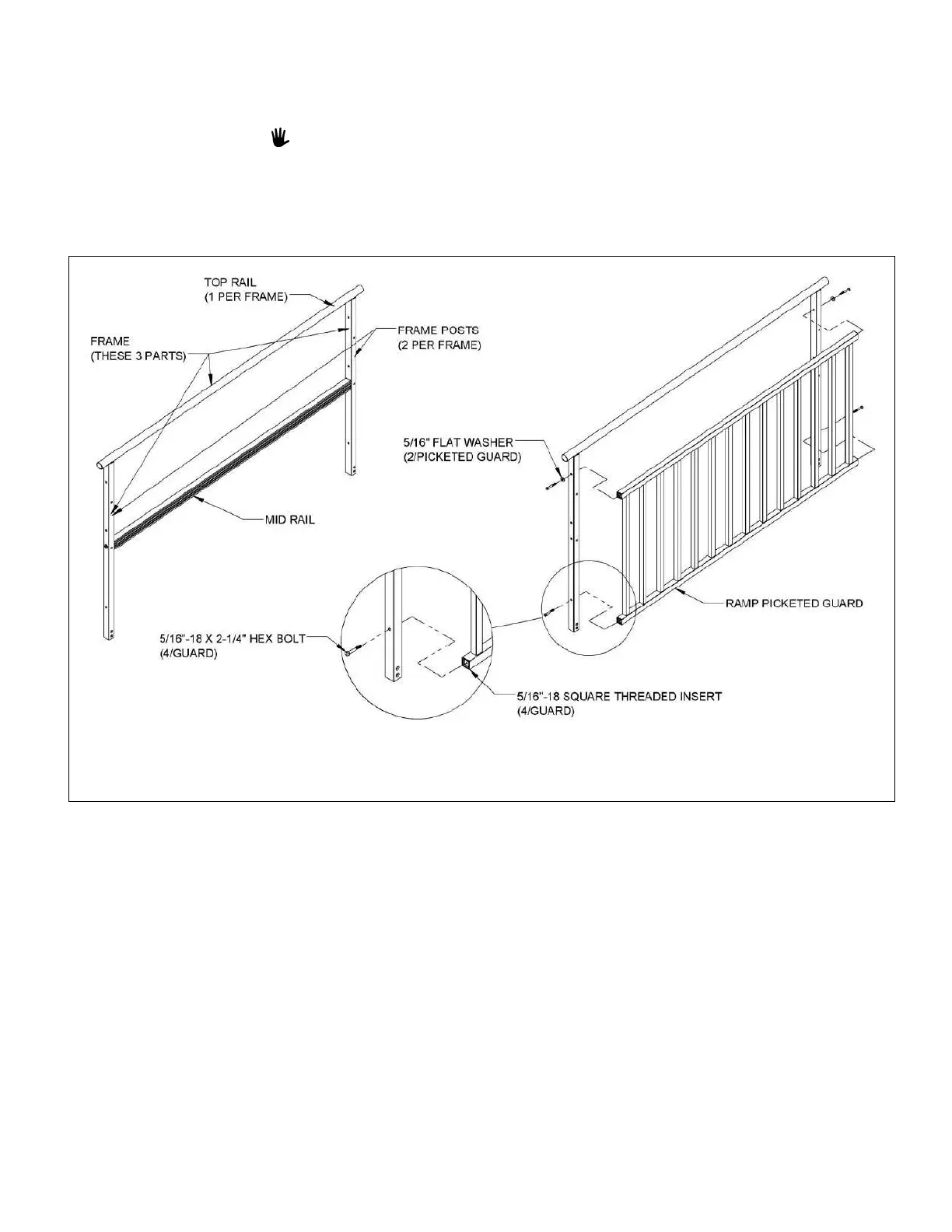

FIG. 4.8
