TITAN
™
Code Compliant Modular Access System Installation Manual
5.3. TWO-LINE RAIL TOP RAIL
5.3.1. Insert a 2-15/16” ring joiner in the frame top rail and install an adjustable elbow with
another 2-15/16” ring joiner as shown (FIGs. 5.9 and 5.10).
5.3.2. Assemble an adjustable elbow with threaded insert in the uppermost hole in the
platform angle post where the closure will connect using a 5/16”-18 x 1” long hex
bolt and 5/16” flat washer.
5.3.2.1. For a 5’ platform side, use the hole shown in FIG. 5.9. For larger
platforms use the hole shown in FIG. 5.10.
5.3.3. Tighten only enough to hold the elbow in place.
5.3.4. Insert a 2-15/16” ring joiner in the opposite end of the adjustable elbow with threaded
insert (FIGs. 5.9 and 5.10).

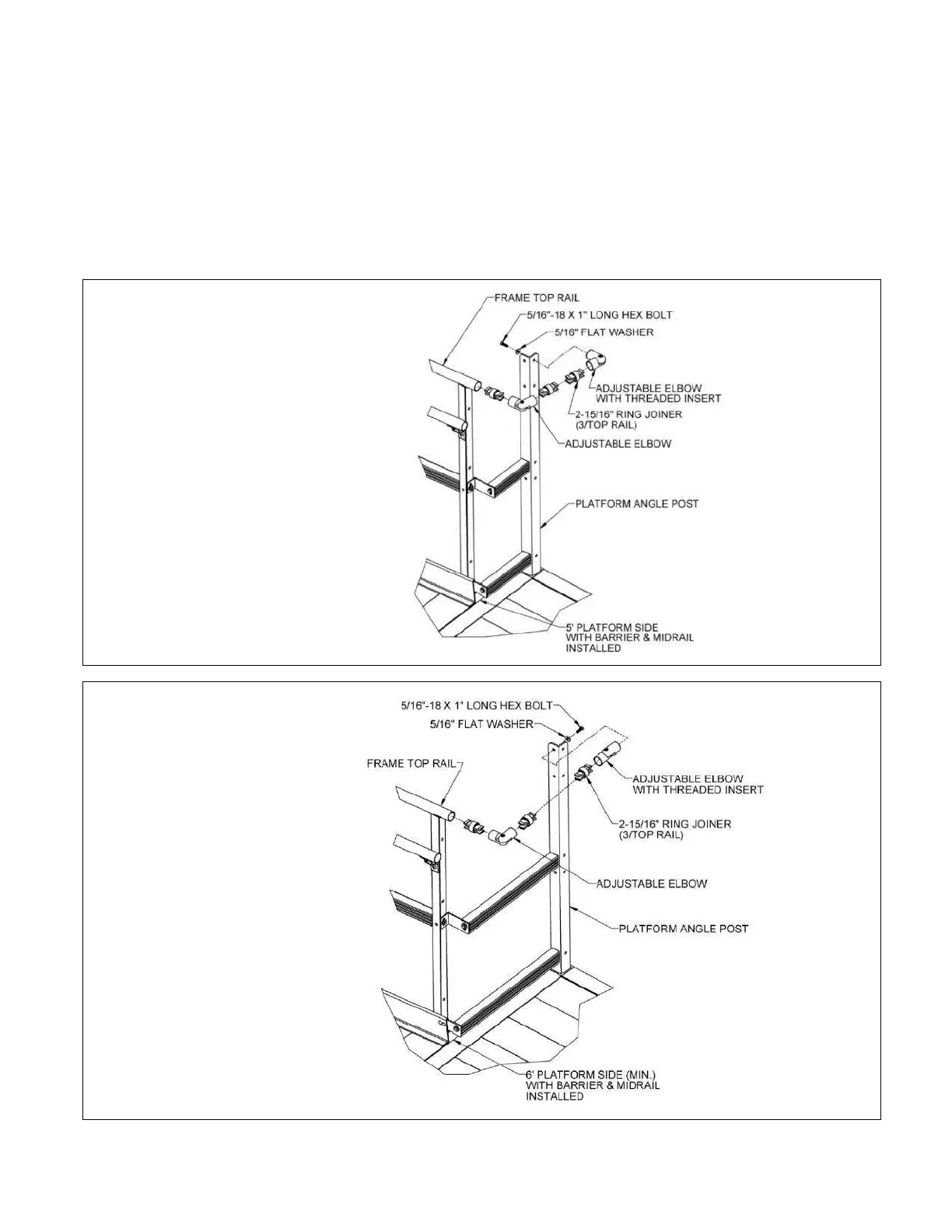

FIG. 5.9
FIG. 5.10
