TITAN
™
Code Compliant Modular Access System Installation Manual
6.5. INSTALL FRAME TOP RAIL END PLUGS AND RAMP CORNER PROTECTORS

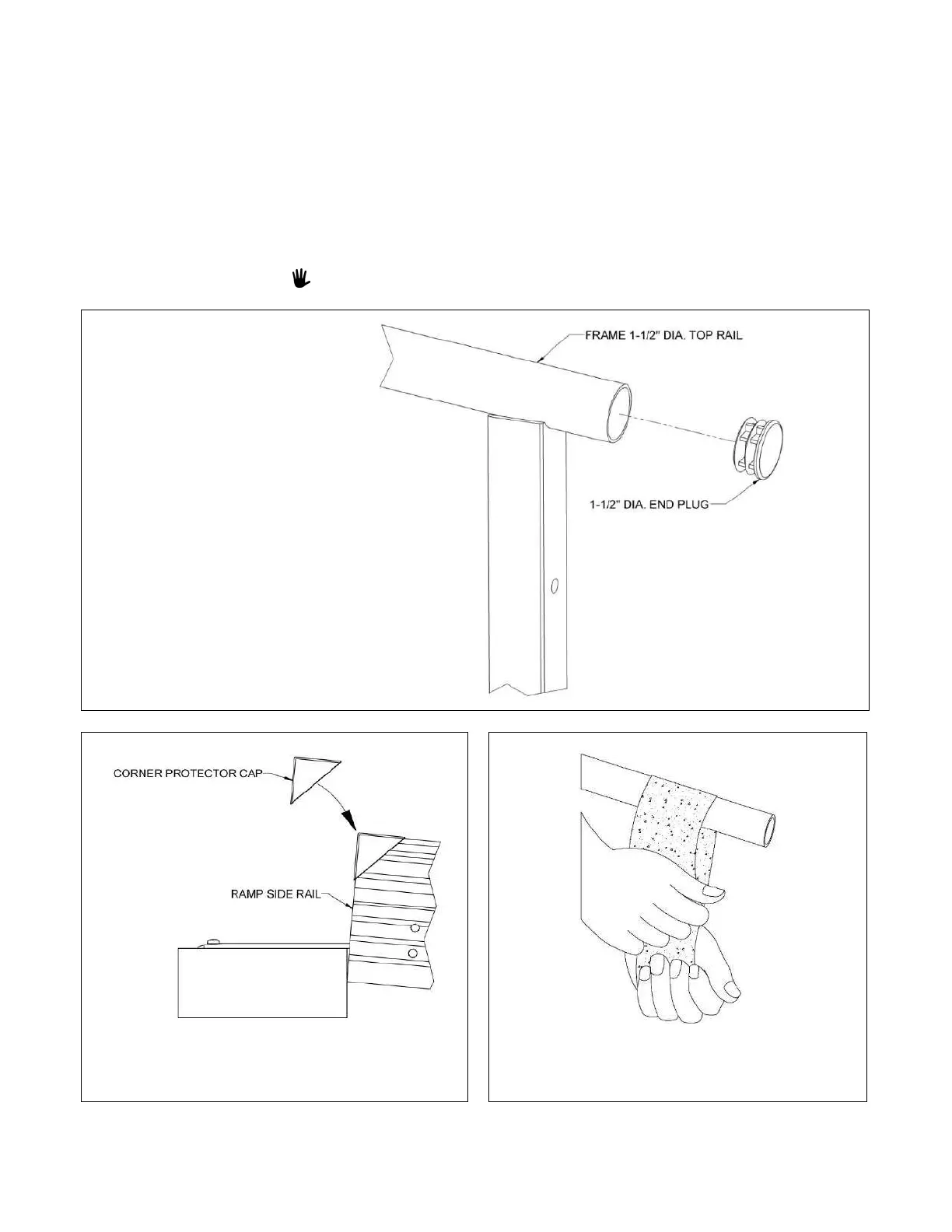

6.5.1. Insert 1-1/2” end plugs on all open ends of the frame top rails (FIG. 6.11). Push them
in by hand or use a rubber mallet or similar tool to fully seat as needed. If necessary,
use construction adhesive to bond the plug in place.
6.5.2. Install corners protector caps over side rail corners by placing one cap on each side at
both the top and bottom of the ramp or ramp run (FIG. 6.12). If necessary, use
construction adhesive to bond the cap to the ramp side rail.
6.6. TOUCH-UP HANDRAILS
6.6.1. As needed, use sandpaper (180 grit or equivalent) for blending scratches on handrails.
Sand in direction of the grain as shown (FIG. 6.13).
Do not use on painted or powder coated surfaces.
FIG. 6.11
FIG. 6.12
FIG. 6.13
