Code Compliant Modular Access System Installation Manual
Page 18 of 92
3.3. ATTACH SUPPORT LEGS TO RAMPS
3.3.1. Install the support leg bracket, included in the CONNECTOR – RAMP TO RAMP, on the
center studs of the center saddle bracket. The round hole goes over the upper stud
and the curved slot over the lower stud (FIG. 3.6).
3.3.2. Install the provided 5/16” flat washers and 5/16”-18 nylon insert locknuts onto the
studs (FIG. 3.6) but do not tighten fully until the bracket has been leveled.
3.3.3. Level the support leg bracket, using a bubble level or similar tool, and then torque the
two 5/16”-18 nylon insert locknuts to 20 ft.-lbs. (FIG. 3.7).

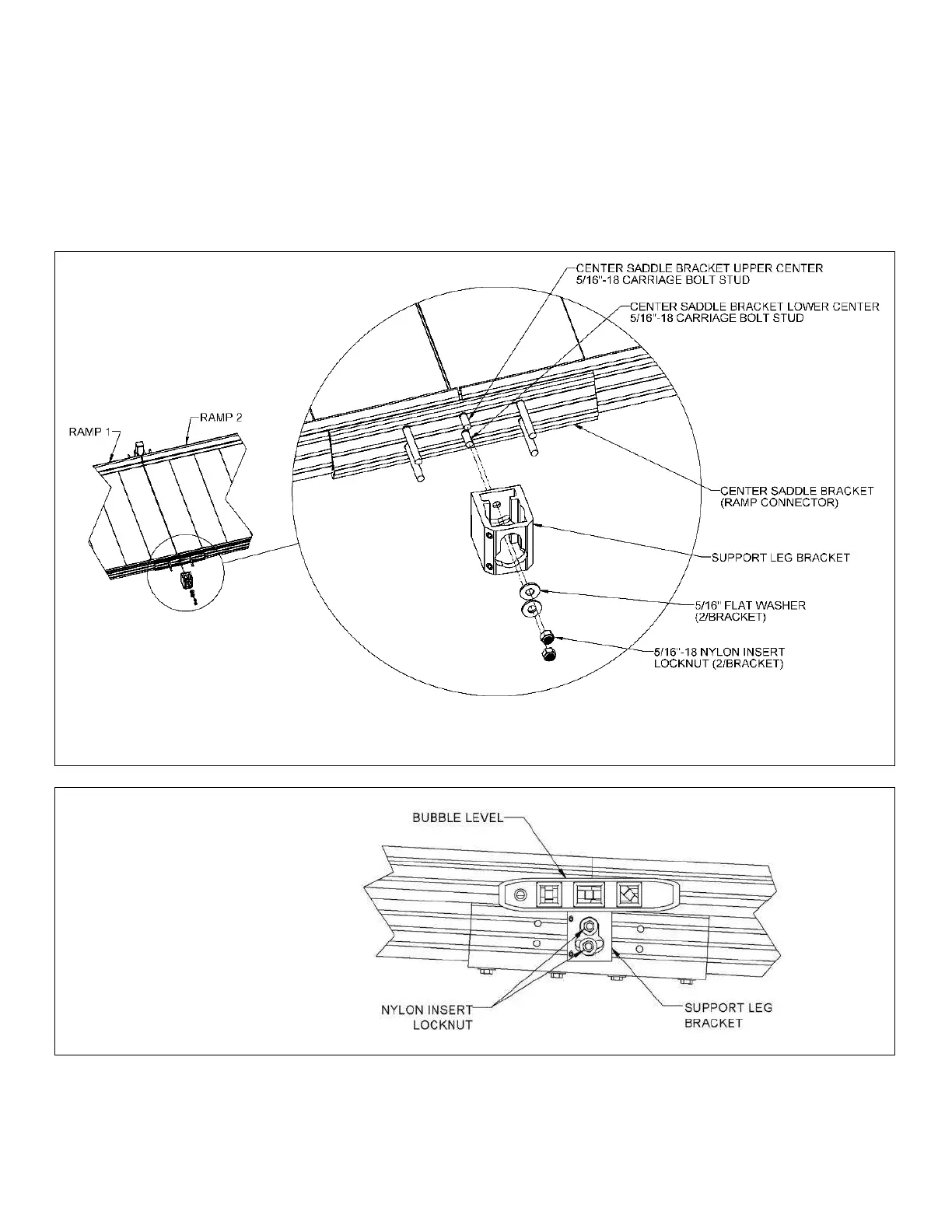

FIG. 3.6
FIG. 3.7
