EZ EM PROTOCO2L 6400 - HIGH PRESSURE HOSE AND YOKE ASSEMBLY

PROTOCO
2
L
TM
Colon Insufflator User Manual
Page
13
Section 8.0
HIGH PRESSURE HOSE AND YOKE ASSEMBLY

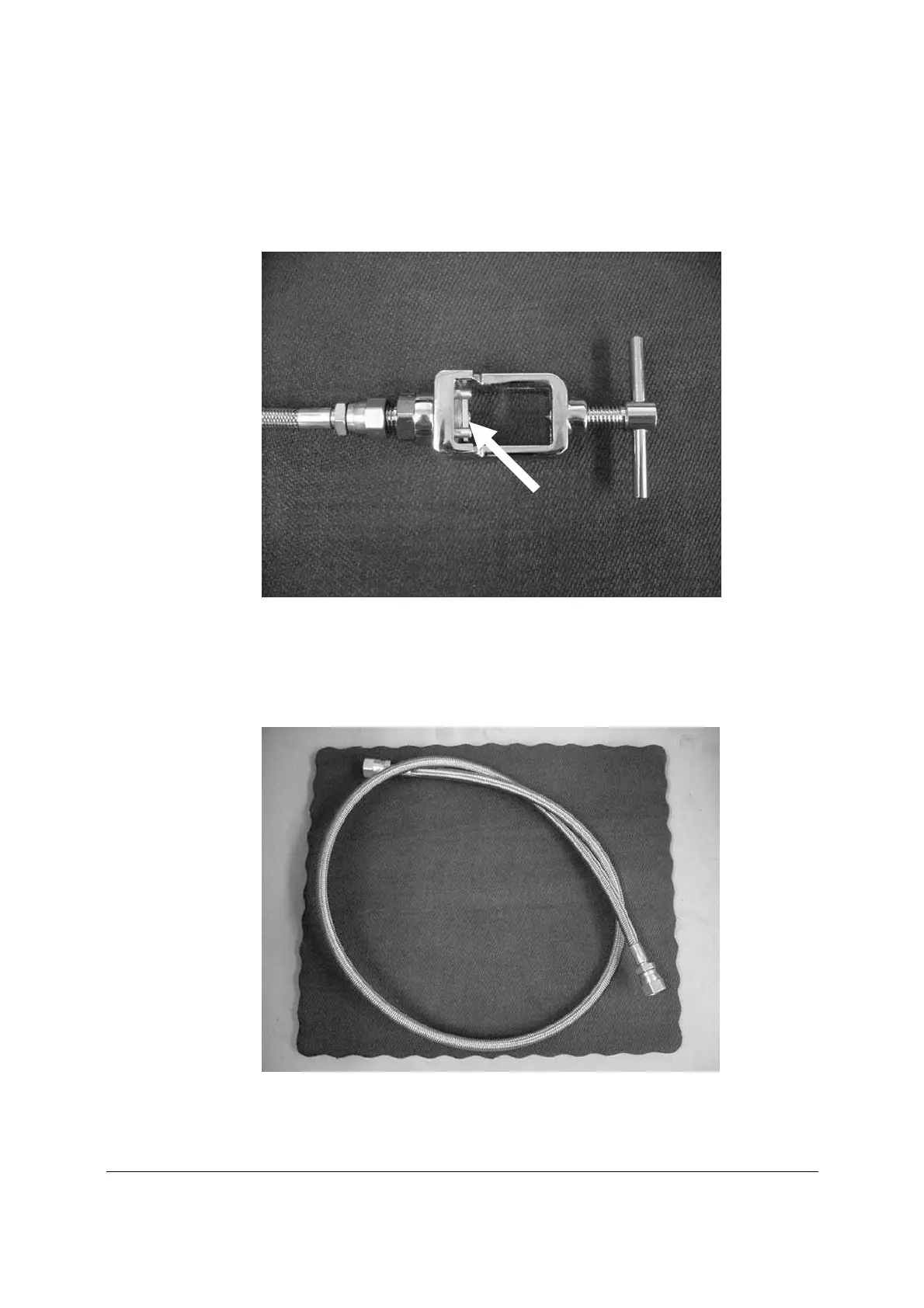

The assembly consists of the YOKE as shown in Figure 8.1 and the H
IGH
PRESSURE HOSE as shown in Figure 8.2.
NOTE:
Before proceeding to the next step, check for the presence of the plastic
gasket on the inside of the yoke (arrow on Figure 8.1).
Figure 8.2
Figure 8.1
