Ezviz C3A User Manual

1
Chapter 1 Overview
1.1 Brief Introduction
You can use your camera wirelessly, powered by the battery. Also, you can use it indoors
with an AC power outlet connected, or use it outdoors with a solar panel. Once motion is
detected by the camera, you can check the messages in the APP through the Wi-Fi linked
to the base station.
1.1.1 The Appearance of the Device
The appearance of the device is shown below.

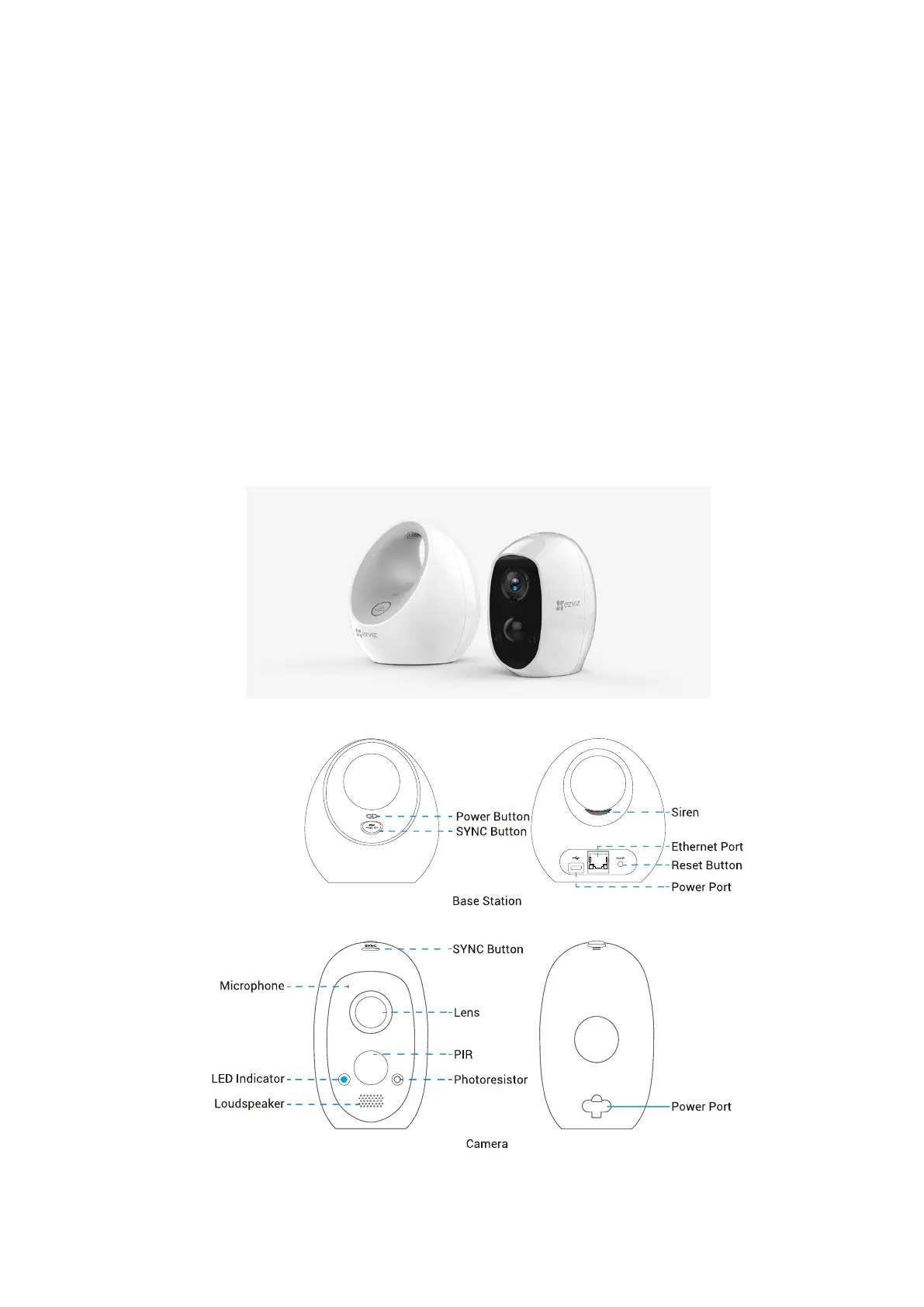

Figure 1-1 Appearance
Figure 1-2 Appearance Instruction

Ezviz C3A Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Motion sensor technology	Passive infrared (PIR) sensor
LED type	IR
Night vision distance	7.5 m
Form factor	-
Mounting type	Wall
Product color	Black, Silver
Protection features	Dust resistant
International Protection (IP) code	IP65
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Video compression formats	H.264
Audio system	2-way
Compatible memory cards	MicroSD (TransFlash), SD
Maximum memory card size	128 GB
AC input voltage	100 - 240 V
Battery capacity	5500 mAh
DC output current	1 A
DC output voltage	5
Power source type	AC, Battery
AC input frequency	50 - 60 Hz
Battery technology	Lithium
Number of sensors	1
Optical sensor size	1/4 \
Frequency band	2.4 GHz
Operating temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Fixed focal length	2.2 mm
Minimum illumination	- lx
Field of view (FOV) angle	126 °

Weight and Dimensions

Depth	70 mm
Width	56 mm
Height	92 mm
Weight	215 g
