FAAC Model S450H 24V Hydraulic Swing Gate Operator

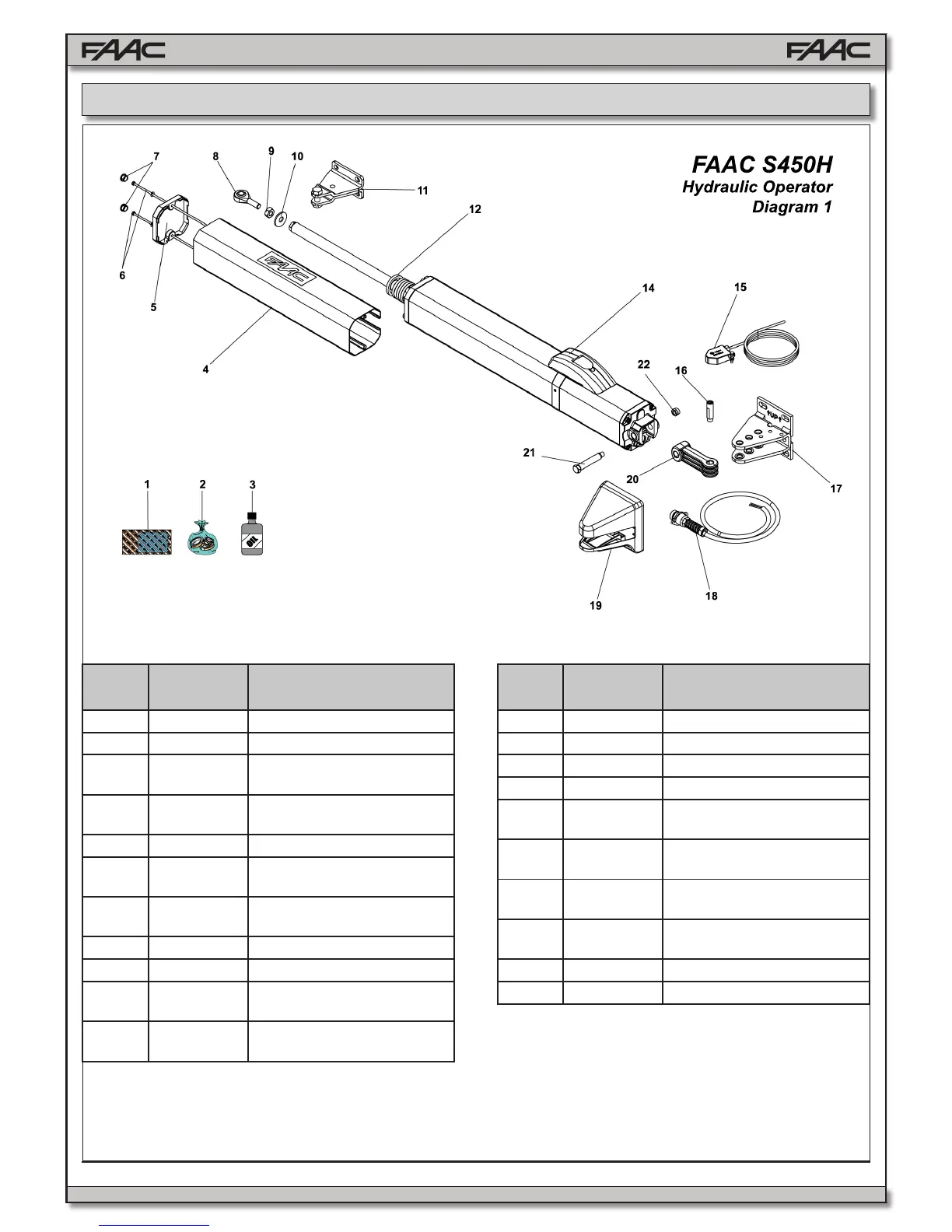

7. S450H PARTS DIAGRAMS
FAAC S450H
Hydraulic Operator
Diagram 1
Part Part
Number
Description
01 63001885 S450H SKINPACK
02 63000606 SEAL KIT S450H
03 714017 HYDRAULIC OIL FAAC HP
OIL LT. 1
04 63001895 S450H CARTER WITH FAAC
LABEL
05 4170015 CARTER 400/87
06 63001905 SCREW FOR CARTER
S450H
07 7119405 CAP FOR HOLES COVER
CARTER
08 7073035 M10 JOINT
09 702101 HEX. NUT 10 5588 5S Z
10 703027 WASHER 10 6593 CAT. C
R40 Z
11 63001945 S450H FRONT
FASTENING
Part Part
Number
Description
12 63001975 SPACERS KIT FOR S450H
14 63001985 RELEASE ASSY S450H
15 63001875 S450H ENCODER
16 63001965 S450H SHORT PIN
17 63001915 REAR BRACKET FOR
S450H
18 96001935 S450H MOULDED CABLE
FEMALE KIT
19 63001925 S450H BRACKET COVER-
ING
20 63001955 REAR EYE TIE ROD FOR
S450H
21 7182175 LONG PIN
22 702302 NUT AUT. 8 7474 5S Z
