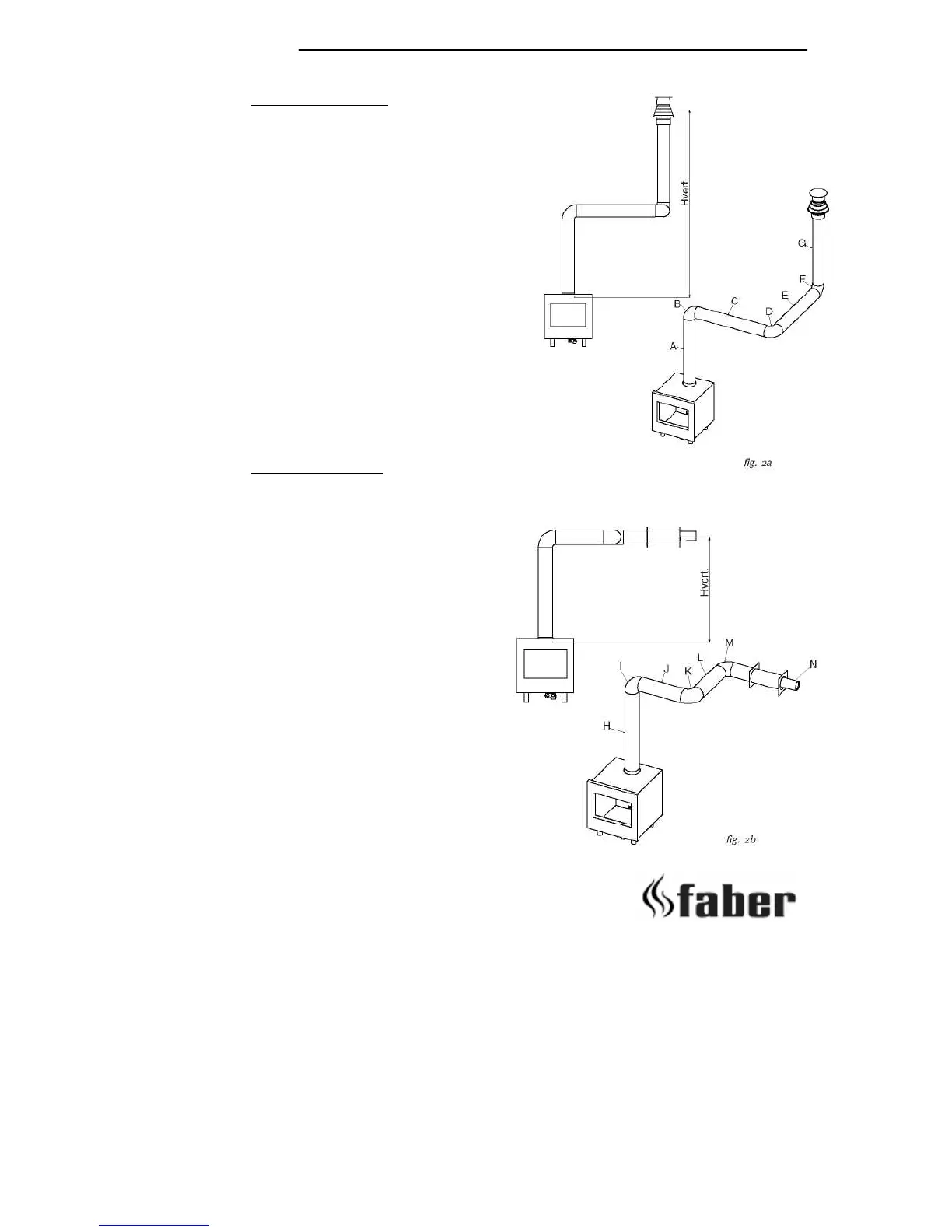

Example calculation 1:
Calculating horizontal extension fig. 2a:
Flue lenght C + E = 1m + 1m 2 m
Elbows D = 2m 2 m
Total horizontal extension 4 m
Measure or calculate effective height (Hvert)
Flue lenght A 1 m
Roof mounted terinal 1 m
Total effective height 2 m
When calculating on basis of the
Widescreen table nr. 2: It is allowed. Remove
the flue restrictor!
When calculating on basis of the
MV100 table nr. 3: Allowed but without flue
restrictor. Remove the flue restrictor!
When calculating on basis of theMV150 table
nr. 4: Allowed but without flue restrictor.
Remove the flue restrictor!
When calculating on basis of the Roundscreen
table nr. 5: Allowed but without flue restrictor.
Remove the flue restrictor!
Example calculation 2
Calculati0n horizontal extension fig. 2b
:
Flue lenght J + L = 0,5 + 0,5 1 m
Elbows K + M = 2m + 2m 4 m
Terminal 1 m
Total horizontal extension 6 m
Vertical
Flue lenght
H 1 m
When calculating on basis of the
Widescreen table nr. 2: Combination not
allowed.
When calculating on basis of the MV100
table nr. 3: Allowed but without flue
restrictor. Remove the flue restrictor!
When calculating on basis of the MV150
table nr. 4: Combination not allowed.
When calculating on basis of the
Roundscreen table nr. 5: Combination not
allowed.
