4.3 Installing the appliance with the Faber false chimney breast
When the appliance is purchased with a Faber false chimney breast, then first follow the
instructions delivered with the package of the false chimney breast.
4.4 Installing the appliance in an existing or different false chimney
breast.
Read the requirements described in paragraph 3.1 before continuing with the installation!
4.4.1 Preparing the surround
1. Check if the floor and wall are sufficiently level. If necessary, improve it;
2. If the floor will be raised higher (e.g. by installing carpet or parquet), the floor
underneath the fire place has to be equally raised;
3. Insulate the back wall with promatec of comparable inflammable material;
4. Drill holes for the flue routing. Minimum height with flue routing through the back wall
is the height of the appliance plus the pipe bend. When going through the roof, a hole
with a diameter ∅ 200mm has to be drilled in the ceiling at a distance of 170 mm from
the wall to the heart of the hole. This hole
indicates the centre of the false chimney
breast. Moving it afterwards is not possible.
5. Adjust the floor plate, if necessary:
• Drill a hole on the floor plate where
the gas connection will come out of
the floor;

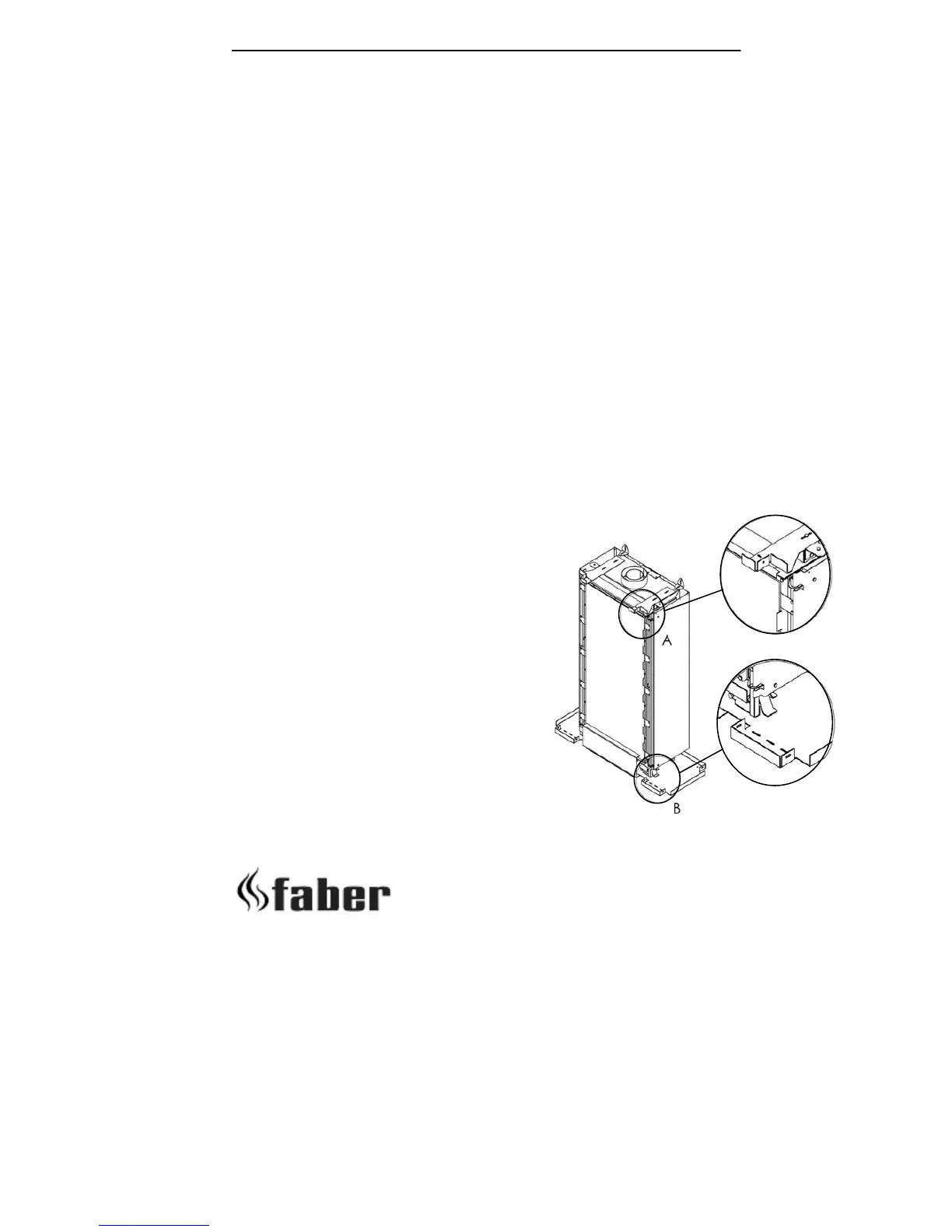

• Cut off the knockouts (A en B, see
figure) which are meant for the Faber
false chimney breast;
6. Position the floor plate and mount it to the
floor;
7. Prepare the gas connection, see paragraph
4.1.
