4. Instalation-instructions
4.1 Gas connection
- Installation pipes should be in accordance with BS 6891. Pipe work from the meter to
the appliance must be of adequate size.
- The complete installation including the meter must be tested for soundness and
purged as described in the above code.
- A means of isolation must be provide in the supply to facilitate servicing.
- The connection should be made in 8 mm copper or similar semi flexible tube (max 1
meter). Ensure that the gas pipe does not interfere with the removal or replacement
of the burner tray of the controls.
- The gas connection is nut and olive suitable for 8 mm pipe.
Make sure there is a gas connection with a diameter of 8 mm goes directly from the gas
meter to the appliance, with a CE-approved sealing valve G 1/2". This valve has to be
accessable at all times. Check the connection for gas leaks.
The gas connection is positioned on the right of the appliance.
You can choose to place the sealing valve on the in- or outside the false chimney breast.
When mounted inside, a small hatch has to be installed (can be ordered separately).
If the gas connection comes out of the floor in the false chimney breast, a hole of sufficient
size has to be drilled.
Mount the supplied nut and olive of 8 mm directly on the gas unit. Then you can go on
installing a fixed or flexible connection. This has to be CE certified.
When installed as described above, the burner can always be disassembled for servicing.
4.2 Preparing the appliance

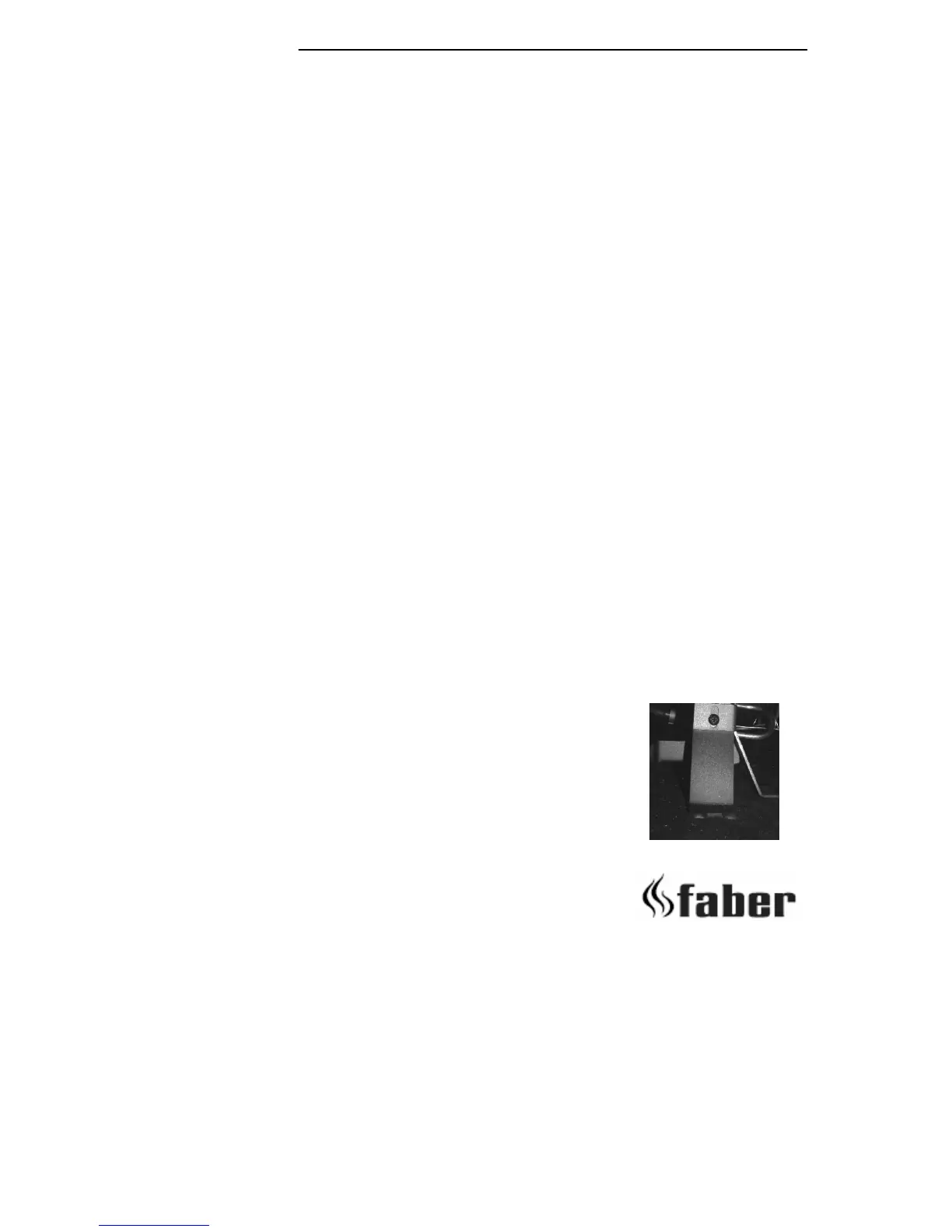

1. Remove the screws from the front legs, see figure;
2. You can now remove the appliance from the floor plate.
