Chimney side

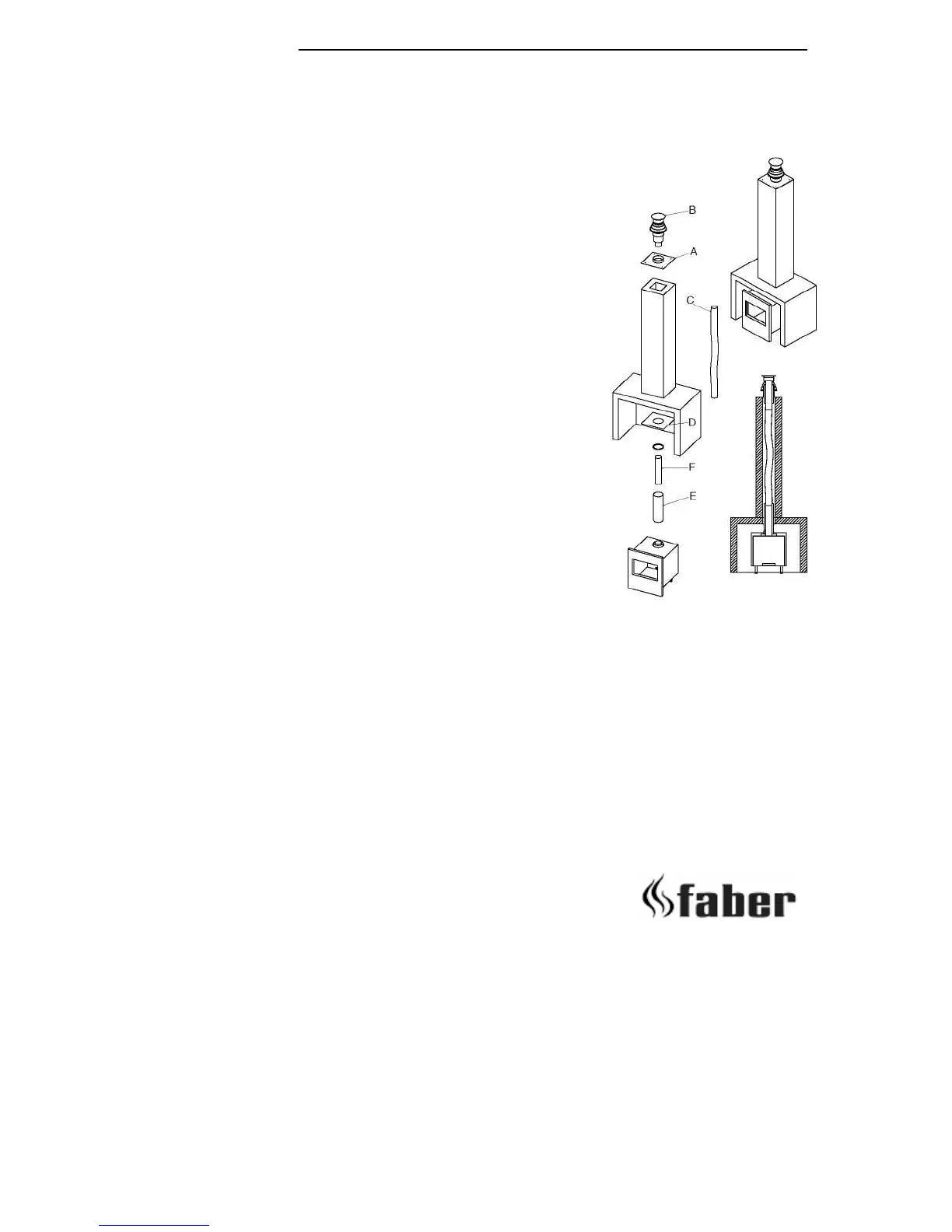

1. Place the aluminium closure plate (A) onto the
chimney. Permanently attach and make airtight.
2. Pull the liner (C) through the chimney.
3. Connect the liner onto the roof terminal and fix it with
the clamp provided with the chimney connection set.
4. Place the roof terminal onto the closure plate. Fixing
the chimney sealing plate (D) and place the 150 mm
grommet into the hole of the sealing plate.
Fire place side
5. Fixing the chimney sealing plate (D) and place the 150
mm grommet into the hole of the sealing plate.
6. if necessary, install an MV-pipe on the fire place in
such a way that the chimney connection and the MV-
system is 500 mm;
7. Fix the sealing plate air tight into the builders opening
(use the isolation rope from the chimney connection
set to make the plate air tight);
8. Slide the pipe (E) 150 mm length 500mm into the
sealing plate. Slide this pipe so far that you will have a
space of 200 mm later on for assembling the liner;
9. Install the appliance;
10. Connect the flexible stainless steel liner onto a pipe using the 200 mm long,
Ø 100 mm
pipe (F) as adapter;
11. Slide the outside pipe onto the appliance or concentric extension so that you have a air
tight connection.
5.3 Remote control
The remote control is only meant to regulate the flames, it functions only when the pilot
burner is ignited. It is therefore not possible to ignited the appliance with the remote
control or to shut-off the pilotflame. The radio-frequency remote control is intended for
