&HLOLQJ%UDFNHW,QVWDOODWLRQIRU6RႈW
´
´´
Bracket Installation on Ceiling

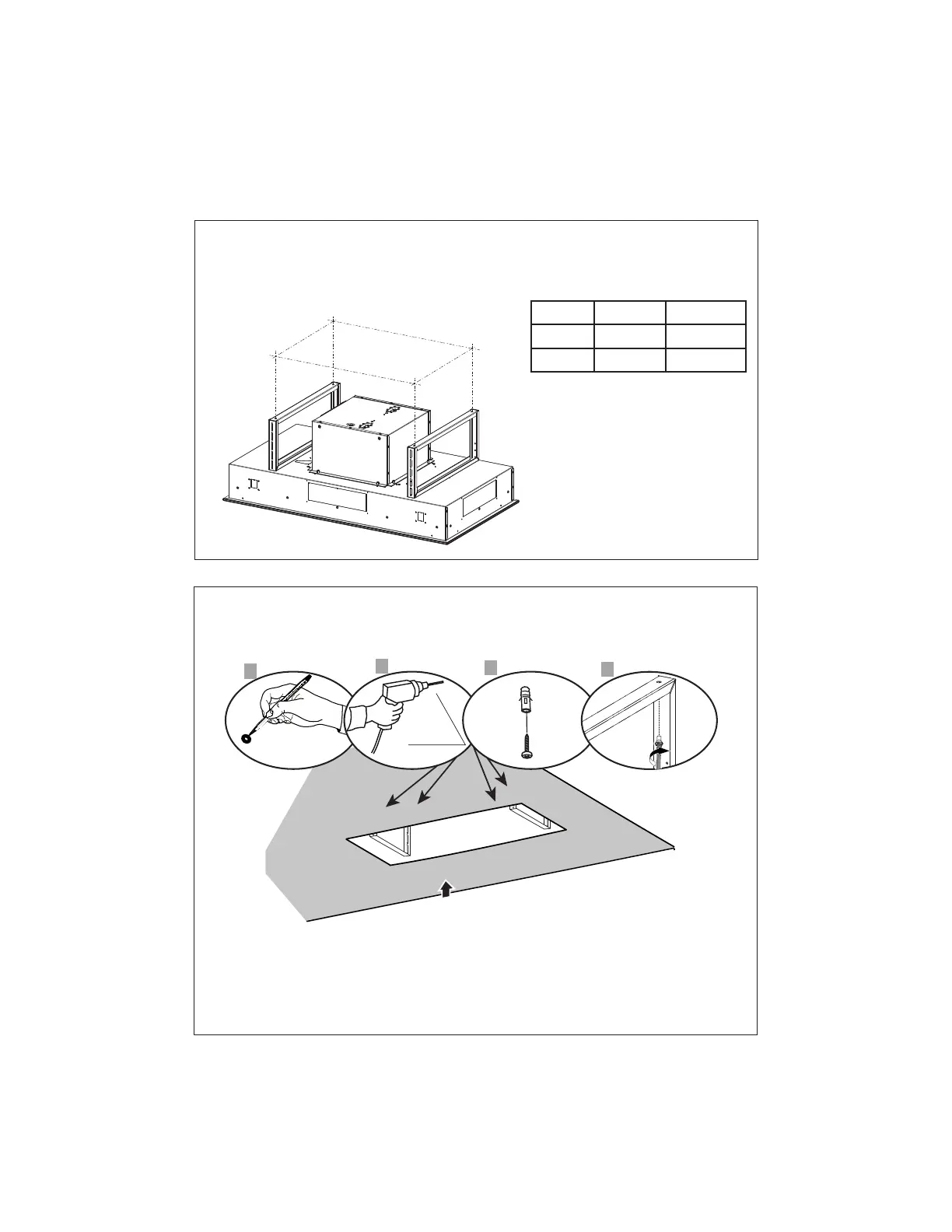

Use the brackets to mark your holes for location of the ceiling fasteners(purchased separately).
Use wall plugs or other securing hardware in conjunction with the ceiling fasteners (purchased separately).
(1) Mark the centers of the hole.
(2) Use a 5/16" Drill Bit to make this hole.
(3) Use wall plugs if appropriate or other securing hardware in conjunction with the ceiling fasteners (purchased
separately).
(4) Use appropriate screws or other securing hardware in conjunction with the ceiling fasteners (purchased
separately) for attach the Brackets.
8.c
x4
Ø 5/16”
1/4 “
1/4 “
Ø 5/16”
Ø
1
2
3
4
Y
X
Hood X Y
36" 15 3/4" 23 5/8"
48" 15 3/4" 31
5/8"

Faber STRATUS NB Series Specifications

General

Brand	Faber
Model	STRATUS NB Series
Category	Ventilation Hood
Language	English
