Faber STRATUS NB Series User Manual

27
12

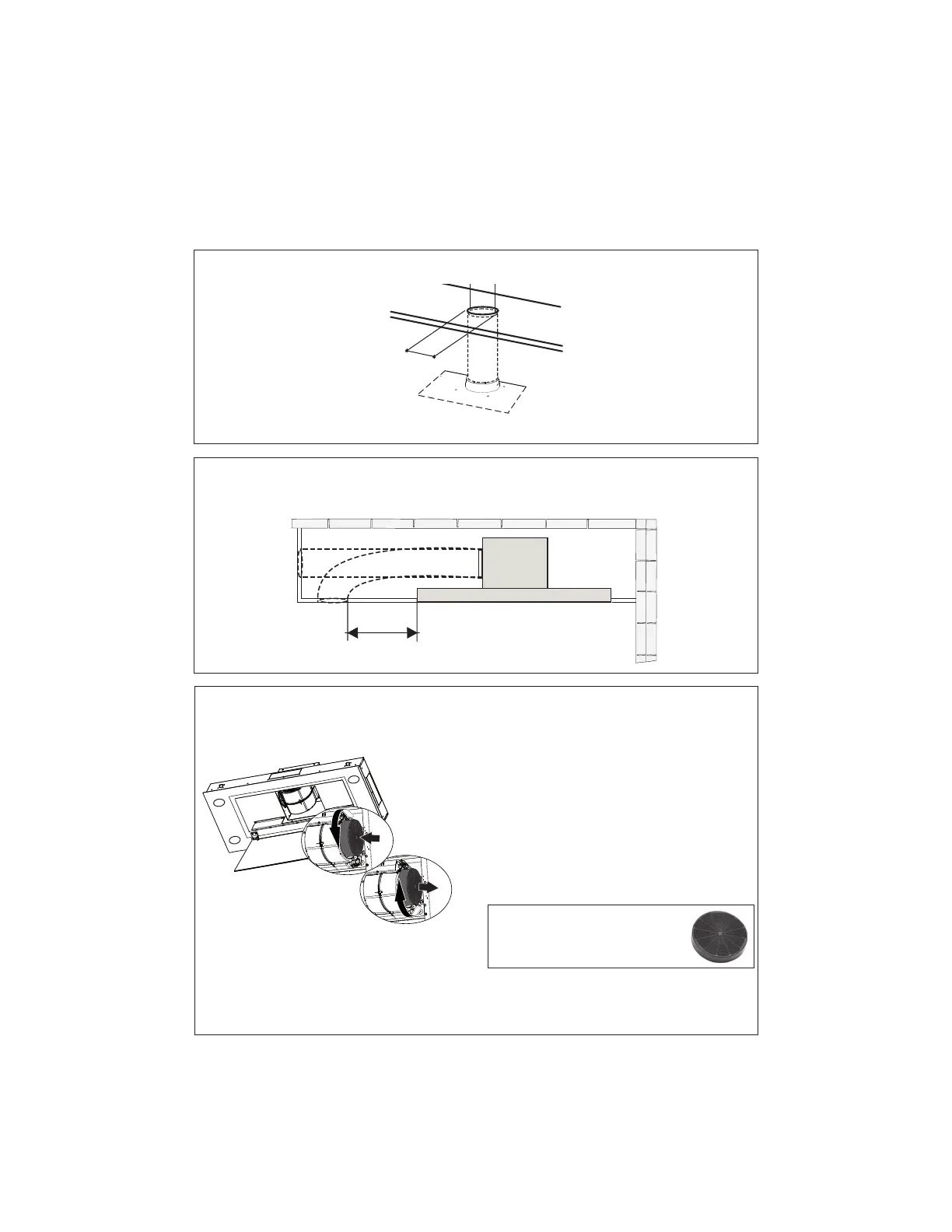

Install Activated Charcoal Filter Kit
• $WWDFKHDFKFKDUFRDO¿OWHUWRWKHEODFNJULGRQHDFKVLGHRI
the blower.
• 3UHVVWKHFKDUFRDO¿OWHUWLJKWO\WRWKHEODFNJULGRQWKHEORZHU
VLGHDQGURWDWHWKH¿OWHUFORFNZLVHWRZDUGVWKHIURQWRIWKH
insert hood) until it locks into place (A).
• Turn counterclockwise (towards the back of the insert hood)
to remove (B).
Required Activated Charcoal Filter
Accessory - sku # -
FILTER1 or
FILTER1LL (purchased separately)


´
Keep the return air duct at least 40" away from the side of the Range Hood.
0LQFP
40"
11a
11b
Information for Recirculation Hole
Recirculation Hole
Non Ducted - Recirculation Options
A
B
