Faber STRATUS NB Series User Manual

29

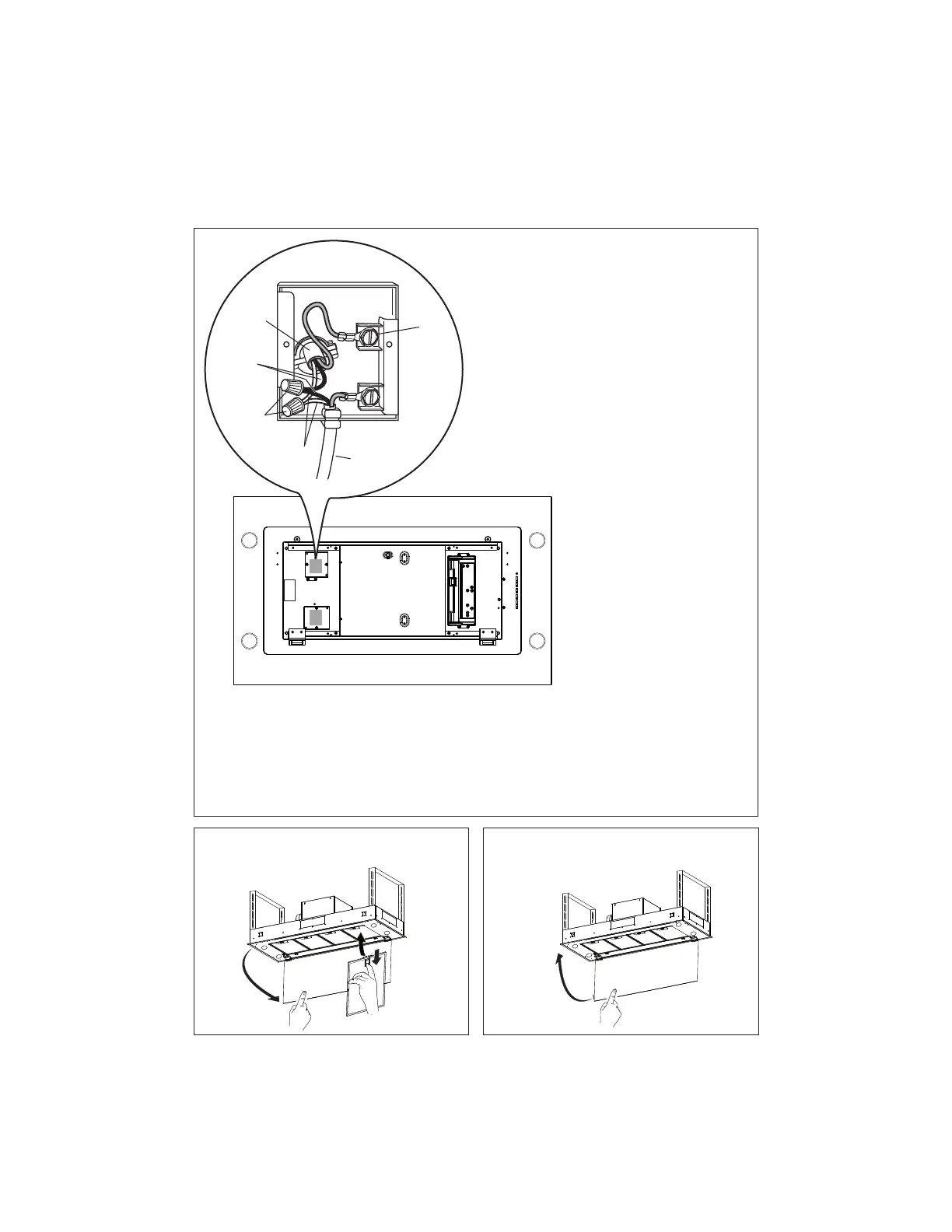

Installation Of House Power
:LULQJ%R[&RQQHFWLRQ
1. Remove the cover from the
¿HOGZLULQJFRPSDUWPHQW'2
NOT turn on the power until
installation is complete!
2. Connect the Power Supply
Cable to the Range Hood.
3. Connect the Green (Green
and Yellow) ground wire
under the Green grounding
screw.
4. Attach the White lead of the
power supply to the White
lead of the Range Hood
with a twist-on type wire
connector.
5. Attach the Black lead of the
power supply to the Black
lead of the Range Hood
with a twist-on type wire
connector.
6. Replace the Wiring Box 1
FRYHUDQGWKHJUHDVH¿OWHUV
7. Check the Wiring Diagram.
A. Home power supply cable.
B. Black wires.
C. UL listed wire connectors.
D. White wires.
(*UHHQRUEDUHJURXQGZLUHIURPKRPHSRZHUVXSSO\WREHFRQQHFWHGWRJUHHQJURXQGVFUHZ
F. Range hood power supply cable.
14
E
A
F
D
C
B
1615
&ORVHWKH¿OWHUFRYHUSDQHO5HSODFHWKHJUHDVH¿OWHUV
1
2
HOUSE WIRING BOX CONNECTION
Wiring House Power to the Hood
