Fac C3 - Page 37

35
START
STOP
T
N.
C
1
2
O.
N.
U
N
L
V
W
O.
1 2
EN
Line 220V-50Hz
MOTOR
Three-phase
230V
Magnetic sensor
CONNECTOR
Luminous
indicator light
Potentiometer
Red
Blue
Yellow
Black

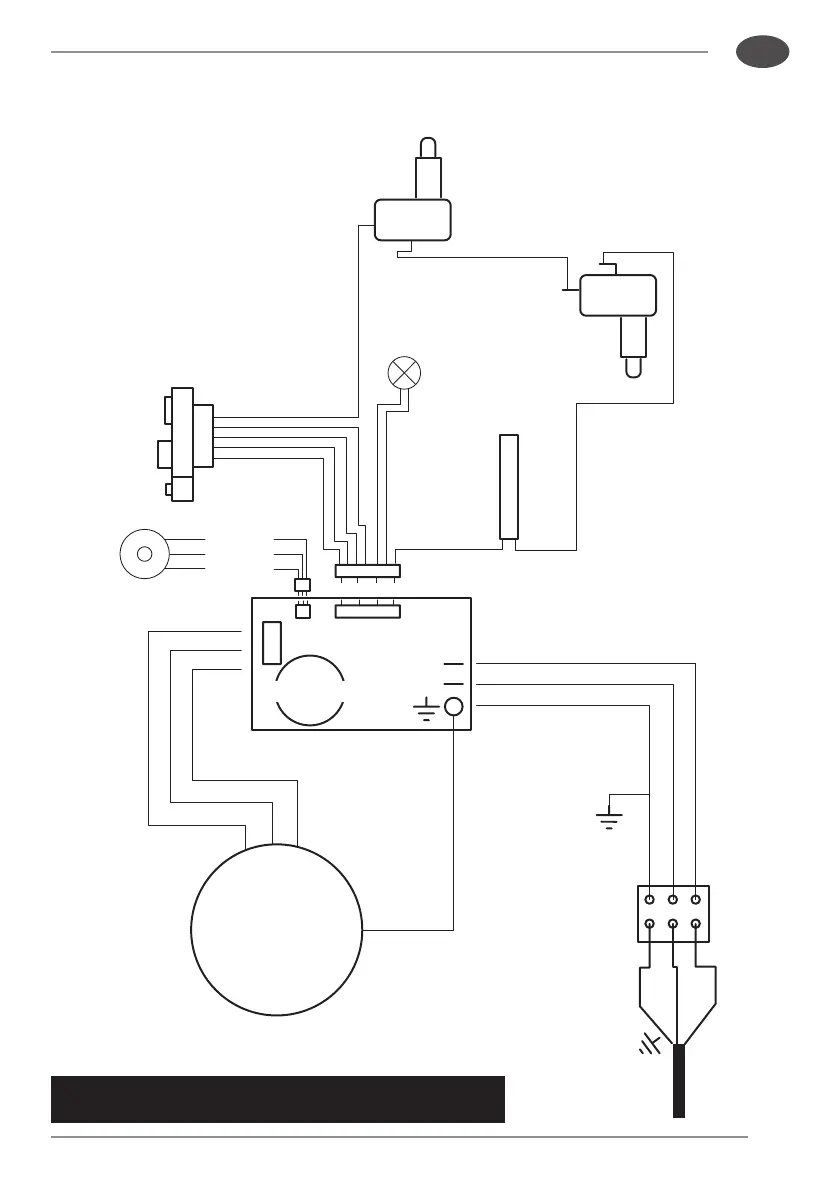

WIRING DIAGRAM
CUTTER C5 / 8 Litre with speed changer
Only for personnel authorized by the manufacturer
Condensatore
POT BOTTOM MICRO-SWITCH
PENTOLA
POT PIN MICRO-SWITCH
PENTOLA
