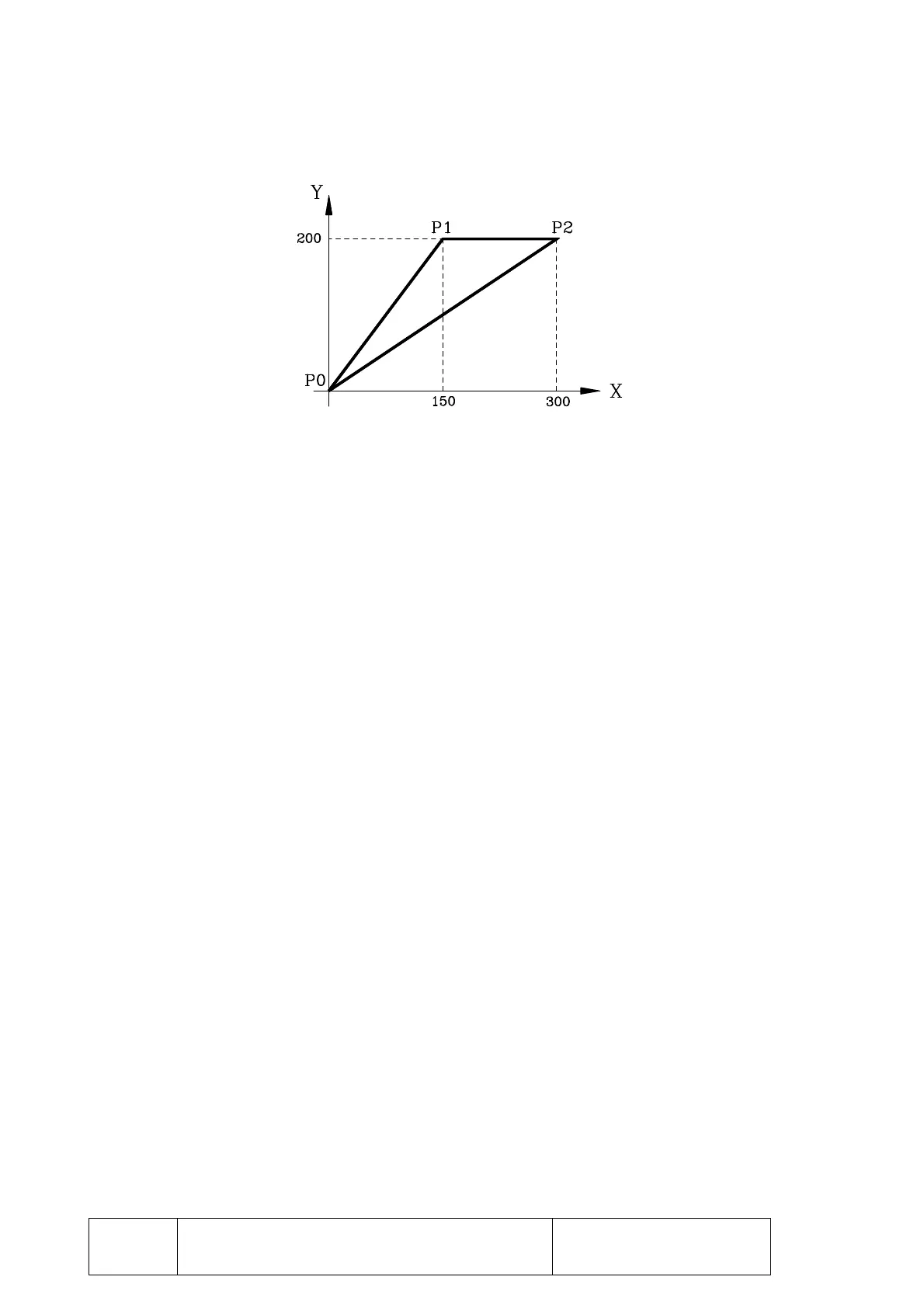

Programming example taking P0 (0,0) as starting point.
Program in absolute coordinates (G90) N250G90 X0 Y0 Point P0
N251 X150 Y200 Point P1
N252 X300 Point P2
N253 X0 Y0 Point P0
Program in incremental coordinates (G91) N250G90 X0 Y0 Point P0
N251G91 X150 Y200 Point P1
N252 X150 Point P2
N253 X-300 Y-200 Point P0
