SHIFTER CALIBRATION
5.5
In order to enter the H-pattern shifter calibration mode, press the button
combination as described in the quick guide of the attached Fanatec
steering wheel while an H-pattern shifter is connected.
Put the H-pattern shifter lever into the position shown on the steering wheel
display and acknowledge each gear position by pressing the indicated
button for the attached steering wheel to get to the next one.

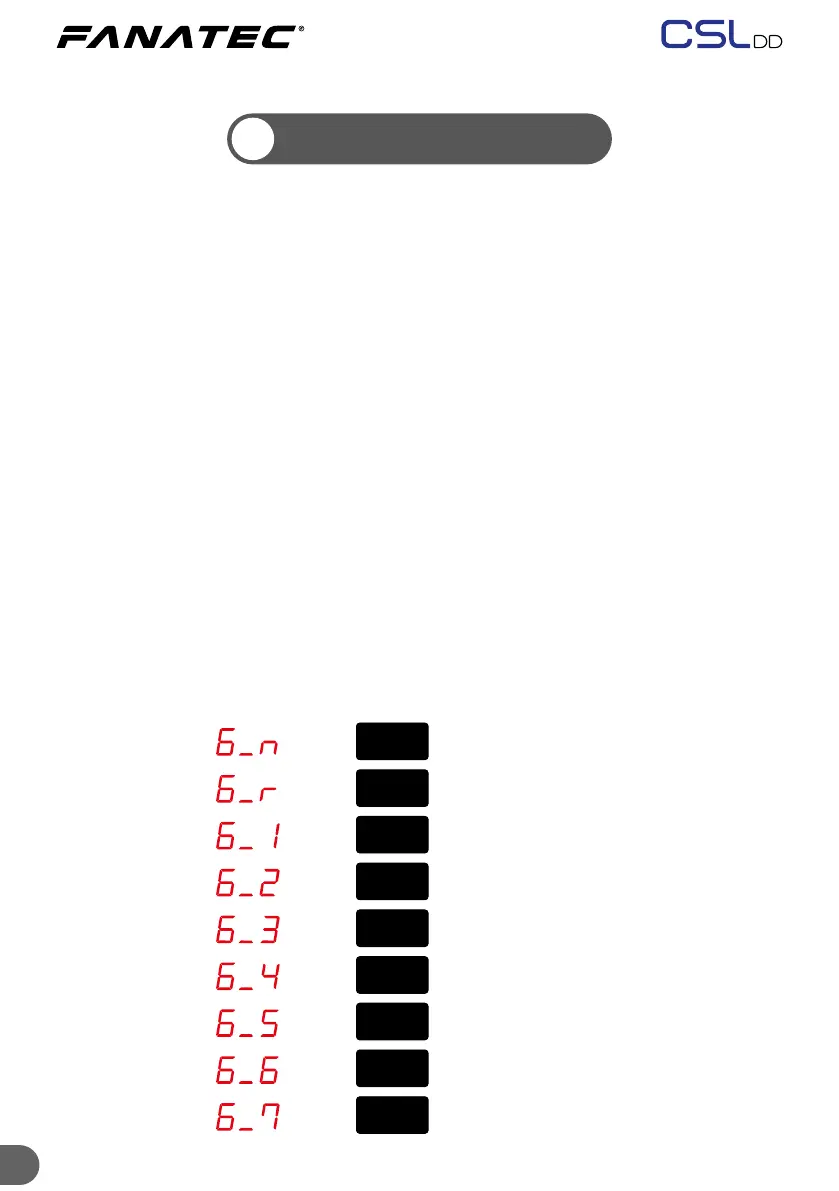

The images shown below are from the LED and OLED displays of Fanatec
steering wheels:
= Neutral Position
= Reverse Gear
= 1st Gear
= 2nd Gear
= 3rd Gear
= 4th Gear
= 5th Gear
= 6th Gear
= 7th Gear
NOTE: Every Fanatec steering wheel has a specic button combination in
order to perform a shifter calibration. Please refer to your steering wheel
quick guide in order to see which button combination is required. Shifter
calibration can also be performed in the PC driver. After a rmware update
has been performed, the wheel base will request the shifter calibration
automatically as soon as a non-calibrated H-pattern shifter is connected
and detected. The menu will guide you through the calibration steps as
described below.
OLED:
7-Segment LED:
GEAR N
SET GEAR
PRESS P
GEAR R
SET GEAR
PRESS P
GEAR 1
SET GEAR
PRESS P
GEAR 2
SET GEAR
PRESS P
GEAR 3
SET GEAR
PRESS P
GEAR 4
SET GEAR
PRESS P
GEAR 5
SET GEAR
PRESS P
GEAR 6
SET GEAR
PRESS P
GEAR 7
SET GEAR
PRESS P
