How to Wire Your Ceiling Fan
10
MAIN FUSE BOX
Figure 2
Figure 3

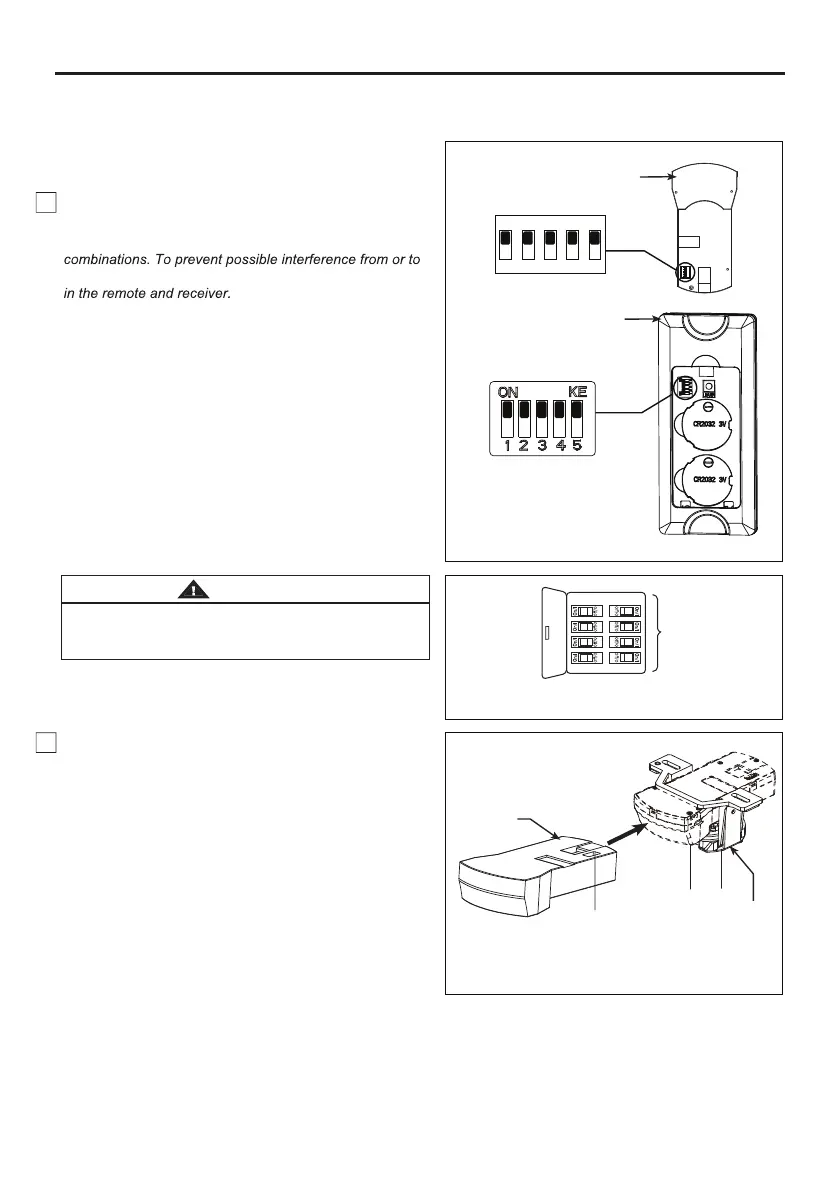

1. To set the code on receiver unit, slide dip switches to
the same positions as set on the remote control. (Figure 1)
NOTE: The remote unit has 32 different code
other remote units, simply change the combination code
NOTE: Factory setting is all up. Do not use this position.
2. Slide the receiver into the hanger bracket before wiring
as shown in figure 3.
Hanger Bracket
Receiver
Dip Switch
NOTE: Supply wires
omitted for clarity
If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
(Figure 2)
Figure 1
Dip Switch
ON
1 2 3 4 5
Receiver
Remote Control
Dip Switch
NOTE: If fan or supply wires are different colors than
indicated, have this unit installed by a qualified electrician.
To Next Page
