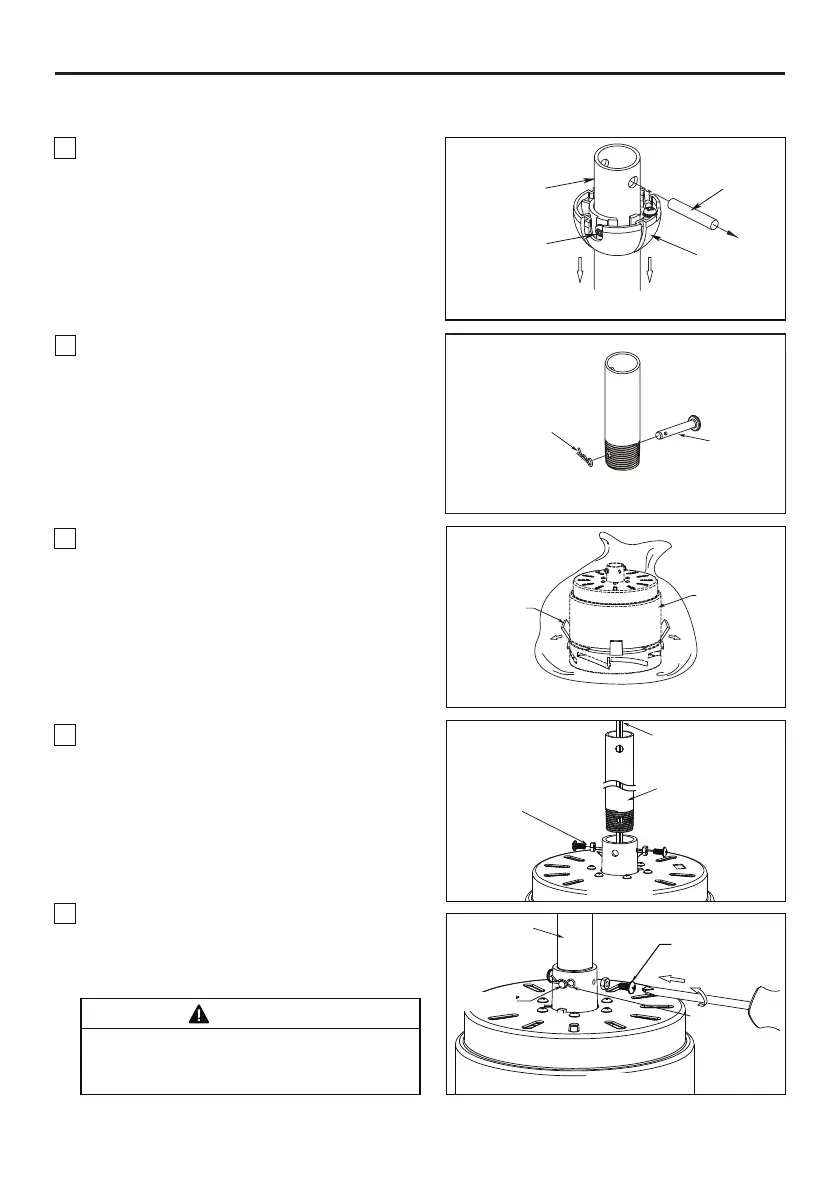

1. Remove the hanger ball portion from the downrod/
hanger ball assembly by loosening the set screw in
the hanger ball until the ball falls freely down the
downrod. Remove the pin from the downrod, then
remove the hanger ball. Retain the pin and hanger ball
for reinstallation in Step 7. (Figure 1)
Figure 1
3. Remove the three stabilizer tabs and plastic bag
from the motor. Discard the stabilizer tabs. (Figure 3)
2. Remove the hairpin clip and clevis pin from the
bottom of the downrod. Retain the pin and clip for
reinstallation in Step 5. (Figure 2)
Figure 2
WARNING
It is critical that the clevis pin in the downrod support
is properly installed and the set screws and nuts are
securely tightened. Failure to do so could result in the
fan falling.
5. Thread downrod into the downrod support on top of
the motor. Install the clevis pin by aligning the holes
in the downrod support with holes in the downrod.
Secure clevis pin with hairpin clip. Tighten the two set
screws with nuts in the downrod support. (Figure 5)
How to Assemble Your Ceiling Fan
7
Hairpin
Clip
Clevis Pin
Downrod
Set Screws (2)
Downrod
Set Screws and
Locking Nuts (2)
Hairpin Clip
Figure 4
Clevis Pin
Figure 3
Stabilizer
Tabs
Motor
Assembly
Figure 5
Pin
Downrod
Hanger Ball
Set Screw
Brown, Blue, Red,
Gray and Yellow wires
4. Loosen the two set screws and locking nuts in
the downrod support of the motor assembly. Route
the brown, blue, red, gray and yellow wires through
the downrod. (Figure 4)
