Light Kit
LED Assembly
Figure 5
LED Assembly
Figure 4
Motor
Assembly

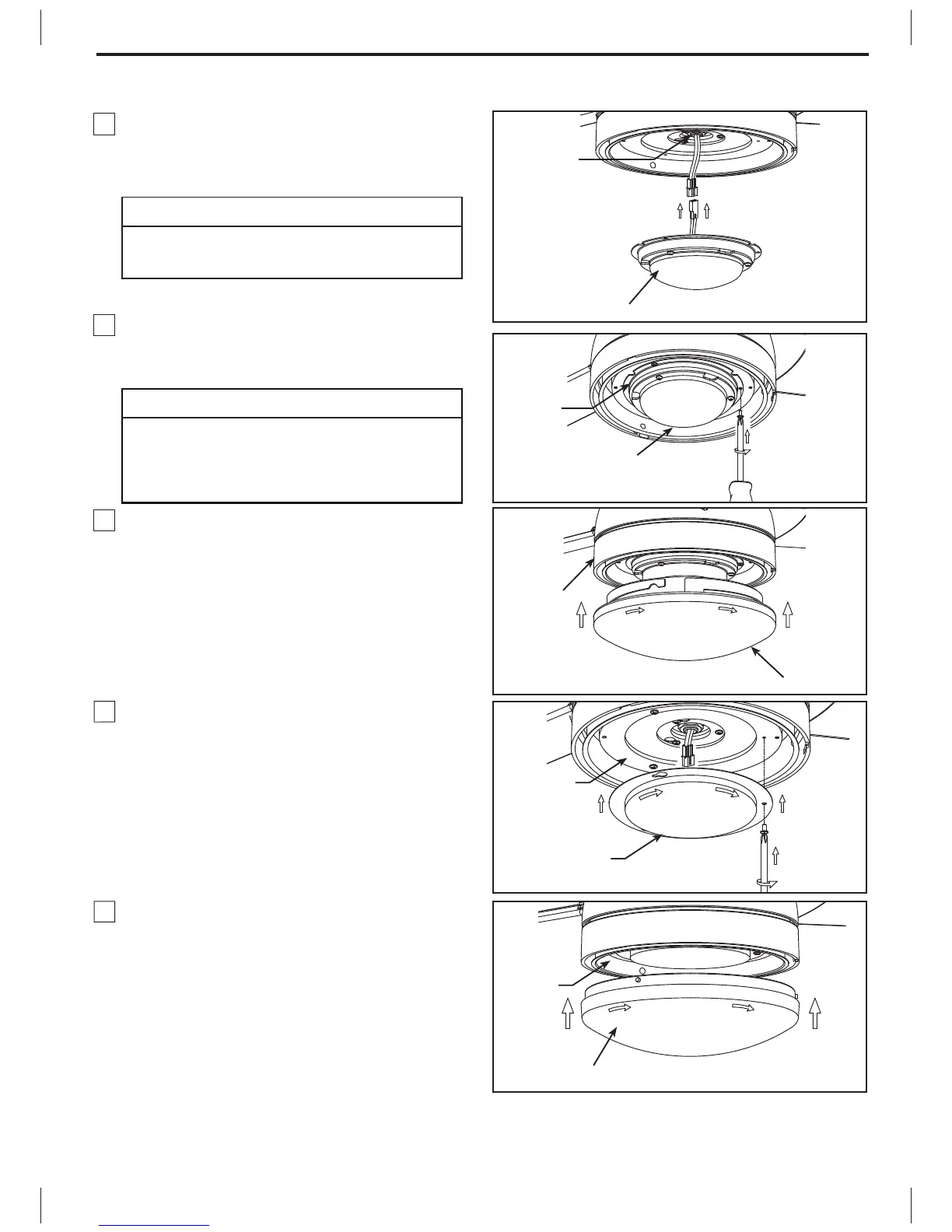

4. (Option A--for use with light kit)
Connect the 2 pin connectors from the LED assembly
to the 2 pin connectors from motor assembly.
(Figure 4 )
5. Assemble the LED assembly to the light kit using
the two key slots and replace the third screw and
securely tighten all three screws. (Figure 5 )
The light source is designed for this specific
application and can overheat if serviced by untrained
personnel. If any servicing is required, the product
should be returned to an authorized service facility
for examination or repair.
CAUTION
To reduce the risk of electric shock, disconnect the
electrical supply circult to the fan before installing
light kit.
CAUTION
6. Secure the glass to the light kit by twisting in a
clockwise direction. Do not over-tighten. (Figure 6)
How to Assemble Your Light Kit (continued)
10
Glass
Light Kit
Figure 6
7.
(Option B--for use with plastic cap)
Assemble the light cap to the
light kit
using the
preousily removed screws and securely tighten all
three screws. (Figure 7)
8.
Assemble the plastic cap to the light kit by twisting in
a clockwise direction. (Figure 8)
Light Kit
Light Cap
Figure 7
Plastic Cap
Light Kit
Figure 8
