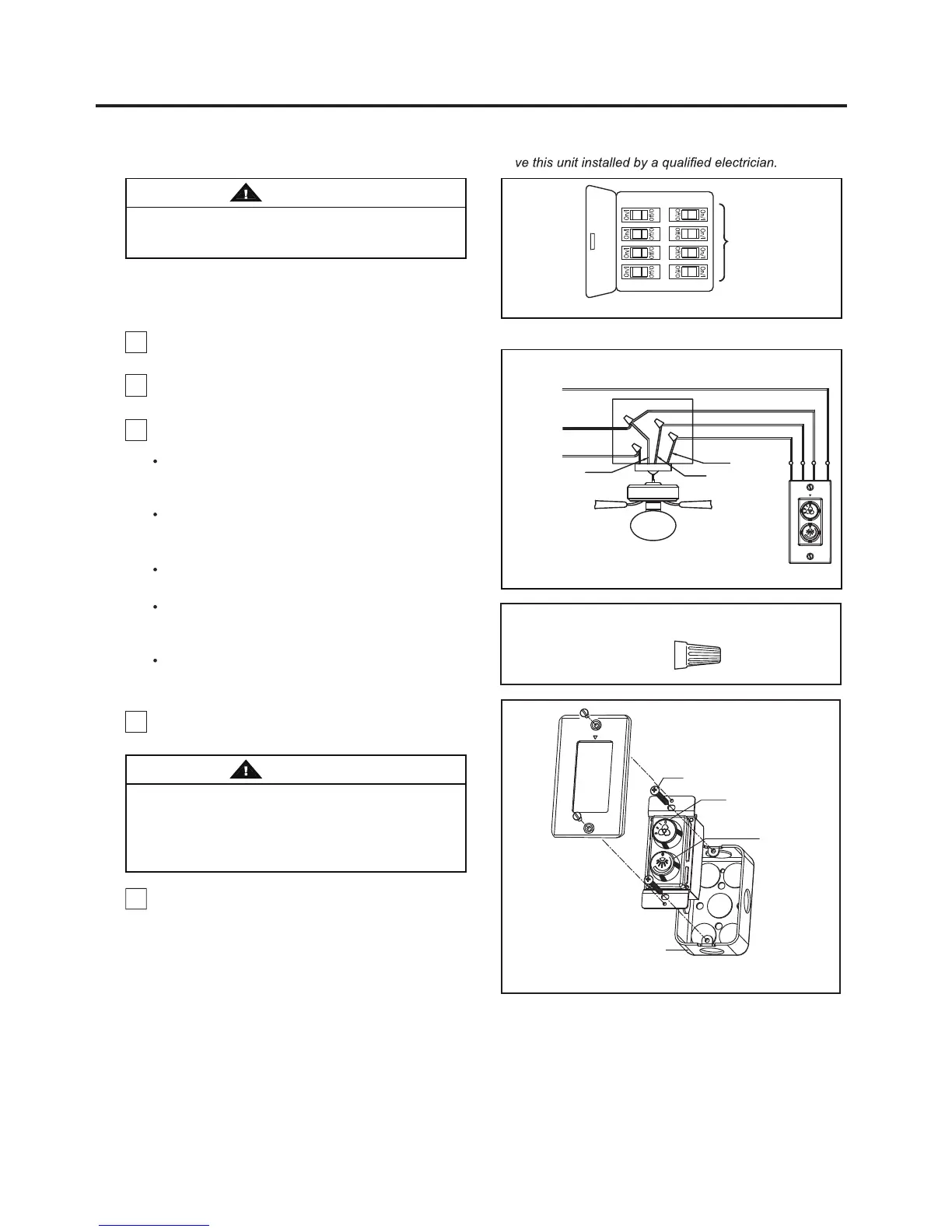

Fanimation FP6729 series User Manual

x 4WIRE
CONNECTORS
HARDWARE USED:
7
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
(Figure 1).
WARNING
WARNING
MAIN FUSE BOX
Figure 1
Figure 2
NOTE:
If you are not sure if the outlet box is
grounded, contact a licensed electrician for advice, as
it must be grounded for safe operation.
1. Disconnect the power and remove the existing
wall plate and switch.
2. Set the knob and light switch of the wall-mounted
control in the off (0) position.
3. Make wire connections and secure with wire nuts
supplied. (Figure 2)
Connect the Black wire (AC IN L) from the
wall-mounted control with the wire from the A. C.
power supply.
Connect the White wire from the ceiling fan to
the A. C. power supply.
Connect the Black wire (To Motor L) from the
wall-mounted control with the Black wire from the
ceiling fan.
Connect the Blue wire (To Light) from the
wall-mounted control with the Blue wire from the
ceiling fan.
Connect the green/yellow wire from the
wall-mounted control with ceiling fan and ground
wire from the A. C. power supply.
4. Carefully push all connected wires inside wall
switch box.
NOTE: If fan or supply wires are different colors than indicated, ha
Check to see that all connections are tight,
including ground, and that no bare wire is visible at
the wire connectors, except for the ground wire. Do
not operate fan unless blades are in place. Noise
and fan damage could result.
Black
Black
Black
Black
White
Ground
Green
Blue
Blue Green
120V AC
SUPPLY
SOURCE
AC IN L
To Light
To Motor L
Figure 3
Light Switch
Screw
Fan Speed
Switch
Outlet Box
5 . Secure the wall-mounted control to the outlet box
with two screws provided. Then, the face plate
attaches the wall control with two painted screws.
(Figure 3)
How to Wire Your Ceiling Fan - Wall Control
