NOTE: This step is applicable after the neccessary
wiring is completed.

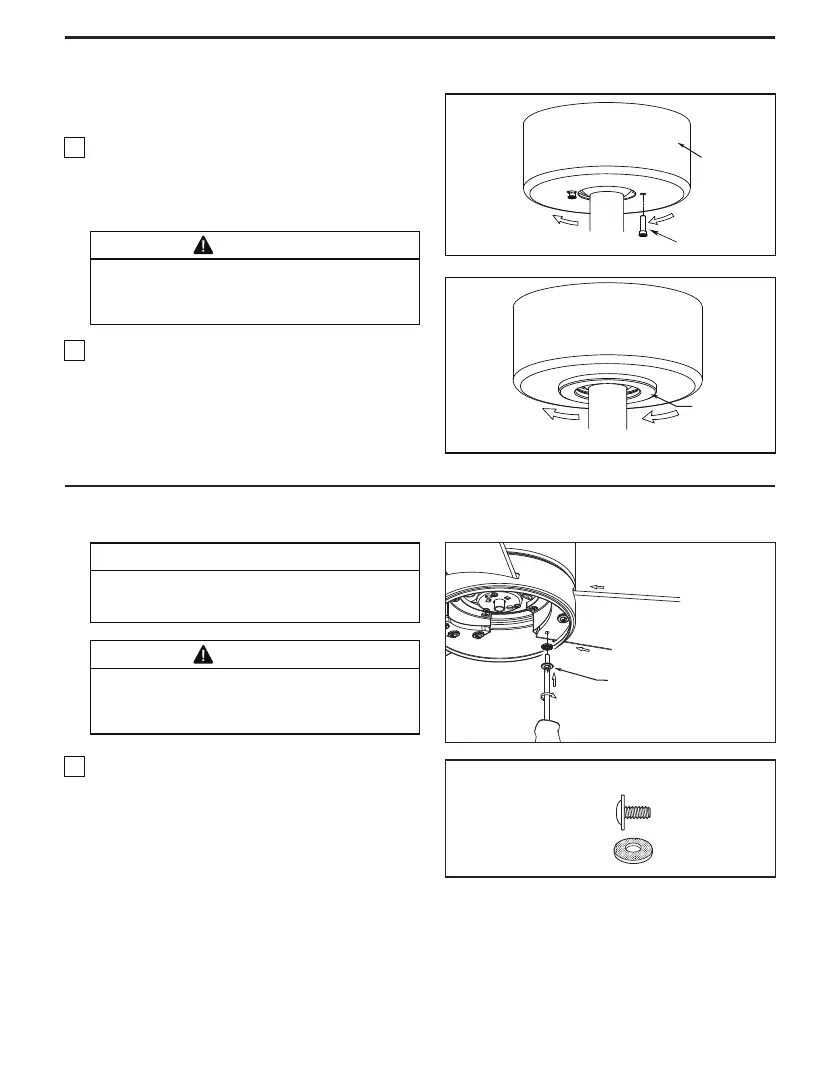

How to Install Your Canopy Housing
Shoulder Screw
1. Assemble canopy by rotating key slot in canopy
over shoulder screw in hanger bracket, taking care not
to pinch the wires. Tighten shoulder screw. Fully
assemble and tighten second shoulder screw that was
previously removed. (Figure 1)
2. Securely attach and tighten the canopy screw cover
over the shoulder screws in the hanger bracket
utilizing the key slot twist-lock feature. (Figure 2)
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy
housing and not pinched between the housing and the
ceiling.
11
Canopy Screw
Cover
Ceiling
Canopy
Figure 1
Figure 2
Figure 1
How to Assemble Your Ceiling Fan Blades
x 9
x 9Fiber Washers
3/16”-24
Washer Head
Screws
HARDWARE USED:
3/16”-24 Washer Head Screws
with Fiber Washers
(3 per blade)
INSTALLATION NOTE
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled may
result in damage to the fan blades.
WARNING
To reduce the risk of personal injury, do not bend the
blades when installing, balancing or cleaning the fan.
Do not insert foreign objects in between the rotating
blades.
1. Carefully slide the blade through the slot as shown.
Securely fasten the three blades with washer head
screws with fiber washers. Do not over-tighten.
(Figure 1)
