Fanimation PYLON LP8277 Series - Exploded View of Fan Components

18
PYLON
™
Model LP8277**

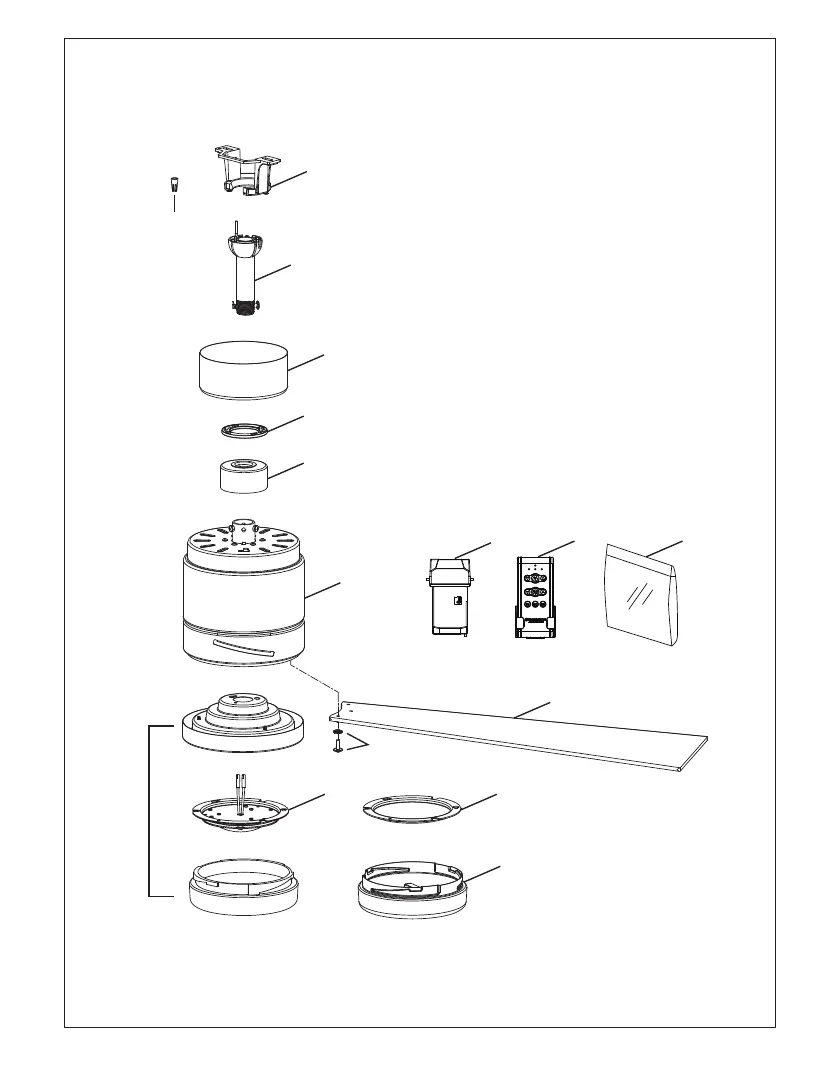

Exploded-View Illustration
1
2
3
4
5
6
7
14
14
NOTE: The illustration shown is not to scale or its actual configuration may vary.
Product/parts are subject to change without notice.
