Exhito series
Echos series
230V
127V
0
PRS210
1443ED
A
1P
HP
4P
1M
HM
F
4M
7
X
10
X
Y
H
F
4
PC
A1
P
10
X
Y
H
F
4
PC
P
A1
CompactCompact
Compact series

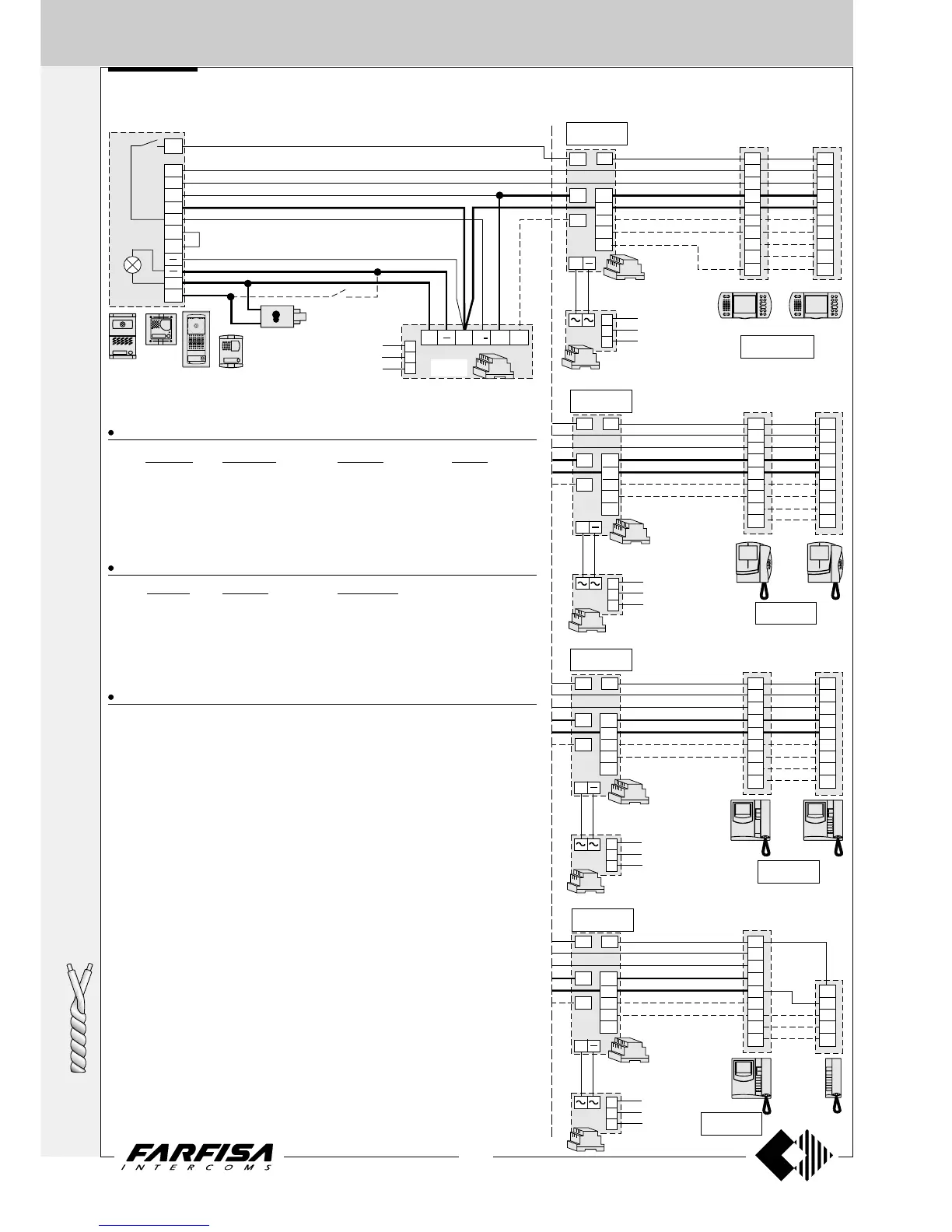

ONE-WAY VIDEOINTERCOM SYSTEM WITH INTERCOMMUNICATING SERVICE BETWEEN 2 VIDEOINTERCOMS
J1= 2-3
J1= 2-3
J1= 2-3
EXTERNAL DOOR STATIONS
series
AGORA' PROFILO MATRIX MODY
1 AG100V 1 PL71 1 MA71 1 MD72
1 AG21 1 PL81 1 MAS61 (
1
)1MD82
1 AG20 1 PL91 * 1 MA91 * 1 MD92 *
1 AG40CED 1 PL41PCED 1 MAS43CED 1 MD11ED
PL41PED MAS43ED 1 MD41D
INTERNAL STATIONS
series
ECHOS EXHITO COMPACT
2 EH9161CT 2 EX3100C 2 KM8111CW
EH9161CW EX3160C KM8111W
2 9083 EX3160 2 WB8111
2 WA9100T-W 2 WB3161
2 TA9160 2 TA3160
VARIOUS ARTICLES
1 1181E Timed power-supply
1 1443ED Switcher module for intercommunicating system
1 PRS210 Transformer
1 PA ** Door release push-button (optional)
1 SE ** Electric door lock (12VAC-1A)
(
1
) Or MA61.
* Rain shelters are used instead of back boxes and hood covers.
** Articles not supplied by ACI Farfisa.
Working instructions. See page 52.
Notes
- Move jumper J1, on the wall brackets WB3161 and WB8111 from position 2-3 to
position 1-2
- Move jumper J12, on the back of Echos videointercoms to short circuits pin 1-2.
- Set jumper J1, inside art.1443ED to position 2-3.
- Instead a videointercom it is possible to install an intercom EX311, EX321 or
KM811 wired as reported in the last example of this page.
- Door station AG100V do not have the terminal "E" because the requested
connection is automatically done inserting the pre-assembled cable which comes
with the product (see drawing 5a on page 18)
- For audio compatibility we do not suggest to connect door stations MODY series
with internal devices ECHOS series.
- For wires dimensioning refer to the installation instructions and table on page 50.
Si 411R/41 Additional diagrams for one-way intercommunicating systems
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
