C50 Card Printer Service Manual PLT-01278 rev 1.1
HID GLOBAL CONFIDENTIAL AND/OR PROPRIETARY INFORMATION. This document contains confidential and/or proprietary information,
which may not be duplicated, published, disseminated or disclosed, or used for any purpose, without the written consent of HID Global
Corporation. If you are an unintended recipient of this information or are unwilling to accept the above restrictions, please immediately return
this document to HID Global Corporation, 15370 Barranca Pkwy, Irvine, CA 92618-3106..

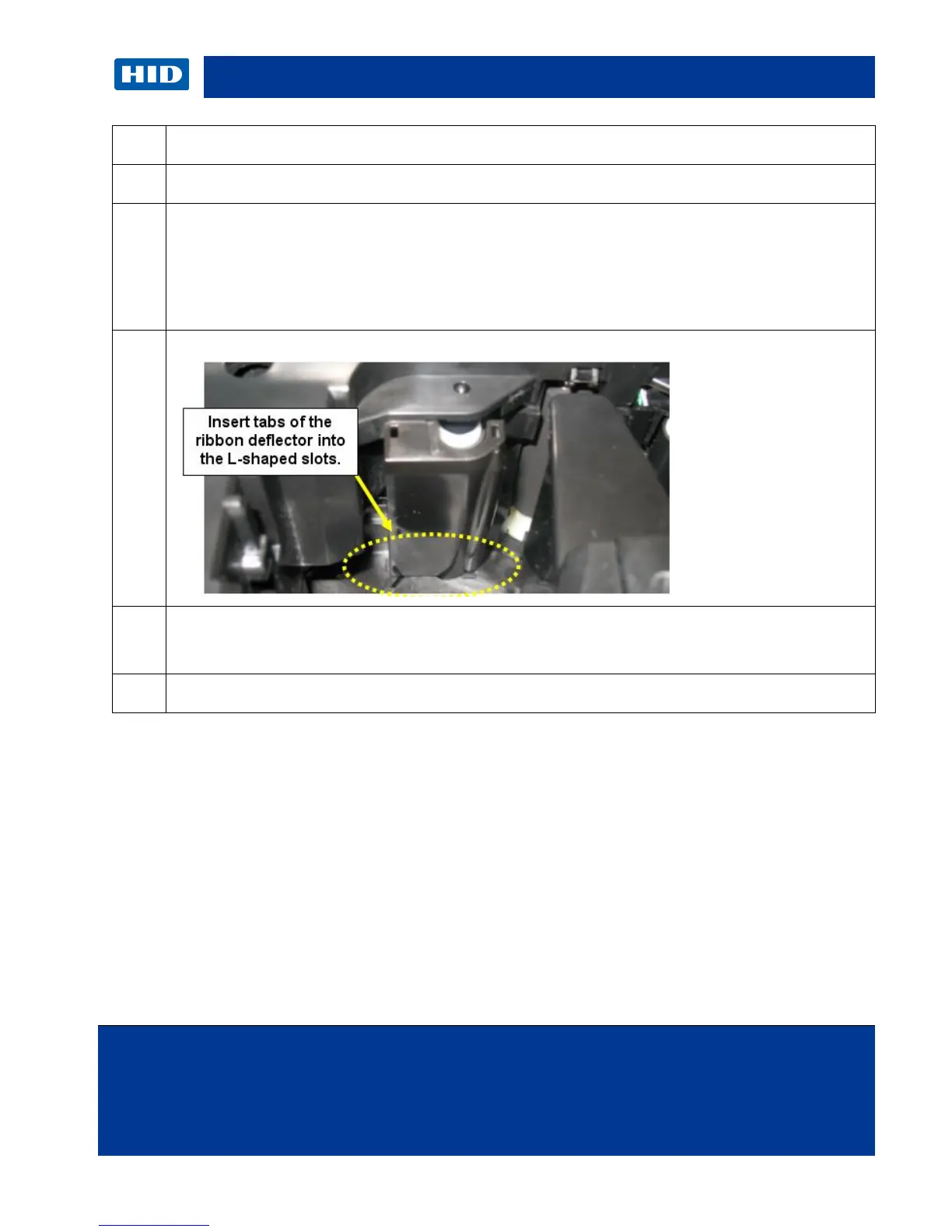

Pull the Mag Roller out from the front side of the printer.
Replace with the new roller.
Install the Mag Gear from the back to hold the roller in place.
Make sure roller sits in front tab (hidden) in front sideplate.
Make sure tabs line up and snap into place. Wiggle in place.
Install the Ribbon Deflector Plate.
Re-install stepper motor assembly
(refer to Stepper Motor D930028 procedure)
